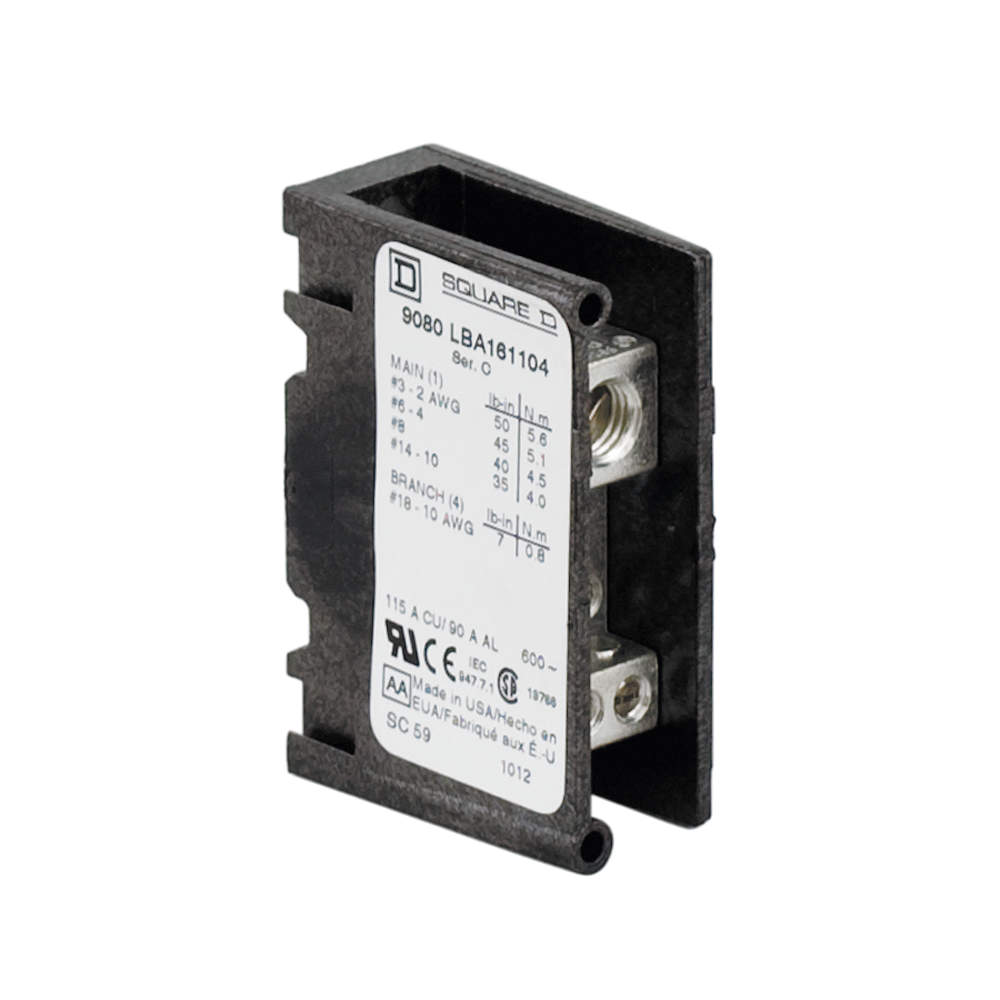

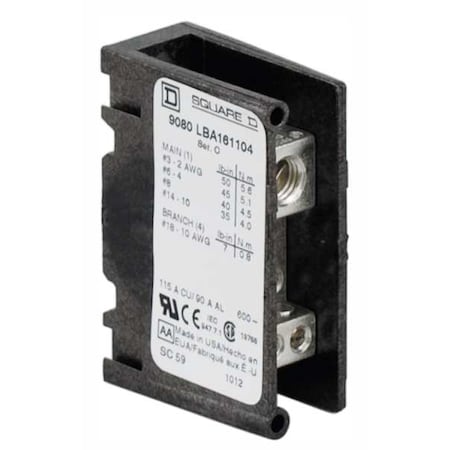

Square D by Schneider Electric 9080LBA161104

B00819T9KY

Min Pwr Dist Block, 115A, 1P, 14-2 AWG, 600V

Min Pwr Dist Block, 115A, 1P, 14-2 AWG, 600Vzoom

Attributes

Key Value
Amperage Rating115A
Application9080LB,9080LB11
BrandSquare D by Schneider E.
Catalog Number9080LBA161104
CategoryConnectors, Interconnec.
ConnectionTin plated aluminium lu.
Country of OriginUnited States, US - Uni.
Current Rating (Amps)115 A
Depth1.53 in
DescriptionPWR DISTR BLK 600V 115A
Detailed Description1 Pole Power Distributi.
Digi-Key Part Number4008-9080LBA161104-ND
ECCNEAR99
For Conductor MaterialAluminum, Copper
For Line Aluminum Wire .2 AWG
For Line Aluminum Wire .14 AWG
For Line Copper Wire Si.2 AWG
For Line Copper Wire Si.14 AWG
For Load Aluminum Wire .10 AWG
For Load Aluminum Wire .18 AWG
For Load Copper Wire Si.10 AWG
For Load Copper Wire Si.18 AWG
Housing MaterialThermoplastic
ItemMiniature Distribution .
Item TypeMiniature Power Distrib.
Length2.29 in
Length (Straight Wirewa.2.29 in
Line Connections/Pole1
Line Side Connection Ty.Screw Connection, Lug
Line Side Connections P.1
Line Side Wire Size Ran.14 AWG - 2 AWG
Line Side Wire/Stud Size2-14 AWG
Load Connections/Pole4
Load Side Connection Ty.Screw Connection, Lug
Load Side Connections P.4
Load Side Wire/Stud Size10-18 AWG
Made in USAYes
ManufacturerSchneider Electric
Manufacturer Product Nu.9080LBA161104
Manufacturer Standard L.1 Weeks
MaterialThermoplastic block
Max. Amps115 A
Maximum Current - Alumi.90 A
Maximum Current - Coppe.115 A
Maximum Operating Tempe.257 Degrees F
Maximum Voltage600V AC/DC
MfrSchneider Electric
Minimum Operating Tempe.-40 Degrees F
MountingSurface
Mounting TypeSurface Mount
Number of Circuits1
Number of Poles1
Overall Depth1.62 in
Overall Length2.29 in
Overall Width0.85 in
PackageBox
Packaging1 Each
Power Distribution Bloc.Open
Primary Connections/Pole1
Primary Wire Range14 to 2 AWG
Primary Wire Range (AWG)14 to 2 AWG
Product StatusActive
RoHS CompliantYes
Secondary Connection/Po.4
Secondary Wire Range18 to 10 AWG
Secondary Wire Range (A.18 to 10 AWG
SeriesSquare D
Size1.62
Special Features18 Months Warranty, Sur.
StandardCE-CSA FILE 70361 CLASS.
StandardsCE Marked, CSA File 703.
Terminal MaterialAluminum
TypePower Distribution Block
UNSPSC39121410
UPC785901097280
Voltage - Rated600 V
Voltage Rating600 V AC/DC
Warranty DescriptionContractual Warranty:18.
Width0.83 in
Wire SizeLine 1, AWG 14...AWG 2,.
Wire Strip LengthLine 0.5 in; Load 0.38 .

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
standardelectricsupply.com218703024.061In StockSquare D24.06 @ 1
thumbzoomgordonelectricsupply.com9080LBA16110425.191In Stock10SQUARE D25.19 @ 1
thumbzoomDigi-Key1715272726.241In StockSchneider Electric26.24 @ 1
thumbzoomZoroG353891126.451260Square D0.126.45 @ 1
Graybar9009525430.95681In StockSquare D (Schneider Electric)30.9568 @ 1
thumbzoomNewark17B334332.121In StockSQUARE D BY SCHNEIDER ELECTRIC32.12 @ 1
grainger.caSQD9080LBA16110434.969333081In StockSQUARE D0.134.96933308 @ 1
thumbzoomcrescentelectric.com9124737.3117Square D by Schneider Electric37.31 @ 1
us.rs-online.com7219489037.616Square D37.6 @ 1
thumbzoomsustainablesupply.comC121275245.061In StockSquare D0.145.06 @ 1
thumbzoomRaptor SuppliesAG7FWA47.0404351In StockSQUARE D47.040435 @ 1
thumbzoomNational Supply Network6966946350.721In StockSquare D50.72 @ 1
