Square D by Schneider Electric 9080LBA165106

B007FGSG7Q

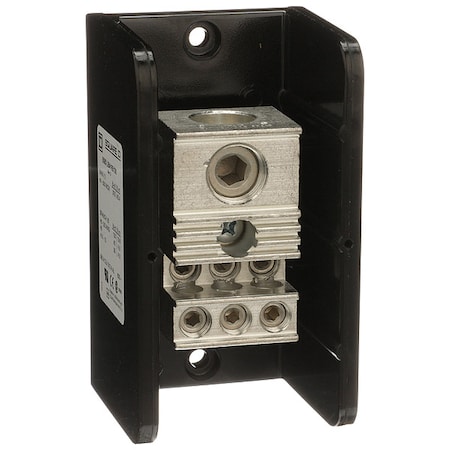

9080LBA165106 SQUARE D POWER DISTRIBUTION BLOCK 600V 380A, 1 500MCM-4 IN, 6 2/0-8 OUT

9080LBA165106 SQUARE D POWER DISTRIBUTION BLOCK 600V 380A, 1 500MCM-4 IN, 6 2/0-8 OUTzoom

Attributes

Key Value
Amperage Rating380A
Application9080LB,9080LB51
BrandSquare D by Schneider E.
Catalog Number9080LBA165106
ConnectionTin plated aluminium lu.
Country of OriginUnited States, US - Uni.
Country of Origin (subj.United States
ECCNEAR99
For Conductor MaterialAluminum, Copper
For Line Aluminum Wire .500 kcmil
For Line Aluminum Wire .4 AWG
For Line Copper Wire Si.500 kcmil
For Line Copper Wire Si.4 AWG
For Load Aluminum Wire .2/0 AWG
For Load Aluminum Wire .14 AWG
For Load Copper Wire Si.10 AWG
For Load Copper Wire Si.14 AWG
Housing ColorBlack
Housing MaterialPhenolic
ItemPower Distribution Block
Item TypePower Distribution Bloc.
Line Connections/Pole1
Line Side Connection Ty.Lug
Line Side Wire Size Ran.4 AWG - 500 kcmil
Load Connections/Pole6
Load Side Connection Ty.Lug
Load Side Wire Range14 AWG - 10 AWG
Made in USAYes
ManufacturerSchneider Electric
MaterialPhenolic block
Maximum Current - Alumi.310 A
Maximum Current - Coppe.380 A
Maximum Operating Tempe.302 Degrees F
Maximum Voltage600 V AC/DC
Minimum Operating Tempe.-40 Degrees F
MountingSurface
Number of Circuits7
Number of Poles1
Overall Depth3.13 in
Overall Length5.5 in
Overall Width3.17 in
Packaging1 Each
Power Distribution Bloc.Open
Primary Wire Range4 AWG to 500 kcmil (Alu.
RoHS CompliantYes
Secondary Wire Range14 to 2/0 AWG (Aluminum.
Size3.13
Special FeaturesLUGS TIN PLATED ALUMINI.
StandardCE-UL RECOGNIZED E60616.
Terminal MaterialAluminum
UNSPSC39121410
UPC785901097372
Voltage Rating600 V AC/DC
Warranty DescriptionContractual Warranty:18.
Wire SizeLine 1, AWG 4...500 kcm.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG085370698.671In Stock70Square D1.3298.67 @ 1
thumbzoomgordonelectricsupply.com9080LBA165106119.591In Stock10SQUARE D119.59 @ 1
Graybar90095250129.921In StockSquare D (Schneider Electric)129.92 @ 1
thumbzoomsustainablesupply.comC3001591149.491In StockSquare D1.32149.49 @ 1
steinerelectric.com32074150.131In StockSquare D?150.13 @ 1
us.rs-online.com72194895154.621In StockSquare D154.62 @ 1
thumbzoommostelectric.com9080LBA165106157.4511SQUARE D/TELEMECANIQUE157.45 @ 1
thumbzoomcrescentelectric.com168643178.081In StockSquare D by Schneider Electric178.08 @ 1
thumbzoomNational Supply Network69669489199.011In StockSquare D199.01 @ 1
