Square D 9080LBA165208

B00CONCD92

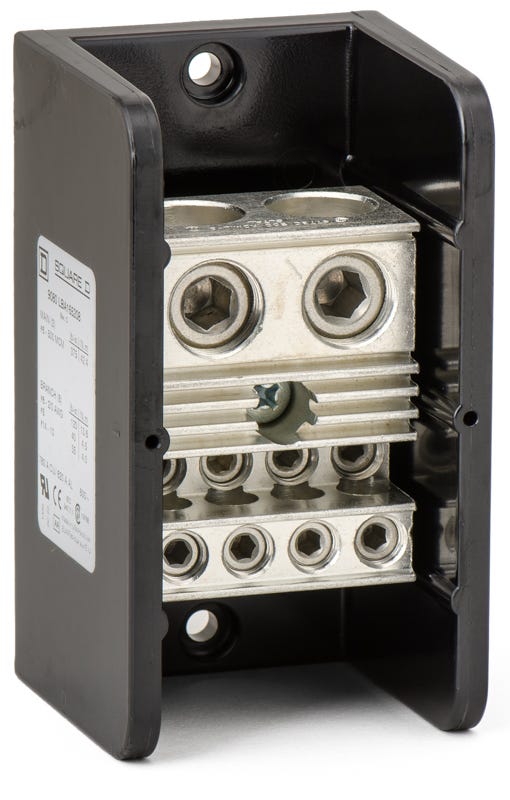

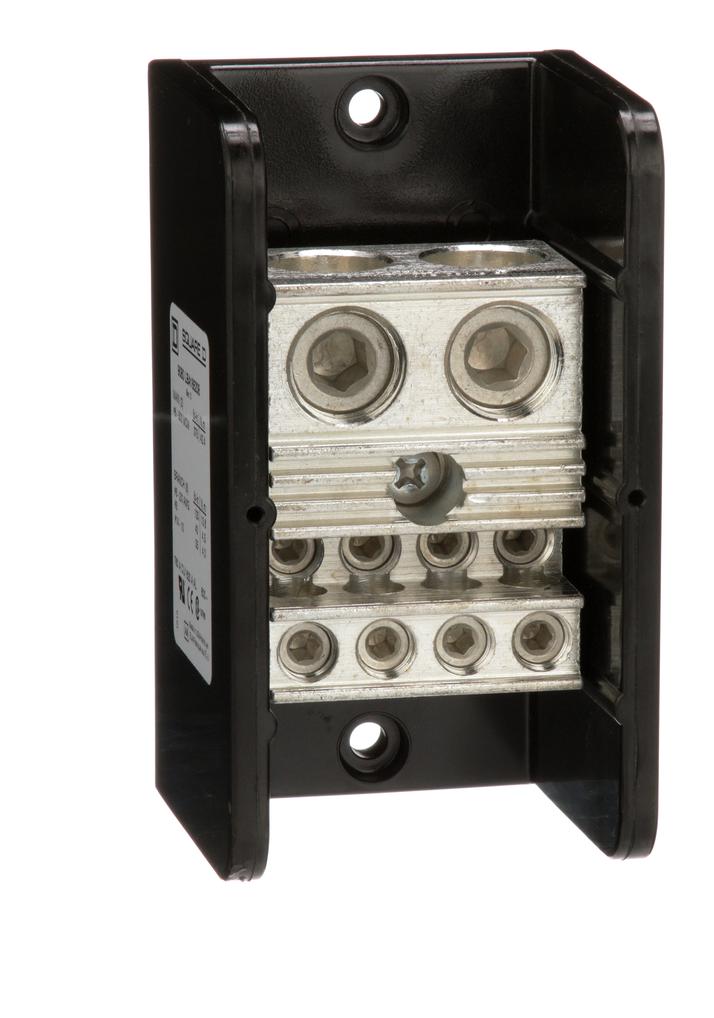

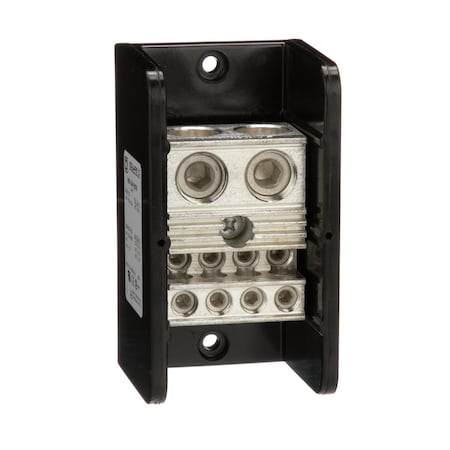

SQUARE D 9080LBA165208 Power Distribution Block 600V 760A

SQUARE D 9080LBA165208 Power Distribution Block 600V 760Azoom

Attributes

Key Value
Amperage Rating760A
BrandSquare D, Square D by S.
Catalog Number9080LBA165208
CategoryConnectors, Interconnec.
ConnectionTin plated aluminium lu.
Country of OriginUnited States, US - Uni.
Current Rating (Amps)760 A
Depth3.13 in
DescriptionPWR DISTR BLK 600V 760A
Detailed Description1 Pole Power Distributi.
Digi-Key Part Number4008-9080LBA165208-ND
ECCNEAR99
For Line Aluminum Wire .500 kcmil
For Line Aluminum Wire .4 AWG
For Line Copper Wire Si.500 kcmil
For Line Copper Wire Si.4 AWG
For Load Aluminum Wire .2/0 AWG
For Load Aluminum Wire .14 AWG
For Load Copper Wire Si.2/0 AWG
For Load Copper Wire Si.14 AWG
Gtin785901097402
ItemPower Distribution Bloc.
Item TypePower Distribution Bloc.
Length5.5 in
Line Side Connection Ty.Screw Connection
Line Side Connections P.2
Line Side Wire Size Ran.4 AWG - 500 kcmil
Line Side Wire/Stud Size500MCM (kcmil) - 4 AWG
Load Side Connection Ty.Screw Connection
Load Side Connections P.8
Load Side Wire/Stud Size2/0-14 AWG
Made in USAYes
ManufacturerSchneider Electric
Manufacturer Product Nu.9080LBA165208
Manufacturer Standard L.1 Weeks
MaterialPhenolic block
MfrSchneider Electric
MountingSurface
Mpn9080LBA165208
Number of Poles1
Overall Depth3.13 in
Overall Length5.5 in
Overall Width3.17 in
PackageBox
Packaging2 per Pack
Power Distribution Bloc.Open
Primary Connections/Pole2
Primary Wire Range (AWG)AWG 4 to 500 kcmil (Cop.
Product StatusActive
Secondary Connection/Po.8
Secondary Wire Range (A.AWG 14 to AWG 2/0 (Copp.
SeriesSquare D, 9080
Size3.13
TypePower Distribution Block
UNSPSC39121410
Upc785901097402
UPC785901097402
Voltage - Rated600 V
Voltage Rating600 V AC/DC, 600V AC/DC
Warranty DescriptionContractual Warranty:18.
Width3.17 in
Wire SizeLine 2, AWG 4...500 kcm.
Wire Strip LengthLoad 0.75 in top; Line .

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomsuperbreakers.com9080LBA16520891.421In StockSquare D91.42 @ 1
standardelectricsupply.com2242703114.811In StockSquare D114.81 @ 1
thumbzoomDigi-Key17170755116.881In StockSchneider Electric116.88 @ 1
thumbzoomZoroG0853730131.991In StockSquare D1.42131.99 @ 1
us.rs-online.com72194899141.111In StockSquare D141.11 @ 1
thumbzoomNewark17B3356147.251In StockSQUARE D BY SCHNEIDER ELECTRIC147.25 @ 1
Graybar90095233147.7281In StockSquare D (Schneider Electric)147.728 @ 1
thumbzoomsustainablesupply.comC3045382151.381In StockSquare D1.42151.38 @ 1
thumbzoomcrescentelectric.com77947178.081In StockSquare D by Schneider Electric178.08 @ 1
thumbzoomNational Supply Network69659183205.41In StockSquare D205.4 @ 1
