Square D 9080LBA165212

B0081A04BQ

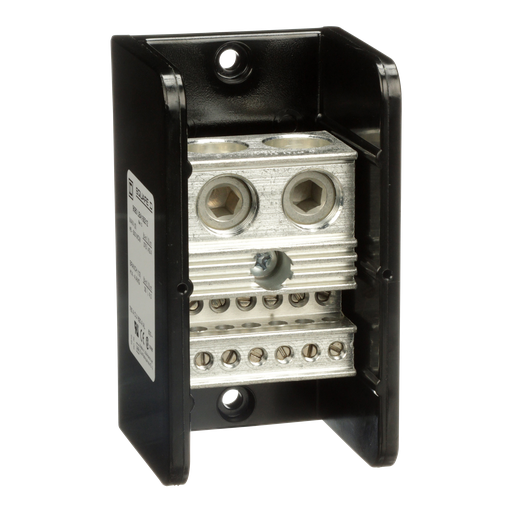

Square D - 9080LBA165212 - Square D 9080LBA165212 Terminal Block Power Distribution Block, 600 V, 760/620 A, 1-Pole, Surface Mount, Phenolic Block

Square D - 9080LBA165212 - Square D 9080LBA165212 Terminal Block Power Distribution Block, 600 V, 760/620 A, 1-Pole, Surface Mount, Phenolic Blockzoom

Attributes

Key Value
[Ics] Rated Service Bre.100 kA UL 508 A
[Ue] Rated Operational .600 V AC/DC
Ambient Air Temperature.-40-302 ?F
Application9080LB,9080LB51
BrandSquare D by Schneider E.
California Proposition .Lead and lead compounds.
Catalog Number9080LBA165212
CategoryConnectors, Interconnec.
China Rohs RegulationPro-active China RoHS d.
ConditionNew
ConnectionTin plated aluminium lu.
Connections - Terminalsload lug 35 lbf.in AWG .
Country of OriginUnited States, US - Uni.
Current Rating (Amps)760 A
Depth3.13 in
DescriptionPWR DISTR BLK 600V 760A
Detailed Description1 Pole Power Distributi.
Digi-Key Part Number4008-9080LBA165212-ND
ECCNEAR99
Electrical Connectiontin plated aluminium lu.
Estimated Lead Time (in.6
Eu Rohs DirectiveCompliant
For Conductor MaterialAluminum, Copper
For Line Aluminum Wire .500 kcmil
For Line Aluminum Wire .4 AWG
For Line Copper Wire Si.500 kcmil
For Line Copper Wire Si.4 AWG
For Load Aluminum Wire .4 AWG
For Load Aluminum Wire .14 AWG
For Load Copper Wire Si.4 AWG
For Load Copper Wire Si.14 AWG
GTIN785901097419
Height5.5 in
Housing MaterialPhenolic
ItemPower Distribution Block
Item TypePower Distribution Bloc.
Line Connections/Pole2
Line Rated Current760-760 A copper || 620.
Line Side Connection Ty.Screw Connection, Lug
Line Side Connections P.2
Line Side Wire/Stud Size500MCM (kcmil) - 4 AWG
Load Connections/Pole12
Load Side Connection Ty.Screw Connection, Lug
Load Side Connections P.12
Load Side Wire/Stud Size4-14 AWG
Made in USAYes
ManufacturerSquare D, Schneider Ele.
Manufacturer Product Nu.9080LBA165212
Manufacturer Standard L.1 Weeks
Materialphenolic block
Maximum Current - Alumi.620 A
Maximum Current - Coppe.760 A
Maximum Operating Tempe.302 Degrees F
Maximum Voltage600V AC/DC
Mercury FreeYes
MfrSchneider Electric
Minimum Operating Tempe.-40 Degrees F
MountingSurface
Mounting Supportsurface mount
Mounting Typesurface mount
Number Of Cablesline 2 , AWG 4...500 kc.
Number of Circuits1
Number of Poles1
Number Of Poles1
Number Of Terminals2 line || 12 load
Overall Depth3.13 in
Overall Length5.5 in
Overall Width3.17 in
PackageBox
Power Distribution Bloc.Open
Primary Wire Range4 AWG to 500 kcmil
Product CertificationsCE || CSA file 70361 cl.
Product Compatibility9080LB51
Product Or Component Ty.Power Distribution Block
Product StatusActive
Range Of Product9080LB
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
RoHS CompliantYes
Rohs Exemption Informat.Yes
Secondary Wire Range14 to 4 AWG
SeriesSquare D
Size3.13 IN,3.17 IN,5.5 IN
Special Features18 Months Warranty, Sur.
StandardCE-CSA FILE 70361 CLASS.
StandardsCE Marked, CSA File 703.
Terminal MaterialAluminum
Toxic Heavy Metal FreeYes
TypePower Distribution Block
UNSPSC39121410
UPC785901097419
Voltage - Rated600 V
Voltage Rating600 V AC/DC
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Weight2.000000
Width3.17 in
Wire SizeLine 2, AWG 4...500 kcm.
Wire Stripping Lengthload 1 in bottom || lin.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomblackhawksupply.com9080LBA16521297.411In StockSquare-D97.41 @ 1
thumbzoomindustrialrefrigerationparts.com9080LBA16521297.91In StockSquare D2.097.9 @ 1
thumbzoomZoroG3529206110.641In Stock45Square D1.5110.64 @ 1
thumbzoomsustainablesupply.comC1212753122.531In StockSquare D1.5122.53 @ 1
thumbzoomDigi-Key17162626125.221In StockSchneider Electric125.22 @ 1
thumbzoomgordonelectricsupply.com9080LBA165212128.091In Stock10SQUARE D128.09 @ 1
thumbzoommayerelectric.comSQD9080LBA165212134.881In StockSQUARE D134.88 @ 1
grainger.caSQD9080LBA165212137.816043281In StockSQUARE D1.5137.81604328 @ 1
Graybar90095234151.21In StockSquare D (Schneider Electric)151.2 @ 1
thumbzoomNewark17B3357157.771In StockSQUARE D BY SCHNEIDER ELECTRIC157.77 @ 1
steinerelectric.com280235160.841In StockSquare D?160.84 @ 1
us.rs-online.com72194900169.381In StockSquare D169.38 @ 1
thumbzoomcrescentelectric.com62066190.791In StockSquare D by Schneider Electric190.79 @ 1
thumbzoomNational Supply Network69659167210.291In StockSquare D210.29 @ 1
thumbzoomRaptor SuppliesAG7FWB222.52025251In StockSQUARE D222.5202525 @ 1
