Square D BDL36100LU

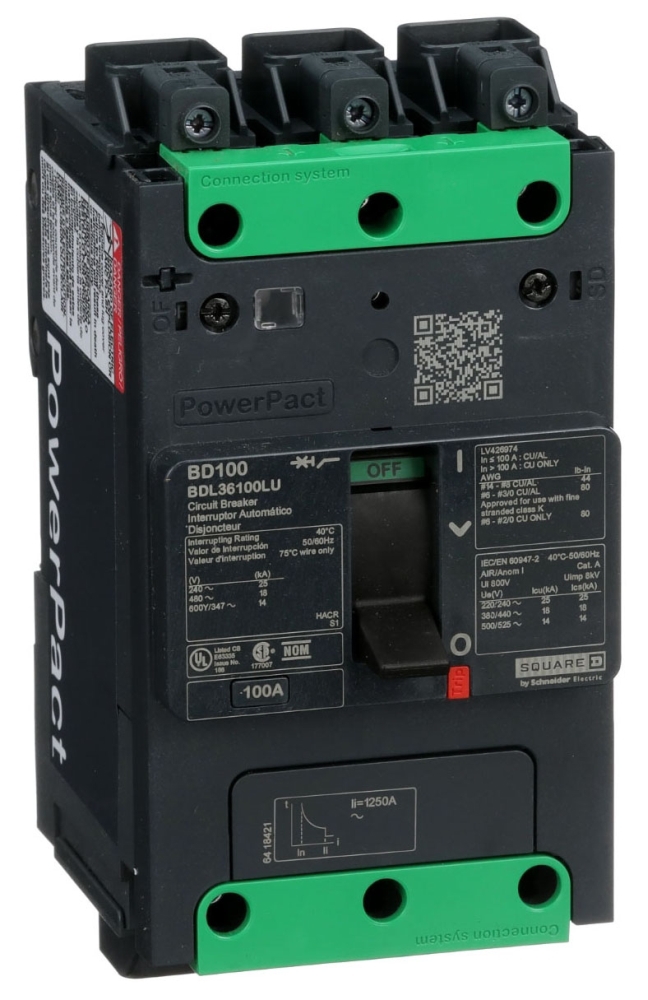

Square D Circuit Breaker, 100 Amps, Number of Poles: 3, 347/600VAC AC Voltage Rating

Square D Circuit Breaker, 100 Amps, Number of Poles: 3, 347/600VAC AC Voltage Ratingzoom

Attributes

Key Value
9 Mm Pitches9
[Ics] Rated Service Bre.25 kA 220...240 V AC 50.
[Ue] Rated Operational .525 V AC 50/60 Hz UL 489
[Ui] Rated Insulation V.800 V IEC 60947-2
[Uimp] Rated Impulse Wi.8 kV IEC 60947-2
AC Voltage Rating525V AC
Ambient Air Temperature.-25-70 ?C
Ambient Air Temperature.-50-85 ?C
Amps100 A
Applicationdistribution
Awg GaugeAWG 6...AWG 2/0 fine st.
AWG RangeAWG 6...AWG 2/0 fine st.
BrandSchneider Electric
Breaking Capacity25 kA 208Y/120 V AC 50/.
Breaking Capacity CodeD
California Proposition .Cancer and Reproductive.
Catalog NumberBDL36100LU
China Rohs RegulationProduct out of China Ro.
Circuit Breaker Actuatortoggle
Circuit Breaker Mountin.Unit Mount
Circuit Breaker TypeStandard
ColorGray RAL 7016, Gray RAL.
Color FamilyGray
ConnectionEverlink lug line;Everl.
Connection Pitch27 mm
Continuous Current Rati.80 %
Control Typetoggle
Country of OriginUnited States, US - Uni.
Country of Origin (subj.United States
Current Rating100-100A
DC Voltage RatingNot Rated
Depth3.15 in, 80 mm
Device Applicationdistribution
Device Short NameBD 100
DisplayBDL36100LU Circuit brea.
ECCNEAR99
Electrical ConnectionEverlink lug line || Ev.
Electrical Durability10000 cycles IEC 947-1 .
Environmental DisclosureENVPEP1610005EN
Eu Rohs DirectiveCompliant
For Use WithElectrical Distribution.
Frame Size125A/BD
Halogen Content Perform.Halogen free product
Height5.39 in, 137 mm, 5.39
Ik Degree Of ProtectionIK07 IEC 62262
Instantaneous TripFixed
Interrupt Rating25 KA
Ip Degree Of Protectionfront cover IP40 IEC 60.
ItemMolded Case Circuit Bre.
Item Typecircuit breaker
Length20 mm, 3.15
Length UOMInch
Line Rated Current100-100 A
Local Signallingpresence of auxiliary c.
Made in USAYes
ManufacturerSchneider Electric
Max. AIR Rating25kA at 277/408V AC
Max. Operating Temp.158 Degrees F
Max. Wire Size2 AWG, 3 AWG
Mechanical Durability15000 cycles IEC 947-1 .
Mercury FreeYes
Min. Operating Temp.-13 Degrees F
Min. Wire Size14 AWG, 6 AWG
MountingClip-On
Mounting Modeclip-on 35 mm symmetric.
Mounting TypeClip-On
Net Weight1.074 kg
Network Frequency50/60 Hz
No. of Poles3-Pole
Number of Poles3
Number Of Slots1 auxiliary switch OF p.
Operating Altitude6561.68 ft (2000 m) wit.
Phase3
Phase ConnectionABC
Poles Description3P
Pollution Degree3 IEC 60947-1
Product CertificationsUL || IEC || CCC || EAC.
Product NamePowerPact B
Product Or Component Ty.circuit breaker
Protected Poles Descrip.3t
Pvc FreeYes
Quality LabelsCE
Quantity Per Setset of 1
RangePowerPact
Rated Voltage525V AC 50/60 Hz UL 489
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
SeriesBDL, PowerPact
StandardCSA C22.2 No 5 || GB 14.
StandardsCSA C22.2 No 5, EN/IEC .
Sub BrandBD 100
Suitability For Isolati.yes IEC 60947-2
Sustainable Offer StatusGreen Premium product
Terminal ConnectionEverlink Lug Both Ends
Tightening Torque5-5 N.m 2.5-16 mm? (AWG.
Torque5-5 N.m 2.5-16 mm? (AWG.
Trip TypeThermal Magnetic, therm.
Trip Unit NameTM-D
Trip Unit Technologythermal-magneticTM-D,
UNSPSC39121616
Utilisation Categorycategory A
WeeeThe product must be dis.
Width3.19, 81 in., 81 mm, 3..
Wire Stripping Length20 mm
