Square D BGL36090LU
Square Dzoom

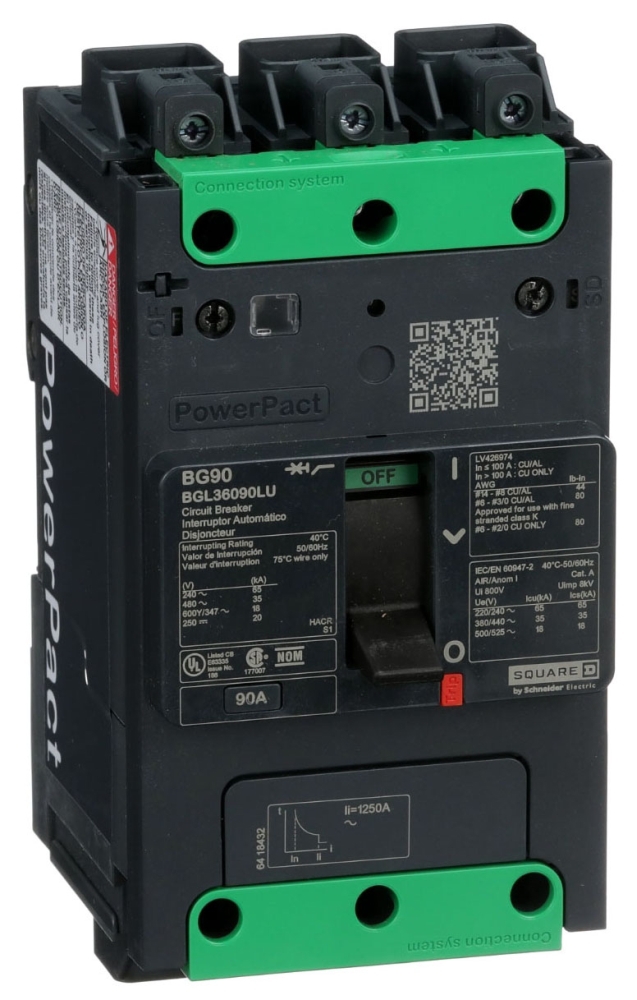

Square D BGL36090LU

mpn:
BGL36090LU
brand:
SquareD
manufacturer:
SquareD
MPN:
BGL36090LU
Description:
SquareD BGL36090LU MOLDED CASE CIRCUIT BRKR 600Y/347V 90A - MROSupply.com
Weight:
0.147675
Weight:
0.147675 LB
Preferred Price:
1578.45
Price:
1578.45
Min Simple Price:
891.78
Absolute Min Price:
1266.32
Min Price:
1266.32
Dimensions:
[6.0, 4.0, 4.0]
qty:
1
simpleSku:
zc0NDM:::BGL36090LU
sku:
zc0NDM::S7:BGL36090LU@y0
condition:
11
seller:
standardelectricsupply.com
amzMan:
square d
HazMat:
False
DropShip:
False

Attributes

Key ^Value
9 Mm Pitches9
[Ics] Rated Service Breaking Capacity65 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 18 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 35 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 35 kA 440 V AC 50/60 Hz IEC 60947-2
[Ue] Rated Operational Voltage525 V AC 50/60 Hz UL 489
[Ui] Rated Insulation Voltage800 V IEC 60947-2
[Uimp] Rated Impulse Withstand Voltage8 kV IEC 60947-2
AC Voltage Rating525V AC
Actuator Type, Circuit Breaker Actuator, Control TypeToggle
Ambient Air Temperature For Operation-25-70 ?C
Ambient Air Temperature For Storage-50-85 ?C
Amperage Rating, Amps90 A
Awg GaugeAWG 6...AWG 2/0 fine stranded aluminium/copper || AWG 14...AWG 3/0 rigid or stranded aluminium/copper
Brand, ManufacturerSchneider Electric
Breaking Capacity65 kA 208Y/120 V AC 50/60 Hz UL 489 || 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480/277 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 18 kA 600Y/347 V AC 50/60 Hz UL 489
Breaking Capacity CodeG
California Proposition 65 : WARNINGCancer and Reproductive Harm - www.P65Warnings.ca.gov
Catalog NumberBGL36090LU
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Circuit Breaker Mounting StyleUnit Mount
Circuit Breaker TypeStandard
ColorGray, Gray RAL 7016)
Connection Pitch27 mm
Connection typeLine/Load Lug
Continuous Current Rating80 %
Country of OriginUnited States
Curve Type, FrameB
DC Voltage RatingNot Rated
Depth3.15 in, 80 mm
Device Applicationdistribution
Device Short NameBG 090
Dimensions5.39 in H x 3.19 in W x 4.09 in D
DisplayBGL36090LU Circuit Circuit Breaker, PowerPact B, 90A, 3 Pole, 600Y/347VAC, 18kA, lugs, thermal magnetic, 80%, control wire ON end
Electrical ConnectionEverlink lug line || Everlink lug load
Electrical Durability10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
Enclosure TypeNEMA AB4/IP40
Environmental DisclosureENVPEP1610005EN
Eu Rohs DirectiveCompliant
For Use WithElectrical Distribution Equipment, Industrial Control Panels
Frame Size125A/BG
Frequency Rating, Network Frequency50/60 Hz
Halogen Content PerformanceHalogen free product
Height5.39 in, 137 mm
Ik Degree Of ProtectionIK07 IEC 62262
Instantaneous TripFixed
Interrupt Rating65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600Y/347 VAC
Ip Degree Of Protectionfront cover IP40 IEC 60529
ItemMolded Case Circuit Breaker
Line Rated Current90-90 A
Local Signallingpresence of auxiliary contacts flag green)
Made in USA, Mercury Free, Pvc Free, Rohs Exemption InformationYes
Max. AIR Rating100kA at 240V AC
Max. Wire Size2 AWG, 3 AWG
Mechanical Durability15000 cycles IEC 947-1 Annex K ed 5.2
Min. Wire Size14 AWG, 6 AWG
MountingClip-On
Mounting Modeclip-on 35 mm symmetrical DIN rail) || by screws plate)
Mounting typeDIN Rail/Threaded
Net Weight1.074 kg
Number of Poles, Phase3
Number Of Slots1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in) || 1 alarm switch SD plug-in)
Operating Altitude6561.68 ft (2000 m) without derating || 5000 m with derating
Phase ConnectionABC
Poles Description3P
Pollution Degree3 IEC 60947-1
Product CertificationsUL || IEC || CCC || EAC || CSA || NOM
Product NamePowerPact B
Product Or Component Typecircuit breaker
Protected Poles Description3t
Quality LabelsCE
Quantity Per Setset of 1
RangePowerPact
Reach RegulationReference contains Substances of Very High Concern above the threshold
SeriesBGL
StandardsCSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489, GB 14048.2 || EN/IEC 60947-2 || UL 489 || EN/IEC 60947-5-1 || NMX J-266 || CSA C22.2 No 5 || NEMA AB1
Suitability For Isolationyes IEC 60947-2
Sustainable Offer StatusGreen Premium product
Temperature Rating (Degrees F)-13 to 158 deg F
Terminal ConnectionEverlink Lug Both Ends
Tightening Torque5-5 N.m 2.5-16 mm? (AWG 14...AWG 4) || 9-9 N.m 25-95 mm? (AWG 3...AWG 3/0)
Trip Range1000 to 1500 A
Trip TypeLI/Thermal Magnetic
Trip Unit NameTM-D
Trip Unit Technologythermal-magneticTM-D,
Utilisation Categorycategory A
Voltage Rating600Y/347 VAC
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Width81 mm, 3.19 in
Wire Size14 to 2/0 AWG, 14 to 3/0 AWG Al/Cu
Wire Stripping Length20 mm

All Prices

ImgSellerSupplier SKURequested Price ^Calc MOQ PriceMOQIn StockLead TimeBrandWeightPreferred Tier
thumbzoomstandardelectricsupply.com2364139891.78891.781In StockSchneider Electric891.78 @ Qty: 1+
thumbzoomgordonelectricsupply.comBGL36090LU895.0895.01In Stock10SQUARE D895.0 @ Qty: 1+
thumbzoommayerelectric.comSQDBGL36090LU1040.641040.641In StockSQUARE D2.36281040.64 @ Qty: 1+
Newark16AC91681063.031063.031In StockSQUARE D BY SCHNEIDER ELECTRIC1063.03 @ Qty: 1+
thumbzoomZoroG65652971071.01071.01In Stock15Square D1071.0 @ Qty: 1+
thumbzoomcrescentelectric.com10870672071.922071.9211Schneider Electric2071.92 @ Qty: 1+
Square D BGL36090LU

Circuit Breaker, 90 Amps, Number of Poles: 3, 347/600VAC AC Voltage Rating
