Schneider Electric EDB16015

B00CONP68M

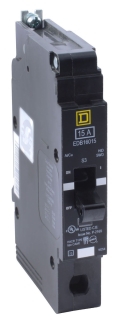

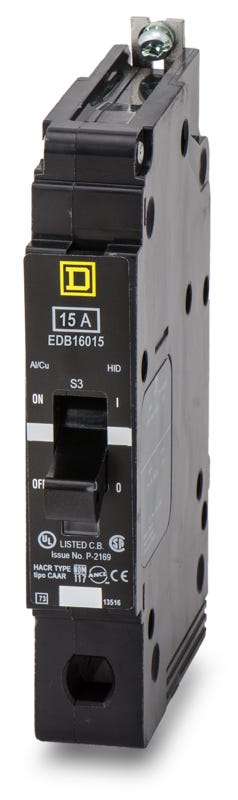

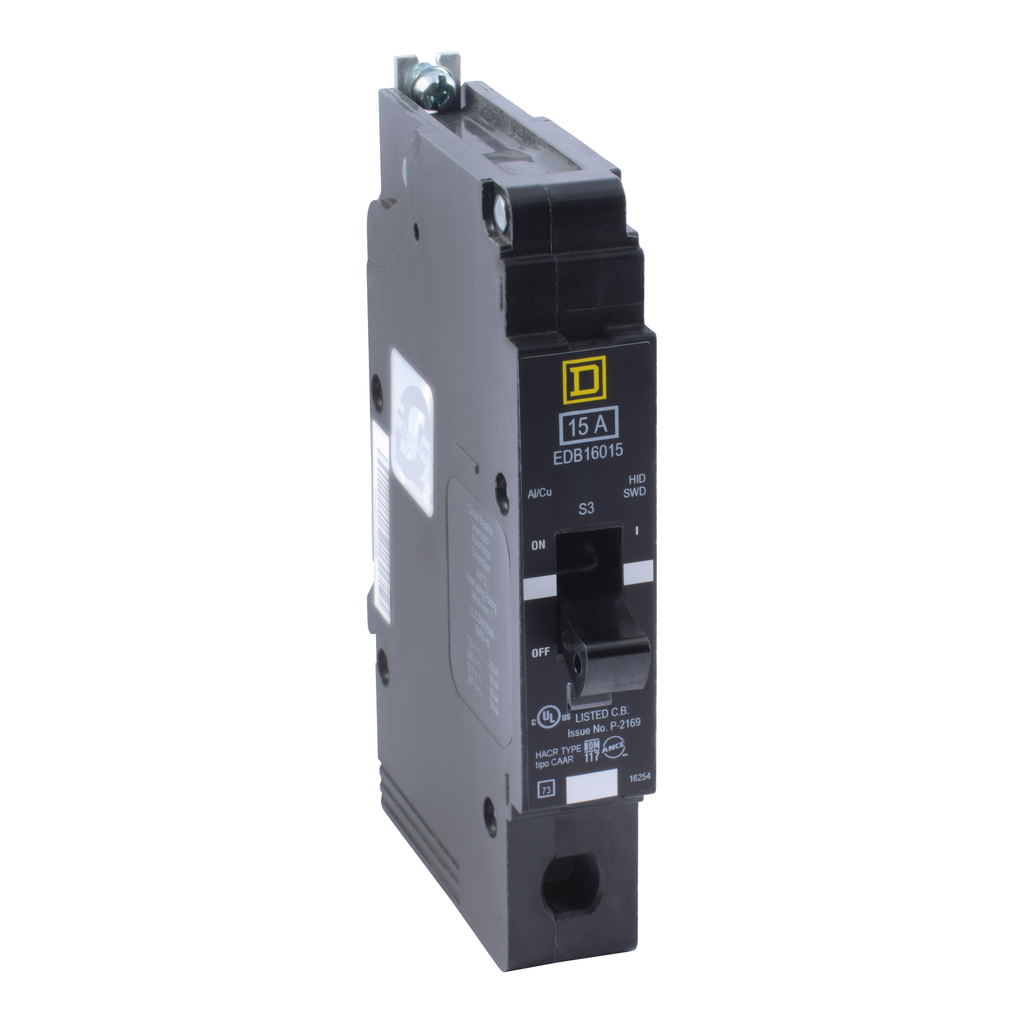

SCHNEIDER ELECTRIC 600-VOLT 15-AMP EDB16015 Miniature Circuit Breaker 600V 15A

SCHNEIDER ELECTRIC 600-VOLT 15-AMP EDB16015 Miniature Circuit Breaker 600V 15Azoom

Attributes

Key Value
[Ue] Rated Operational .600Y/347 V AC
AC Voltage Rating600VAC
Ambient Air Temperature.40 ?C
Amperage15A
Amperage Rating15
Amps15
ApplicationNF panelboard;HACR rate.
Awg GaugeAWG 12...AWG 6 aluminiu.
BrandSquare D, Square D by S.
Breaking Capacity14 kA 600Y/347 V AC
Breaking Capacity CodeD
Catalog NumberEDB16015
China Rohs RegulationProduct out of China Ro.
Circuit Breaker Applica.HACR rated
Circuit Breaker Mountin.Bolt-On
ConnectionLugs aluminium;AWG 12...
Contactor TypeLighting
Country of OriginMexico
Depth4.05 in
Device Short NameEDB
Electrical Connectionlugs aluminium
EnclosureNF Panelboard
Eu Rohs DirectiveCompliant
FeaturesMercury Free
For Use WithNF Panelboard
FrameE-Frame
Frame SizeD; E-Frame
Frequency Rating50/60 HZ
Gtin785901238232
Height5.66 in, 5.66
Height UOMInch
High Amp Trip Setting875 A
Holding Current270 A
Interrupt Rating25 KAIC @ 120 VAC 18 KA.
ItemMiniature Circuit Break.
Item Typecircuit-breaker
Length5.66 INCHES
Line Rated Current15 A
Local Signallingtrip indicator
Made in USANo
ManufacturerSchneider Electric
MaterialTHERMOSET COMPOSITE RES.
Max. AIR Rating14 kA
Max. Wire Size6 AWG (Cu/Al)
Mercury FreeYes
Min. Wire Size12 AWG (Al), 14 AWG (Cu)
Module TypeE-Frame
Mounting ModeBolt-On
MpnEDB16015
Net Weight2 lb(US)
Number Of Poles1
Number of Poles1
Number Of Spaces1
Number Of Spaces Requir.1
Operating TemperatureCALIBRATED FOR USE AT 4.
Phase1
Poles1
Product CertificationscULus || IEC
Product DestinationNF Panelboard
Product Or Component Ty.circuit-breaker
Product TypeMiniature Circuit Break.
Protection Typeoverload || short-circu.
Range Of Product125 A Frame EDB-EGB-EJB
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
SeriesEDB
Special Featurestrip indicator
StandardUL LISTED - CSA CERTIFI.
StandardscULus, IEC
Sub BrandEDB
Terminal ConnectionLug
Tightening Torque3.4-3.4 N.m 2.5-16 mm? .
Trip RangeHTTP://CISNT06.C076.US..
Trip Typethermal-magnetic, Therm.
Trip Unit Rating875-875 A
Trip Unit Technologythermal-magnetic
UPC785901238232
Upc785901238232
Voltage Rating600Y/347 V AC
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Width0.98 in, 0.98
Width UOMInch

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
simplybreakers.comEDB1601543.991In StockSchneider Electric43.99 @ 1
thumbzoomsuperbreakers.comEDB1601545.311In StockSquare D45.31 @ 1
thumbzoomZoroG0845455131.991In StockSquare D1.37131.99 @ 1
thumbzoomgordonelectricsupply.comEDB16015132.091In Stock10SQUARE D132.09 @ 1
thumbzoommayerelectric.comSQDEDB16015145.141In StockSQUARE D2.0145.14 @ 1
thumbzoomRadwellEDB16015150.0113SCHNEIDER ELECTRIC SQUARE D150.0 @ 1
thumbzoomcrescentelectric.com1434143156.841In StockSquare D by Schneider Electric156.84 @ 1
thumbzoomsustainablesupply.comC3045446167.21In StockSquare D1.37167.2 @ 1
Newark89H4061169.641In StockSQUARE D BY SCHNEIDER ELECTRIC169.64 @ 1
