Schneider Electric HGL36050T

B00CONEF4S

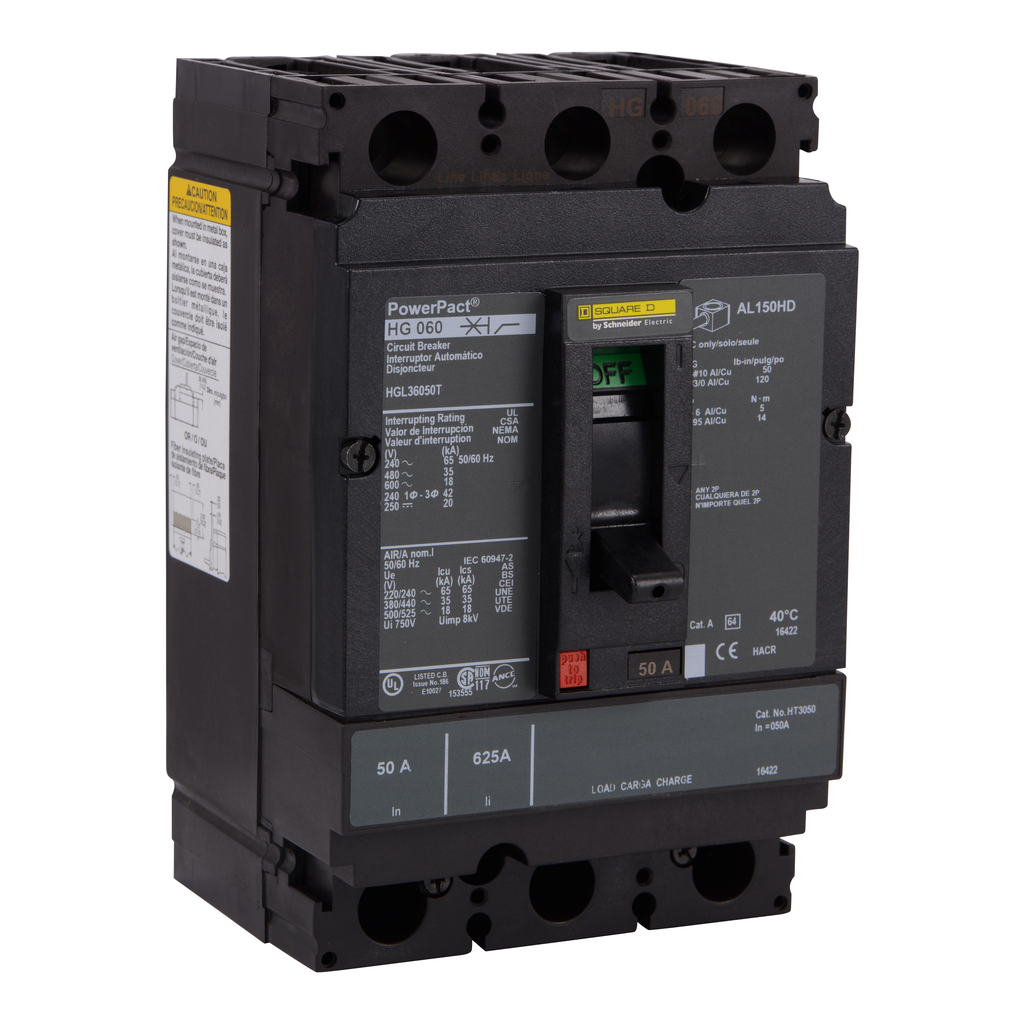

SCHNEIDER ELECTRIC HGL36050T Molded Case Circuit Breaker 600-Volt 50-Amp Electrical Box

SCHNEIDER ELECTRIC HGL36050T Molded Case Circuit Breaker 600-Volt 50-Amp Electrical Boxzoom

Attributes

Key Value
100% RatedNo
[Ics] Rated Service Bre.65 kA 220/240 V AC 50/6.
[Ue] Rated Operational .690 V AC 50/60 Hz IEC 6.
[Ui] Rated Insulation V.750 V IEC 60947-2
[Uimp] Rated Impulse Wi.8 kV IEC 60947-2
Ambient Air Temperature.-2-70 ?C
Ambient Air Temperature.-50-85 ?C
ApprovalsCE, CSA, UL
Awg GaugeAWG 14...AWG 3/0 alumin.
Breaking Capacity65 kA 240 V AC 50/60 Hz.
Breaking Capacity CodeG
California Proposition .DINP, which is known to.
China Rohs RegulationProduct out of China Ro.
Circularity ProfileENVEOLI1311006EN
ColorBlack
Communication InterfaceModbus || Ethernet
ConditionNew
Continuous Current Rati.80 %
Control Typetoggle
Country of Origin (subj.United States
Current Rating50 A
Depth86 mm
Device Applicationdistribution
Electrical Connectionlugs line || lugs load
Environmental DisclosureENVPEP1311006EN
Estimated Lead Time (in.5
Eu Rohs DirectiveCompliant
Family SeriesSquare D Circuit Breake.
GFCINo
Gross Weight0 lbs
GTIN785901474104
Height163 mm
Installed Devicetrip unit field install.
Ip Degree Of Protectionfront cover IP40 IEC 60.
ItemCircuit breaker,PowerPa.
Item NumberHGL36050T
kAIC @ 240 VAC65
kAIC @ 250 VDC20
kAIC @ 480 VAC35
kAIC @ 500 VDC20
kAIC @ 600 VAC18
Line Rated Current50-50 A
Local Signallingswitched off (OFF) 1 tr.
Magnetic Hold Current400 A
Magnetic Tripping Curre.850-850 A
ManufacturerSquare D
Manufacturer Part Number606123
Max Voltage500 VDC, 600 VAC
Mercury FreeYes
MountingPanel
Mounting Modeunit mount lug)
Mounting Supportlug
Net Weight2.2 kg, 0 lbs
Network Frequency50/60 Hz
Neutral PoleNo
Neutral ProtectionNo
Number Of Slots2 auxiliary switch OF p.
Poles3
Poles Description3P
Pollution Degree3 IEC 60947-1
Product CertificationsUL || CSA || NOM
Product NamePowerPact H
Product Or Component Ty.circuit breaker
Product SeriesPowerPact H
Protected Poles Descrip.3t
Pvc FreeYes
Quality LabelsCE
Quantity Per Set1
RangePowerPact
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
StandardsUL || CSA || NEMA || NO.
Suitability For Isolati.yes IEC 60947-2
Sustainable Offer StatusGreen Premium product
Terminal IdentifierAL150HD
Terminal TypeLugs Included
Terminals IncludedLine and Load
Tightening Torque5-5 N.m 2.5-6 mm? (AWG .
Trip UnitFixed Thermal / Fixed M.
Trip Unit Technologythermal-magnetic
Utilisation Categorycategory A
Warranty18 months
Weight2.000000
Width104 mm
Wire Stripping Length16 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomcappusa.com48113961052.171In StockSquare D1052.17 @ 1
thumbzoomZoroG39776501063.461In Stock70Square D10.01063.46 @ 1
thumbzoomblackhawksupply.comHGL36050T1104.31In StockSquare D1104.3 @ 1
thumbzoomindustrialrefrigerationparts.comHGL36050T1157.311In StockSquare D2.01157.31 @ 1
thumbzoomGalcoHGL36050T-SQD1256.641In StockSquare D1256.64 @ 1
thumbzoomgordonelectricsupply.comHGL36050T1310.01In Stock10SQUARE D1310.0 @ 1
Newark64M25671400.781In StockSQUARE D BY SCHNEIDER ELECTRIC1400.78 @ 1
thumbzoommayerelectric.comSQDHGL36050T1429.091In StockSQUARE D4.841429.09 @ 1
