Schneider Electric LC1D096SL

B00CONMBJ4

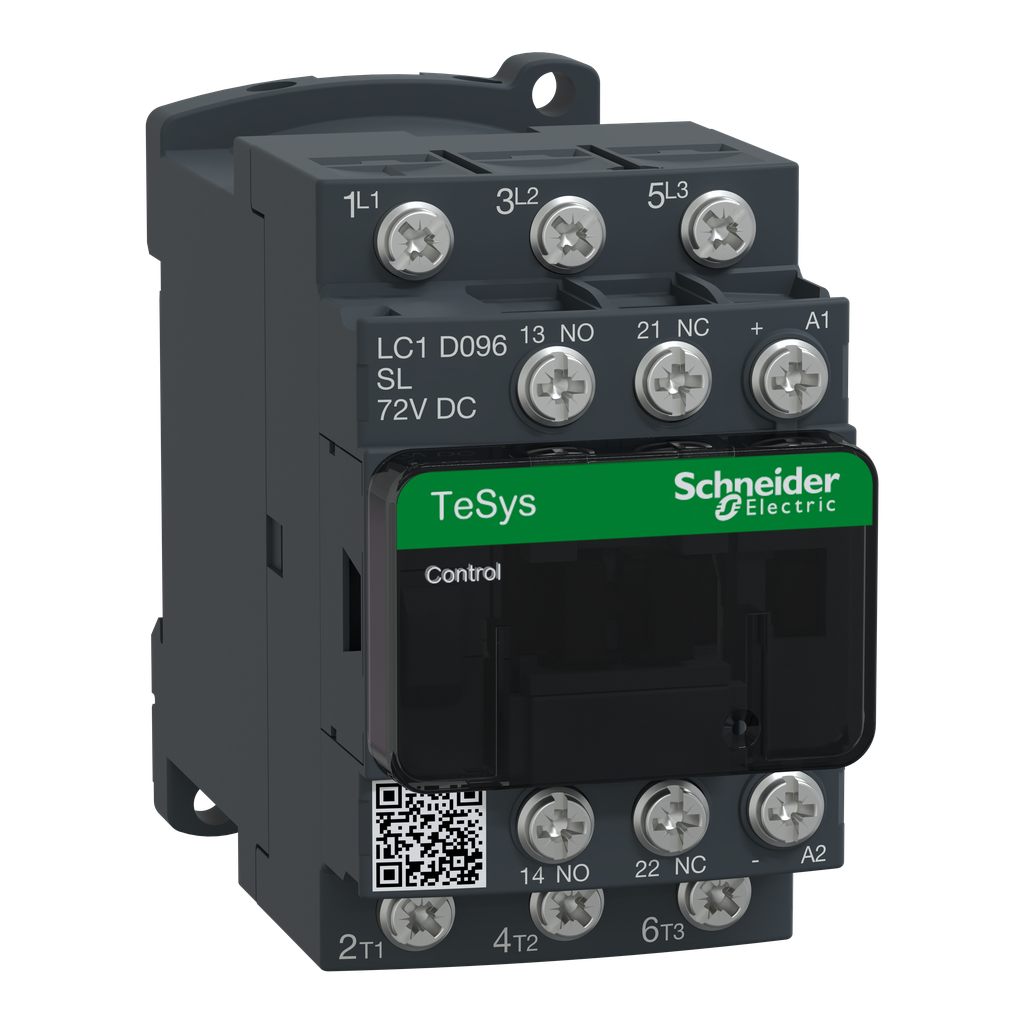

SCHNEIDER ELECTRIC Contactor 600Vac 9Amp Iec Options LC1D096SL Interface Relay-Electromechanical

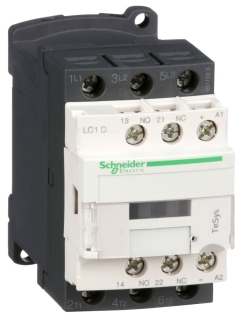

SCHNEIDER ELECTRIC Contactor 600Vac 9Amp Iec Options LC1D096SL Interface Relay-Electromechanicalzoom

Attributes

Key Value
3-Phase HP Rating (Max.)7-1/2 hp
[Icw] Rated Short-Time .105 A 40 ?C - 10 s powe.
[Ith] Conventional Free.25 A 60 ?C power circui.
[Uc] Control Circuit Vo.72 V DC
[Ui] Rated Insulation V.power circuit 690 V IEC.
[Uimp] Rated Impulse Wi.6 kV IEC 60947
Ambient Air Temperature.-40-60 ?C || 60-70 ?C w.
Ambient Air Temperature.-60-80 ?C
ApplicationResistive load;motor co.
Auxiliary Contact Compo.1 NO + 1 NC
Auxiliary Contacts Typemechanically linked 1 N.
Average Impedance2.5 mOhm - Ith 25 A 50 .
BrandSchneider Electric
California Proposition .Antimony oxide & Antimo.
Catalog NumberLC1D096SL
China Rohs RegulationProduct out of China Ro.
Circularity ProfileENVEOLI1501004
Climatic WithstandIACS E10 || IEC 60947-1.
Coil Power Rating2.4 W, 2.4-2.4 W 20 A D.
Coil Technologybuilt-in bidirectional .
Coil Voltage72 VDC, 72 V DC
ConnectionControl circuit lugs-ri.
Connection typeScrew
Connections - Terminalscontrol circuit lugs-ri.
Contact Configuration3NO, 3 NO, 1 NO + 1 NC;.
Contact Current Rating9 A
Contact Operation3NO
Contact Rating25 A 60 A Degrees C POW.
Contactor Applicationresistive load || motor.
Contactor TypeNon-Reversing
Control Circuit TypeDC low consumption
Control Circuit Voltage.0.1...0.3 Uc -40-70 ?C .
Control Voltage72 V
Country of OriginFR - France, France
Depth95 mm
Device Short NameLC1D
Dimensions45 mm W x 95 mm D x 77 .
ECCNEAR99
Enclosure TypeIP20
Environmental DisclosureENVPEP1501004
Eu Rohs DirectiveCompliant
Fire Resistance850 ?C IEC 60695-2-1
Frequency Rating25 to 400 Hz
Height77 mm
Hold-In Power Consumpti.2.4-2.4 W 20 ?C
Inrush Power In W2.4-2.4 W 20 ?C)
Insulation Resistance> 10 MOhm signalling ci.
Ip Degree Of ProtectionIP20 front face IEC 605.
Irms Rated Making Capac.250 A 440 V power circu.
Item Typecontactor
Made in USANo
ManufacturerSchneider Electric
Max. Inductive Amps (AC.9A
Max. Resistive Amps (AC.20A
Maximum Horse Power Rat.1 hp 230/240 V at AC 50.
Maximum Operating Rate3600 cyc/h 60 ?C
Mechanical Durability30 Mcycles
Mechanical Robustnessvibrations contactor op.
Mercury FreeYes
Minimum Switching Curre.5 mA signalling circuit
Minimum Switching Volta.17 V signalling circuit
Motor Power Kw2.2 kW 220...230 V AC 5.
MountingRail Plate
Mounting Supportplate || rail
Mounting typeSurface
Mounting TypePanel Mount
Net Weight0.48 kg
Non-Overlap Time1.5 ms on de-energisati.
Number of Auxiliary Con.1NO-1NC
Number of Poles3
Operating Altitude0...9842.52 ft (0...300.
Operating Cycles25...400 Hz, 3600 Cycles
Operating Temperature-5 to 60 deg C, -40-70 .
Operating Time65.45...88.55 ms closin.
Overvoltage CategoryIII
Pole Contact Composition3 NO
Poles Description3P
Pollution Degree3
Power Dissipation Per P.1.56 W AC-1 || 0.2 W AC.
Product CertificationsGOST || DNV || LROS (Ll.
Product NameTeSys D || TeSys Deca
Product Or Component Ty.contactor
Protective Coverwith
Protective TreatmentTH IEC 60068-2-30
Pvc FreeYes
RangeTeSys || TeSys Deca
Rated Breaking Capacity250 A 440 V power circu.
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
Safety Reliability LevelB10d = 1369863 cycles c.
SeriesTeSys D, LC1D, TeSys De.
Signalling Circuit Freq.25...400 Hz
Single-Phase HP Rating .1 hp
Size45 MM,77 MM,95 MM
Special Featuresbuilt-in bidirectional .
StandardGOST;DNV;LROS (Lloyds r.
StandardsCSA C22.2 No 14 || EN 6.
Sub BrandTeSys D;TeSys Deca
Sustainable Offer StatusGreen Premium product
Terminal TypeLug
Tightening Torquecontrol circuit 1.7 N.m.
Time Constant40 ms
Toxic Heavy Metal FreeYes
TypeIEC Contactor
UNSPSC39121529
UPC785901542827
Utilisation CategoryAC-1 || AC-4 || AC-3 ||.
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Wattage0.2 W, 1.56 W AC-1-0.2 .
Width45 mm
