Schneider Electric LJA36400U33X

B00CONDIY6

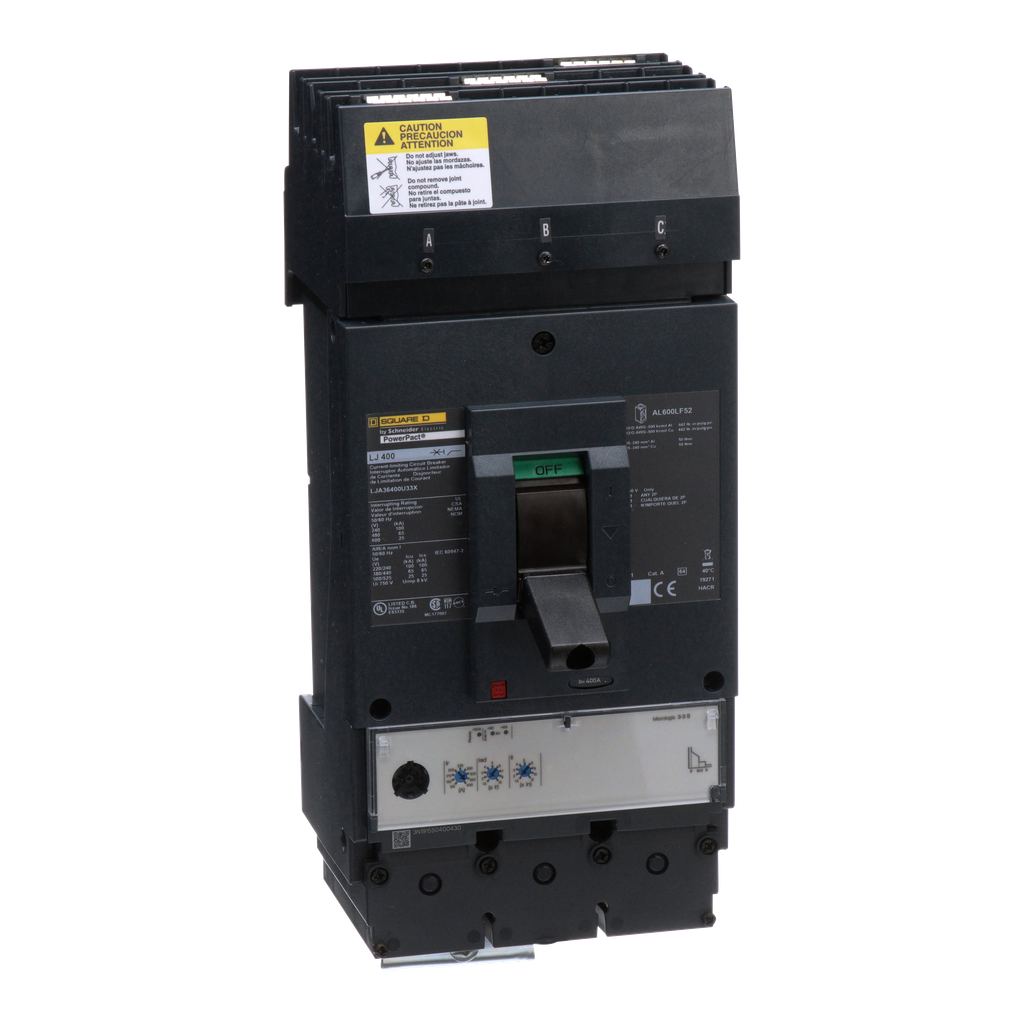

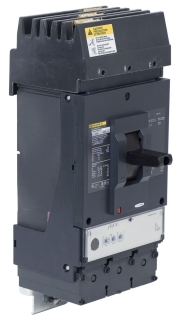

SCHNEIDER ELECTRIC Molded Case Circuit Breaker 600V 400A LJA36400U33X Inv, B/L,Open,Front Op,3P,480Vac,2000A

SCHNEIDER ELECTRIC Molded Case Circuit Breaker 600V 400A LJA36400U33X Inv, B/L,Open,Front Op,3P,480Vac,2000Azoom

Attributes

Key Value
[Ics] Rated Service Bre.65 kA 220/240 V AC 50/6.
[Ue] Rated Operational .600 V AC 50/60 Hz IEC 6.
[Ui] Rated Insulation V.750 V IEC 60947-2
[Uimp] Rated Impulse Wi.8 kV IEC 60947-2
AC Voltage Rating600V AC
AccessoriesLJA36400U33X-R
Ambient Air Temperature.-2-70 ?C
Ambient Air Temperature.-50-85 ?C
Amperage400
Amperage Rating400
Amps400 A
ApplicationHACR rated Applications.
ApprovalUL, CSA, CE, NMX, CCC
Awg GaugeAWG 3/0...500 kcmil alu.
AWG RangeAWG 3/0...500 kcmil alu.
BrandSquare D, Square D by S.
Breaking Capacity100 kA 240 V AC 50/60 H.
Breaking Capacity CodeJ
California Proposition .DINP, which is known to.
Catalog NumberLJA36400U33X
China Rohs RegulationProduct out of China Ro.
Circuit Breaker Actuatortoggle
Circuit Breaker Applica.HACR rated
Circuit Breaker Mountin.I-Line Bracket
Circularity ProfileENVEOLI2206029EN
ColorBlack
Color FamilyBlack
Communication InterfaceModbus || Ethernet
ConnectionAWG 3/0...500 KCMIL ALU.
Continuous Current Rati.80 %
Control Typetoggle
Country of OriginUnited States, US - Uni.
Current Rating400-400A
Depth110 mm
Device Applicationdistribution
Device Short NameL-Frame
DisplayLJA36400U33X Circuit br.
ECCNEAR99
Electrical ConnectionI-Line connection, line.
Environmental DisclosureENVPEP2206029EN
Eu Rohs DirectiveCompliant
FeaturesMercury Free; PVC Free
FrameJ
Frame SizeL
Gtin785901807957
Height6 in., 340 mm
Height (in)14.7
Interrupt Rating65 kA at 220/240/480V A.
Interrupting Rating65 KA 480 V AC, 100 KA .
Ip Degree Of Protectionfront cover IP40
ItemCircuit breaker,PowerPa.
Item TypeCIRCUIT BREAKER,CURRENT.
Length6.61 IN, 31 mm
Length (in)6.61
Line Rated Current400-400 A
Local Signallingready 1 LED green) || a.
Long Time Pick-Up Adjus.0.25...1 x In
Made in USAYes
ManufacturerSchneider Electric
Max. AIR Rating100 kA
Max. Wire Size500 kcmil (Cu/Al)
Mercury FreeYes
Min. Wire Size3/0 AWG (Cu/Al)
Mounting Height6 in
Mounting ModeI-Line bracket)
Mounting Supportbracket
Mounting TypeI-Line
MpnLJA36400U33X
Net Weight6.2 kg
Network Frequency50/60 Hz
No. of Poles3
Number of Poles3
Number Of Slots2 auxiliary switch OF p.
Phase3
Phase ConnectionABC
Poles3
Poles Description3P
Pollution Degree3 IEC 60947-1
Product CertificationsUL || CSA || NOM
Product NamePowerPact L
Product Or Component Ty.circuit breaker
ProtectionSolid State
Protection Technologycurrent limiter
Pvc FreeYes
RangePowerPact
Rated Voltage600V AC 50/60 Hz IEC 60.
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
SeriesLJA
Special FeaturesI-Line
StandardUL || CSA || NEMA || NO.
StandardsUL || CSA || NEMA || NO.
Suitability For Isolati.yes IEC 60947-2
Sustainable Offer StatusGreen Premium product
Terminal ConnectionI-Line, Lug
Terminal IdentifierAL600LF52K3
Tightening Torque50-50 N.m 95-240 mm? (A.
Torque50-50 N.m 95-240 mm? (A.
Trip Range400 A
Trip TypeElectronic, electronic,.
Trip Unit NameMicroLogic 3.3 S
Trip Unit Technologyelectronic, standard, M.
UNSPSC39121616
Upc785901807957
UPC785901807957
Utilisation Categorycategory A
Voltage600
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Width140 mm
Width (in)5.94
Wire GaugeAWG 3/0, 500 kcmil alum.
Wire Stripping Length31 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomgordonelectricsupply.comLJA36400U33X5340.011010SQUARE D5340.0 @ 10
thumbzoommayerelectric.comSQDLJA36400U33X5729.59110SQUARE D13.645729.59 @ 10
thumbzoomRadwellLJA36400U33X5800.0110SCHNEIDER ELECTRIC SQUARE D5800.0 @ 10
simplybreakers.comLJA36400U33X6142.99110Schneider Electric6142.99 @ 10
thumbzoomsuperbreakers.comLJA36400U33X6148.65110Square D6148.65 @ 10
Graybar254246306603.2848110Square D (Schneider Electric)6603.2848 @ 10
thumbzoomZoroG39816927626.4311065Square D2.27626.43 @ 10
Newark67W25778012.12110SQUARE D BY SCHNEIDER ELECTRIC8012.12 @ 10
thumbzoomcrescentelectric.com613638400.63110Square D by Schneider Electric8400.63 @ 10
