CAI - SCHNEIDER ELECTRIC M9F21116

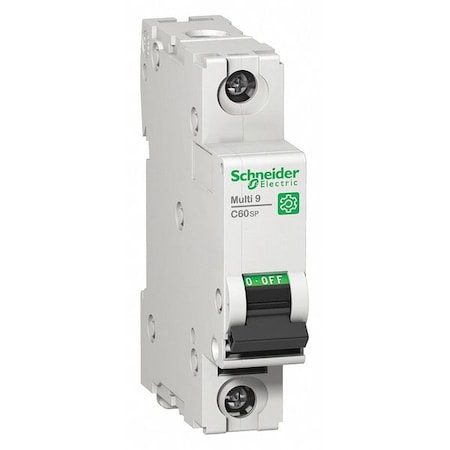

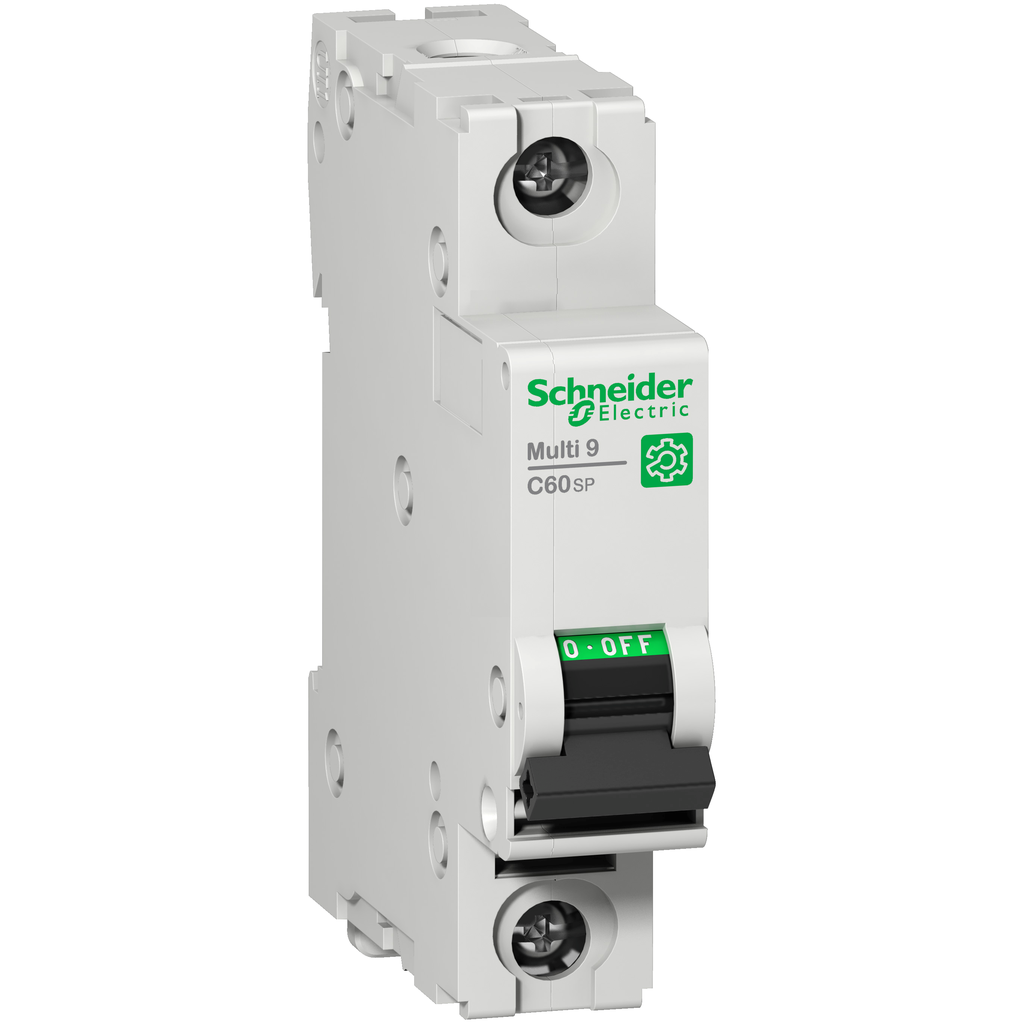

Schneider Electric Miniature Circuit Breaker, 16 Amps, Number of Poles: 1, 240VAC AC Voltage Ratingzoom

Schneider Electric Miniature Circuit Breaker, 16 Amps, Number of Poles: 1, 240VAC AC Voltage Rating

B07J5LPY5N

Attributes

Key Value
100% RatedYes
9 Mm Pitches2
[Ics] Rated Service Breaking Capacity2.25 kA 75 % EN/IEC 60947-2 - 415 V AC || 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC || 20 kA 100 % EN/IEC 60947-2 - 60 V DC || 2.25 kA 75 % GB 14048.2 - 415 V AC || 7.5 kA 75 % GB 14048.2 - 240 V AC ||.
[Ue] Rated Operational Voltage240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 60 V DC
[Ui] Rated Insulation Voltage500 V AC EN/IEC 60947-2
[Uimp] Rated Impulse Withstand Voltage6 kVEN/IEC 60947-2
AC Voltage Rating240/415V AC
ActuatorToggle
Alarm SwitchNo
Ambient Air Temperature For Operation-30-70 ?C
Ambient Air Temperature For Storage-40-80 ?C
Amps16 A
Applicationdistribution, Branch Circuit Protection
ApprovalsCCC, CSA, IEC, UR
Auxiliary SwitchNo
BrandSchneider Electric
Breaking Capacity10 kA AIR 277 V AC UL 1077 || 14 kA AIR 240 V AC UL 1077 || 14 kA AIR 120 V AC UL 1077 || 10 kA AIR 65 V DC UL 1077 || 10 kA AIR 277 V AC CSA C22.2 No 235 || 14 kA AIR 240 V AC CSA C22.2 No 235 || 14.
BusbarNo
Catalog NumberM9F21116
CharacteristicB Curve
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Circuit Breaker ActuatorToggle
Circuit Breaker Mounting StyleDIN Rail
ColorGray
ConnectionTunnel type terminal top or bottom) 1-25 mm? AWG 18...AWG 8) - rigid;tunnel type terminal top or bottom) 1-16 mm? AWG 18...AWG 8) - flexible with ferrule;tunnel type terminal top or bottom) 1-16 mm?.
Connections - Terminalstunnel type terminal top or bottom) 1-25 mm? AWG 18...AWG 8) - rigid || tunnel type terminal top or bottom) 1-16 mm? AWG 18...AWG 8) - flexible with ferrule || tunnel type terminal top or bottom).
Contact Position IndicatorYes
Control TypeToggle
Country of OriginFrance, 00 - Unknown
CSA Standard235
Current Rating16 A
Curve CodeB
Curve TypeB
DC Voltage Rating60V DC
Depth72 mm, 2.83 in
Device Applicationdistribution
Device Short NameC60SP
DisplayM9F21116 Multi9 - C60SP - MCB - 1P - 16 A - B Curve - 277 V - 10 kA - UL 1077
Earth-Leakage Protectionwithout
ECCNEAR99
Electrical Durability10000 cycles
Environmental DisclosureENVPEP1304004EN
Eu Rohs DirectiveCompliant
Family SeriesSquare D Circuit Breakers, Multi 9 Series
FeaturesMercury Free; Padlockable
Gross Weight0 lbs
Halogen Content PerformanceHalogen free product
Height3.19, 81 mm
IEC Standard60947-2
Ip Degree Of ProtectionIP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
ItemIEC Supplementary Protector
Item NumberM9F21116
Item Typeminiature circuit-breaker
kAIC @ 120 VAC10
kAIC @ 60 VDC20
Length3.19 in, 2.83
Length (Straight Wireway)3.19 in
Length UOMInch
Line Rated Current16 A 25 ?C EN/IEC 60947-2
Local SignallingON/OFF indication
Made in USANo
Magnetic Tripping Limit4 x In +/- 20 % AC || 5.7 x In +/- 20 % DC
ManufacturerSquare D, Schneider Electric
Manufacturer Part Number624994
Max Voltage277 VAC
Max. AIR Rating14kA at 120/240V AC
Max. Wire Size8 AWG
Mechanical Durability20000 cycles
Mercury FreeYes
Min. Wire Size18 AWG
MountingDIN Rail
Mounting Modeclip-on
Mounting SupportDIN Rail
Mounting TypeDIN Rail Mount
Net Weight0.25 lbs
Network TypeAC || DC
Number of Poles1, 1 Pole
Number Of Protected Poles1
Operating Altitude0...6561.68 ft (0...2000 m)
Phase1
Poles1
Poles Description1P
Pollution Degree3 EN/IEC 60947-2
Product CertificationsIEC || CCC || UR || CSA
Product NameMulti9 C60
Product Or Component Typeminiature circuit-breaker
Product SeriesMulti 9
ProtectionSupplemental
Provision For Padlockingpadlockable
RangeMulti9
Reach RegulationReference contains Substances of Very High Concern above the threshold
Relative Humidity95-95 % 55-55 ?C
RoHSYes
Rohs Exemption InformationYes
SeriesC60SP, Multi 9 Series
Shunt TripNo
Special FeaturesON/OFF indication
StandardEN/IEC 60947-2;GB 14048.2;UL 1077;CSA C22.2 No 235;IEC;CCC;UR;CSA
StandardsEN/IEC 60947-2 || GB 14048.2 || UL 1077 || CSA C22.2 No 235, CCC, CSA C22.2 No 235, EN/IEC 60947-2, GB 14048.2, UL 1077, UR
Sub BrandMulti 9 C60;C60SP
Suitability For Isolationyes EN/IEC 60947-2
Sustainable Offer StatusGreen Premium product
Terminal ConnectionScrew Clamp
Terminal TypeClamp
Tightening Torque2.5-2.5 N.m top or bottom
Trip CurveB
Trip Typethermal-magnetic, Thermal Magnetic
Trip UnitFixed Thermal / Fixed Magnetic
Trip Unit Technologythermal-magnetic
Tropicalisation2 IEC 60068-1
UL Standard1077
Undervoltage ReleaseNo
UNSPSC39121601
UPC785901721963
UPC Code785901721963
Voltage Rating240 V AC 50/60 Hz;415 V AC 50/60 Hz;60 V DC
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Width18 mm, 0.71 in, 0.71
Wire Stripping Length14 mm top or bottom
