Schneider Electric QGP32100TM

B0095OJ2HY

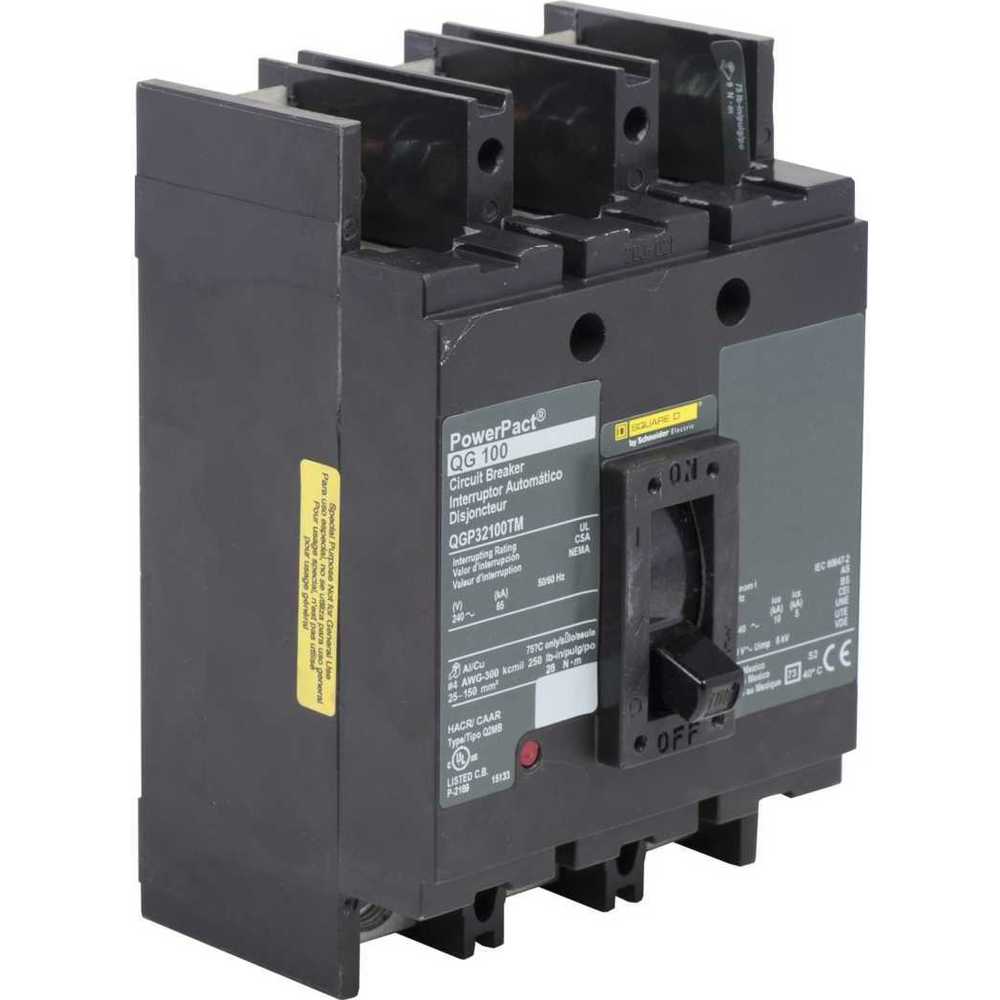

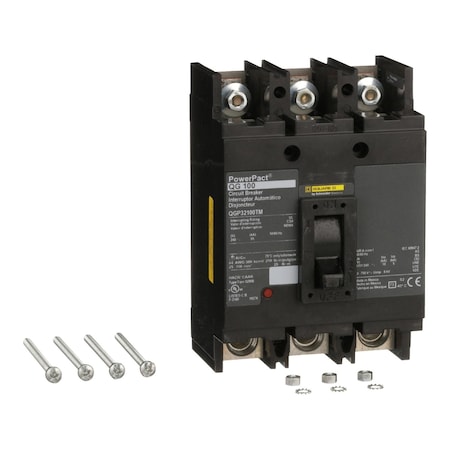

SCHNEIDER ELECTRIC 240-Volt 100-Amp QGP32100TM Molded Case Circuit Breaker 600V 80A

SCHNEIDER ELECTRIC 240-Volt 100-Amp QGP32100TM Molded Case Circuit Breaker 600V 80Azoom

Attributes

Key Value
[Ue] Rated Operational .240 V AC 50/60 Hz UL
[Uimp] Rated Impulse Wi.8 kV UL
Ambient Air Temperature.40-70 ?C
Amperage100
Amperage (Molded Case B.100 Amp
Amperage Rating100
Applicationdistribution
ApprovalIEC, UL, CSA
BrandSquare D, Square D by S.
Breaking Capacity65 kA 120/208 V AC 50/6.
Breaking Capacity CodeG
California Proposition .DINP, which is known to.
Catalog NumberQGP32100TM
China Rohs RegulationProduct out of China Ro.
ComponentMolded Case Circuit Bre.
ConnectionTerminal nut line;lugs .
Connection TypeBolt-On
Continuous Current Rati.80 %
Control Typeoperating handle
Country of OriginMX - Mexico, Mexico
Country of Origin (subj.Mexico
Current Rating100-100A
Depth3.93 in., 3.93 in
Device Applicationdistribution
ECCNEAR99
Electrical Connectionterminal nut line || lu.
Environmental DisclosureENVPEP1406032EN
Eu Rohs DirectiveCompliant
FrameQ-FRAME
Frame TypeQGP
Frame Type (Molded Case.Q Frame
FunctionsLong Time and Instantan.
Gtin785901508946
Halogen Content Perform.Halogen free product
Height6.47, 6.47 in., 6.47 in
Height (in)6.47
Height UOMInch
Interrupt Code (Molded .G Interrupt Rating
Interrupt Rating240 V AC,65 KA 240 V AC.
Interrupt Rating (Molde.65 kA 240 Volt
Interrupting Rating65?kA 240 V AC
ItemPowerPact Q - molded ca.
Item Typecircuit breaker
Length22 mm, 3.93
Length (in)3.93
Length UOMInch
Line Rated Current100-100 A
Local Signalling1 trip indicator green)
Made in USANo
Magnetic Hold Current1200 A
Magnetic Tripping Curre.2400-2400 A
ManufacturerSquare D, Schneider Ele.
Maximum Voltage (Molded.240 VAC
Mechanical Durability1000 cycles loaded || 5.
Mercury FreeYes
Mounting (Molded Case B.Unit Mount
Mounting Modeunit mount lug)
Mounting Supportlug
Mounting TypeUnit
MpnQGP32100TM
Network Frequency50/60 Hz
No. of Poles3-Pole
Number of Poles3
Phase3
Poles3
Poles (Molded Case Brea.Three Pole
Poles Description3P
Product CertificationsUL || CSA || NOM
Product NamePowerPact Q
Product Or Component Ty.circuit breaker
ProtectionThermal Magnetic
Pvc FreeYes
RangePowerPact
Rated Voltage240V AC 50/60 Hz UL
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Rohs Exemption Informat.Yes
SeriesQGP
Special FeaturesUnit Mount
StandardUL || CSA || NEMA || NO.
StandardsUL || CSA || NEMA || NO.
Sub BrandQO
Sustainable Offer StatusGreen Premium product
Terminal ConnectionLine Side Lug?
Tightening Torque28-28 N.m 25-150 mm? (A.
Torque28-28 N.m 25-150 mm? (A.
Trip Range100 A,1200 A,2400 A
Trip Typethermal-magnetic
Trip Unit Technologythermal-magnetic
UNSPSC39121616
Upc785901508946
UPC785901508946
Utilisation Categorycategory A
Voltage240
Voltage Rating240 V
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Width4.5, 4.5 mm, 4.5 in
Width (in)4.5
Width UOMInch
Wire Stripping Length22 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
rspsupply.comSCHNEIDER QGP32100TM1447.291In StockSchneider Electric1447.29 @ 1
thumbzoomsuperbreakers.comQGP32100TM1644.5617Square D1644.56 @ 1
thumbzoommayerelectric.comSQDQGP32100TM2082.541In StockSQUARE D2082.54 @ 1
thumbzoomRaptor SuppliesAG8UFE2156.25085651In StockSQUARE D2156.2508565 @ 1
thumbzoomZoroG39740102260.01In Stock40Square D4.622260.0 @ 1
Newark20K24082396.041In StockSQUARE D BY SCHNEIDER ELECTRIC2396.04 @ 1
thumbzoomRadwellQGP32100TM2400.01In StockSCHNEIDER ELECTRIC SQUARE D2400.0 @ 1
Graybar250703062450.561In StockSquare D (Schneider Electric)2450.56 @ 1
thumbzoomcrescentelectric.com1623052506.681In StockSquare D by Schneider Electric2506.68 @ 1
