Schneider Electric XB5AW3445

B00CONL0CI

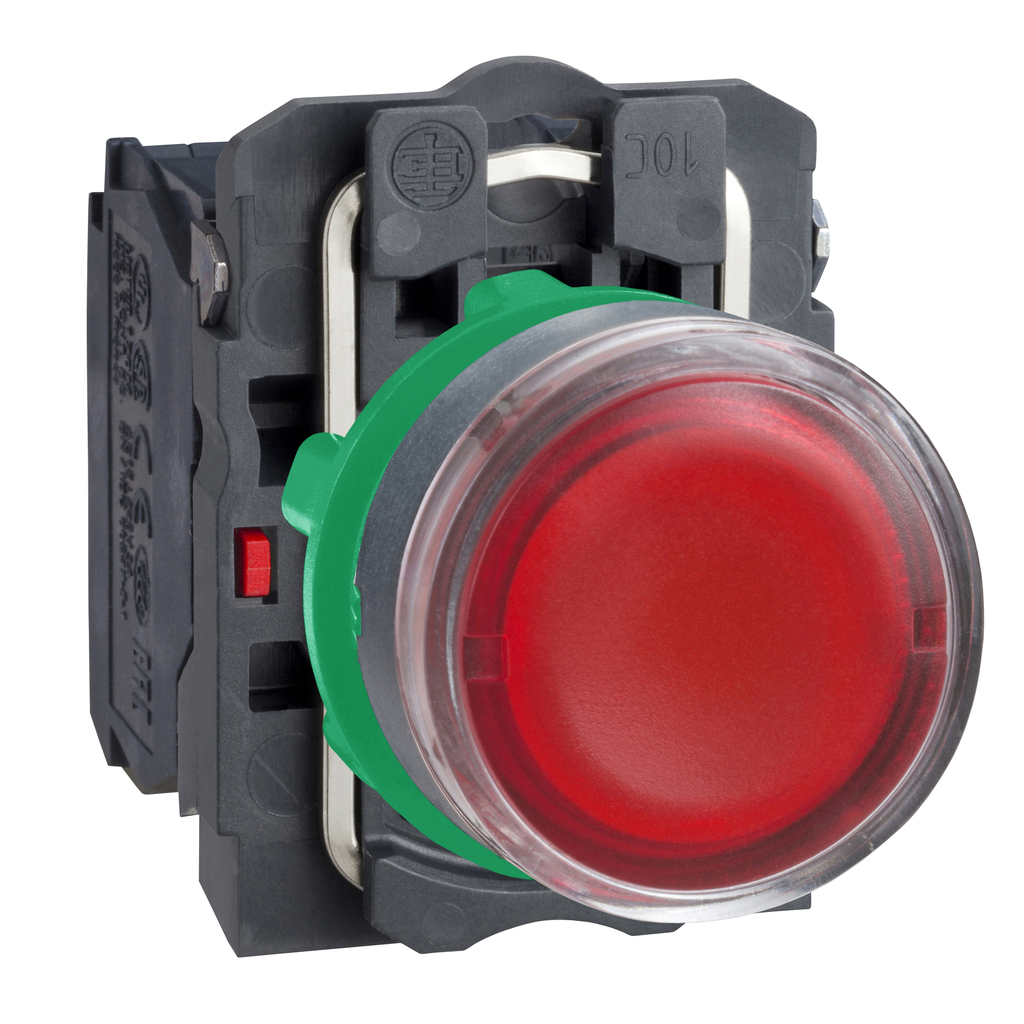

SCHNEIDER ELECTRIC XB5AW3445 Pushbutton Led 120-Volt 22Mm X B5B Plus Options

SCHNEIDER ELECTRIC XB5AW3445 Pushbutton Led 120-Volt 22Mm X B5B Plus Optionszoom

Attributes

Key Value
[Ie] Rated Operational .3 A 240 V, AC-15, A600 .
[Ith] Conventional Free.10 A EN/IEC 60947-5-1
[Ui] Rated Insulation V.600 V 3)EN/IEC 60947-1
[Uimp] Rated Impulse Wi.6 kV EN/IEC 60947-1
[Us] Rated Supply Volta.220...240 V AC 50/60 Hz
Ambient Air Temperature.-40-55 ?C
Ambient Air Temperature.-40-70 ?C
Bezel Materialdark grey plastic
Bulb BaseBA 9s
California Proposition .Lead and lead compounds.
Cap/Operator Or Lens Co.red
CategoryUncategorized
China Rohs RegulationX
Circularity ProfileENVEOLI1710010EN
Contact Operationslow-break
Contacts Materialsilver alloy (Ag/Ni)
Contacts Type And Compo.1 NO + 1 NC
Contacts Usagestandard contacts
Country of Origin (subj.United States
Depth101 mm
Device Presentationcomplete product
Device Short NameXB5
Electrical Durability1000000 cycles, AC-15, .
Environmental DisclosureENVPEP1710010EN
Eu Rohs DirectivePro-active compliance (.
Fixing Collar Materialplastic
Head Typestandard
Height42 mm
Ik Degree Of ProtectionIK05 IEC 50102
Ip Degree Of ProtectionIP66 IEC 60529 || IP69 .
ItemRed flush complete illu.
Light Block Supplyvia integral transforme.
Light Sourceincandescent
Mechanical Durability10000000 cycles
Mercury FreeYes
MfrSchneider Electric
Mounting Diameter22 mm
Nema Degree Of Protecti.NEMA 13 || NEMA 4X
Net Weight0.129 kg
Operating Force3.5 N NC changing elect.
Operating Travel1.5 mm NC changing elec.
Operator Additional Inf.with plain lens
Operator Profilered flush, unmarked
Overvoltage Categoryclass II IEC 60536
PackageBox
Positive Openingwith EN/IEC 60947-5-1 a.
Product CertificationsLROS (Lloyds register o.
Product Or Component Ty.illuminated push-button
Product StatusActive
Protective TreatmentTH
Range Of ProductHarmony XB5
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Resistance To High Pres.7000000 Pa 55 ?C 0.1 m
Rohs Exemption Informat.Yes
Sale Per Indivisible Qu.1
Series*
Shape Of Screw Headcross Philips no 1 || c.
Shape Of Signaling Unit.round
Shock Resistance30 gn 18 ms) half sine .
Short-Circuit Protection10 A cartridge fuse gG .
Signalling Typesteady
StandardsEN/IEC 60947-1 || UL 50.
Sustainable Offer StatusGreen Premium product
Terminals Description I.(21-22)NC || (13-14)NO
Tightening Torque0.8-1.2 N.m EN 60947-1
Type Of Operatorspring return
Vibration Resistance5 gn 2-500 Hz)IEC 60068.
Warranty18 months
WeeeThe product must be dis.
Width30 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG4058519118.01In Stock33Schneider Electric2.2118.0 @ 1
thumbzoomgordonelectricsupply.comXB5AW3445142.091In Stock10SQUARE D142.09 @ 1
thumbzoommayerelectric.comSQDXB5AW3445142.671In StockSQUARE D0.2838142.67 @ 1
thumbzoomRadwellXB5AW3445160.01In StockSCHNEIDER ELECTRIC TELEMECANIQUE160.0 @ 1
Digi-Key16605373168.481In StockSchneider Electric168.48 @ 1
Newark80C6617204.391In StockSCHNEIDER ELECTRIC204.39 @ 1
