- mpnRAD18-182
- brandname: Sta-Kon
- manufacturername: Sta-Kon

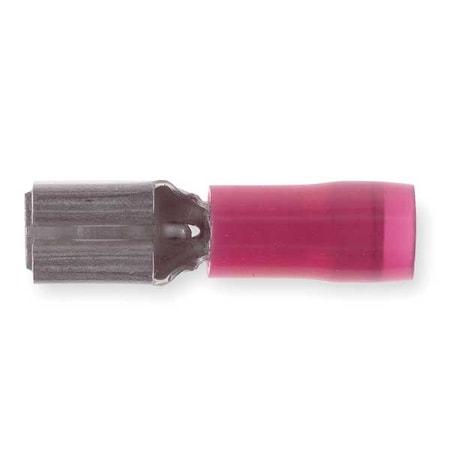

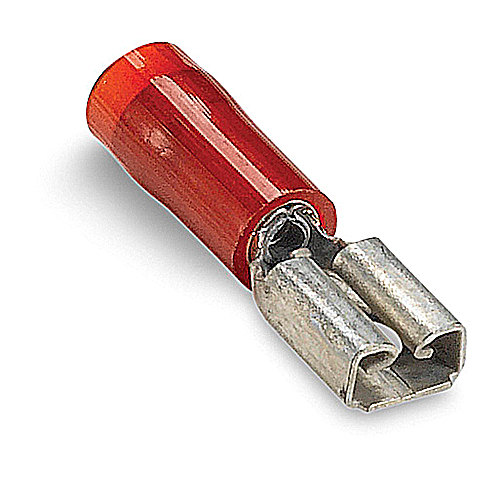

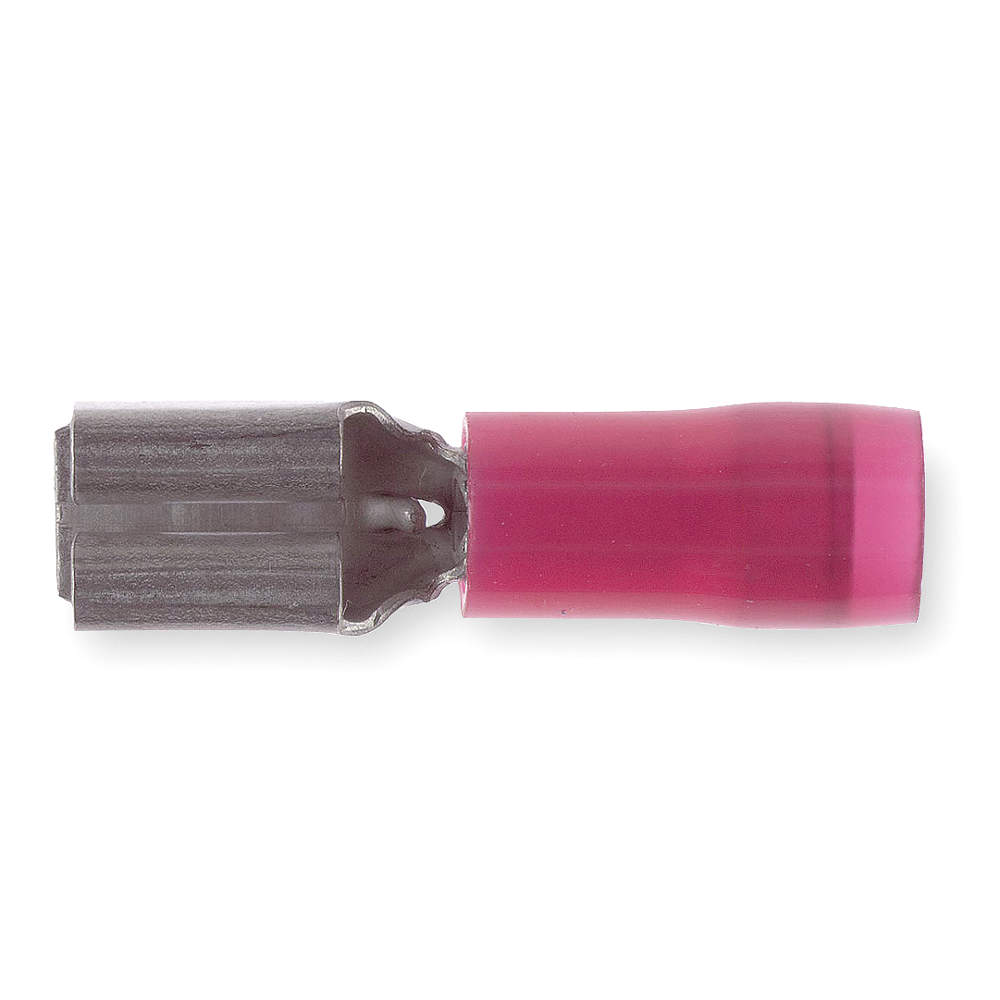

Female Disconnect, Red, 22 to 18 AWG, PK100
- Brand: Sta-Kon
- PartNumber: RAD18-182
- Model: RAD18-182
- PackageQuantity: 1
- Manufacturer: STA-KON
- Label: STA-KON
Attributes
| Key | Value |
|---|
| A (inches) | .83 |
| Alternate Package Qty | RAD1823 |
| Application Tools | WT145C, WT2000, WT112M,. |
| B (inches) | .23 |
| Barrel Inside Dia. | 0.06 in |
| Barrel Inside Diameter | 0.06 in |
| Barrel Size | Long |
| Brand | Sta-Kon |
| Color | Copper, Red |
| Connection Material | Tin-Plated Copper |
| Connection Type | Crimp |
| Current Stock | 22 |
| Disconnect Type | Female - 187 Series |
| Finish | Electro Tin-Plated |
| Flammability Rating | UL 94 V-2 |
| For Wire Size | 18 AWG, 20 AWG, 22 AWG |
| Inner Package | 100 |
| Insulation | Partial |
| Insulation Color | Red |
| Insulation Type | Nylon, Insulated Nylon |
| International Shipping | No |
| Item | Female Disconnect |
| Lead Time | Expected to ship in 1-2. |
| Material | Brass, Nylon |
| Max. Temp. | 221 Degrees F |
| Max. Voltage | 600 V |
| Maximum Insulation (inc. | .136 |
| Maximum Wire Size | 18 AWG |
| Minimum Wire Size | 22 AWG |
| Mpn | RAD18-182 |
| Order Multiple | 100 |
| Outer Package | 500 |
| Overall Length | 0.83 in |
| Package Height | 2.7 |
| Package Length | 7.2 |
| Package Type | Standard |
| Package Width | 3.8 |
| Promotion Restriction | Not eligible for promot. |
| Recommended Tool | ERG4001 |
| RoHS Compliance | Yes (exemption 06) |
| Seam | Overlapped |
| SKU | ZO-G1161492 |
| Standards | UL E66716 |
| Stock Thickness | .03 |
| SubCategory | Electrical |
| T&B Sold in UOM | Each |
| T&B Weight Per UOM | 0.31 lbs. per 100 |
| Tab Size | 0.187 in x 0.020 in, .1. |
| Tab Width | 0.187 in |
| Temperature Rating | 105?C |
| Terminal Series | RAD |
| UPC | 4143639340800 |
| UPC Code | 786210814544 |
| Voltage Rating | 600V |
| Wire Range | 22 to 18 AWG, 22-18 |
| Wire Size Range | 22 AWG - 18 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| us.rs-online.com | 72250617 | 1.22 | 100 | 100 | | Sta-Kon by ABB | | 1.22 @ 100 |
 | mayerelectric.com | TNBRAD18182 | 1.9474 | 1 | 100 | | STA-KON | 0.31 | 1.9474 @ 100 |
 | Zoro | G1161492 | 76.79 | 1 | 100 | | Sta-Kon | 0.25 | 76.79 @ 100 |
| simsupply.com | ZO-G1161492 | 95.55 | 1 | 100 | | Sta-Kon | | 95.55 @ 100 |
 | Raptor Supplies | AC9UTQ | 132.919956 | 1 | 100 | | STA-KON | | 132.919956 @ 100 |
| steinerelectric.com | 36436 | 172.32 | 1 | 100 | | Sta-Kon | | 172.32 @ 100 |
