- mpnBTA20-700CWRG
- brandname: STMicroelectronics
- manufacturername: STMicroelectronics

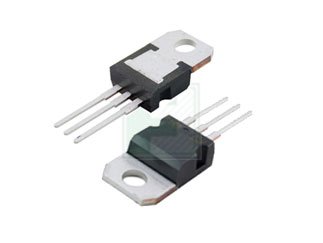

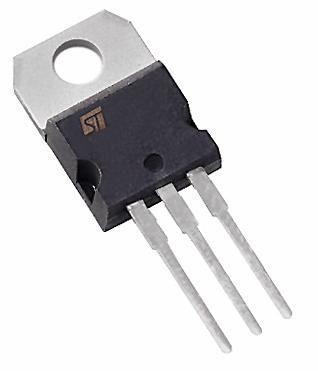

ST MICROELECTRONICS BTA20-700CWRG BTA20 Series 700 V 20 A Flange Mount Snubberless Triac Thyristor - TO-220AB - 50 item(s)
- Brand: STMicroelectronics
- PartNumber: BTA20-700CWRG
- Model: BTA20-700CWRG
- PackageQuantity: 1
- Manufacturer: ST MICROELECTRONICS
- Label: ST MICROELECTRONICS
Attributes
| Key | Value |
|---|
| Alternate Part No. | 511-BTA20-700CW |
| Base Product Number | BTA20 |
| Brand | STMicroelectronics |
| Breakover Current IBO M. | 210 A |
| Case | TO220ABIns |
| Category | Discrete Semiconductor . |
| Configuration | Single, -40?C ~ 125?C (. |
| Current - Gate Trigger . | 50 mA, 35 mA |
| Current - Hold (Ih) (Ma. | 50 mA |
| Current - Non Rep. Surg. | Single, 210A, 200A |
| Current - On State (It . | 1.5 V, 20 A |
| Description | TRIAC ALTERNISTOR 700V . |
| Detailed Description | TRIAC Alternistor - Snu. |
| Digi-Key Part Number | 497-4168-5-ND |
| ECCN EU | EAR99 |
| ECCN US | TO-220AB Ins |
| Gate current | 35mA |
| Gate Trigger Current - . | 35 mA |
| Gate Trigger Voltage - . | 1.5 V |
| Grade | Ecopack2 |
| Holding Current Ih Max | 50 mA |
| Kind of package | Tube |
| Manufacturer | STMicroelectronics |
| Manufacturer Part No. | BTA20-700CWRG |
| Manufacturer Product Nu. | BTA20-700CWRG |
| Manufacturer Standard L. | 15 Weeks |
| Max. load current | 20A |
| Max. off-state voltage | 700V |
| Maximum Operating Tempe. | + 125 C |
| Mfr | STMicroelectronics |
| Minimum Operating Tempe. | - 40 C |
| Mounting | THT |
| Mounting Style | Through Hole |
| Mounting Type | Through Hole, TO-220-3 |
| Non Repetitive On-State. | 210 A |
| Off-State Leakage Curre. | 10 uA |
| On-State Voltage | 1.7 V |
| Operating Temperature | Through Hole, -40?C ~ 1. |
| Package | Active, Tube |
| Package / Case | TO-220AB, TO-220-3 |
| Package Name | Industrial |
| Package/Case | TO-220-3 |
| Packaging | Tube |
| Packing Type | NEC |
| Part Status | Alternistor - Snubberle. |
| Product Category | Triacs |
| Product Status | Active |
| Rated Repetitive Off-St. | 700 V |
| RoHs compliant | Tube |
| Series | BTA20, Tube, Snubberles. |
| Supplier Device Package | 700 V, TO-220 |
| Technology | Snubberless? |
| Triac Type | Alternistor - Snubberle. |
| Type of thyristor | triac |
| Voltage - Gate Trigger . | 1.5 V, 35 mA |
| Voltage - Off State | 20 A, 700 V |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Verical | BTA20-700CWRG | 1.326 | 9 | 25 | | STMicroelectronics | | 1.326 @ 25 |
| Future Electronics | 5053453 | 1.368 | 1000 | 25 | | STMicroelectronics | | 1.368 @ 1000 |
| Hotenda | H1915058 | 1.503 | 1 | 9168 | | STMicroelectronics | | 1.503 @ 25 |
| Mouser | 511-BTA20-700CW | 1.6 | 1 | 471 | | STMicroelectronics | | 1.6 @ 25 |
| Avnet | 45AC6380 | 1.63 | 1 | 25 | | STMicroelectronics | | 1.63 @ 25 |
 | TME | BTA20-700CWRG | 2.27 | 1 | 25 | | STMicroelectronics | | 2.27 @ 25 |
 | st.com | BTA20-700CWRG | 2.39 | 1 | 25 | | STMicroelectronics | | 2.39 @ 25 |
 | Newark | 45AC6380 | 2.66 | 1 | 25 | | STMICROELECTRONICS | | 2.66 @ 25 |
 | electromaker.io | 511-BTA20-700CW | 2.79 | 1 | 2871 | | STMicroelectronics | | 2.79 @ 25 |
 | Digi-Key | 725312 | 3.012 | 1 | 1951 | | STMicroelectronics | | 3.012 @ 25 |
 | swatee.com | BTA20-700CWRG | 3.21 | 1 | 442 | | STMicroelectronics | | 3.21 @ 25 |
| AmazonSC | B07N6J9Q6S | 60.0 | 1 | 25 | | STMicroelectronics | | 60.0 @ 25 |
