- mpnSTD26P3LLH6
- brandname: STMicroelectronics
- manufacturername: STMicroelectronics

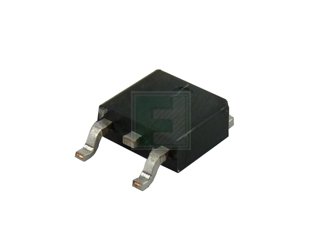

ST MICROELECTRONICS STD26P3LLH6 Single P-Channel 30 V 0.0055 Ohm 12 nC 40 W Silicon SMT Mosfet - TO-252-3 - 2500 item(s)
- Brand: STMicroelectronics
- PartNumber: STD26P3LLH6
- Model: STD26P3LLH6
- PackageQuantity: 1
- Manufacturer: ST MICROELECTRONICS
- Label: ST MICROELECTRONICS
Attributes
| Key | Value |
|---|
| Base Product Number | STD26 |
| Case | DPAK |
| Category | Discrete Semiconductor . |
| Current - Continuous Dr. | 12A (Tc) |
| Description | MOSFET P-CH 30V 12A DPAK |
| Detailed Description | P-Channel 30 V 12A (Tc). |
| Digi-Key Part Number | 497-13938-2-ND - Tape &. |
| Drain current | -8.5A |
| Drain to Source Voltage. | 30 V, 30V |
| Drain-source voltage | -30V |
| Drive Voltage (Max Rds . | 4.5V, 10V |
| Drive Voltage (Max Rds . | 4.5V, 10V |
| ECCN EU | EAR99 |
| ECCN US | DPAK |
| FET Feature | - |
| FET Type | P-Channel |
| Gate Charge (Qg) (Max) . | 12nC @ 4.5V, 12 nC @ 4.. |
| Gate-source voltage | ?20V |
| Grade | Ecopack2 |
| Input Capacitance (Ciss. | 1450 pF @ 25 V, 1450pF . |
| Kind of channel | enhanced |
| Kind of package | reel, |
| Lead Free Status / RoHS. | RoHS Compliant |
| Manufacturer | STMicroelectronics |
| Manufacturer Part Number | STD26P3LLH6 |
| Manufacturer Product Nu. | STD26P3LLH6 |
| Manufacturer Standard L. | 52 Weeks |
| Mfr | STMicroelectronics |
| Mounting | SMD |
| Mounting Type | Surface Mount |
| On-state resistance | 45m? |
| Operating Temperature | 175?C (TJ), 175 |
| Package | Tape & Reel (TR) |
| Package / Case | TO-252-3, DPak (2 Leads. |
| Package Name | Industrial |
| Packaging | Reel |
| Packing Type | NEC |
| Part Status | Active |
| Polarisation | unipolar |
| Power dissipation | 40W |
| Power Dissipation (Max) | 40W (Tc) |
| Product Status | Active |
| Rds On (Max) @ Id, Vgs | 30mOhm @ 6A, 10V |
| RoHs compliant | Tape And Reel |
| Series | DeepGATE?, STripFET? VI. |
| Standard Package | 2,500 |
| Supplier Device Package | DPAK |
| Technology | MOSFET (Metal Oxide) |
| Type of transistor | P-MOSFET |
| Vgs (Max) | ?20V |
| Vgs(th) (Max) @ Id | 2.5V @ 250?A, 2.5V @ 250 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Newark | 98Y2470 | 0.448 | 1 | 2500 | | STMICROELECTRONICS | | 0.448 @ 2500 |
| iodParts | STD26P3LLH6 | 0.479 | 500 | 7500 | | STMicroelectronics | | 0.479 @ 2500 |
| Future Electronics | 7054339 | 0.498 | 2500 | 2500 | | STMicroelectronics | | 0.498 @ 2500 |
| Hotenda | H1815942 | 0.6468 | 1 | 2500 | | STMicroelectronics | | 0.6468 @ 2500 |
 | TME | STD26P3LLH6 | 0.7 | 1 | 2500 | | STMicroelectronics | | 0.7 @ 2500 |
.jpg) | Digi-Key | 4357547 | 0.702072 | 1 | 52503 | | STMicroelectronics | | 0.702072 @ 2500 |
 | st.com | STD26P3LLH6 | 0.83 | 1 | 2500 | | STMicroelectronics | | 0.83 @ 2500 |
| RS Delivers | 792-5717 | 1.8024 | 1 | 2500 | | STMicroelectronics | | 1.8024 @ 2500 |
