STMicroelectronics STD7LN80K5

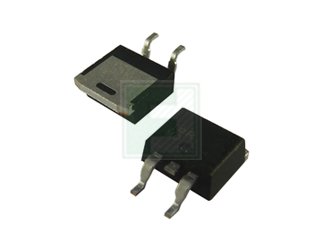

ST MICROELECTRONICS STD7LN80K5 N-Channel 800 V 1.15 Ohm Surface Mount MDmesh Power Mosfet - DPAK - 2500 item(s)

ST MICROELECTRONICS STD7LN80K5 N-Channel 800 V 1.15 Ohm Surface Mount MDmesh Power Mosfet - DPAK - 2500 item(s)zoom

Attributes

Key Value
Base Product NumberSTD7LN80
CategoryDiscrete Semiconductor .
Current - Continuous Dr.5A (Tc)
Drain to Source Voltage.800 V
Drive Voltage (Max Rds .10V
ECCN EUEAR99
ECCN USIndustrial
FET Feature-
FET TypeN-Channel
Gate Charge (Qg) (Max) .12 nC @ 10 V
GradeEcopack2
Input Capacitance (Ciss.270 pF @ 100 V
MfrSTMicroelectronics
Mounting TypeSurface Mount
Operating RangeDPAK
Operating Temperature-55?C ~ 150?C (TJ)
PackageTape & Reel (TR)
Package / CaseTO-252-3, DPak (2 Leads.
Package NameIndustrial
Packing TypeNEC
Power Dissipation (Max)85W (Tc)
Product StatusActive
Rds On (Max) @ Id, Vgs1.15Ohm @ 2.5A, 10V
RoHs compliantTape And Reel
SeriesMDmesh?
Supplier Device PackageDPAK
TechnologyMOSFET (Metal Oxide)
Vgs (Max)?30V
Vgs(th) (Max) @ Id5V @ 100?A

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Future Electronics10908201.56125STMicroelectronics1.56 @ 25
thumbzoomst.comSTD7LN80K51.7125STMicroelectronics1.7 @ 25
thumbzoomNewark47AK69341.9512200STMICROELECTRONICS1.95 @ 25
Digi-Key60036332.34025125STMicroelectronics2.34025 @ 25
