STMicroelectronics STPS140ZY

mpnSTPS140ZY
brandname: STMicroelectronics
manufacturername: STMicroelectronics

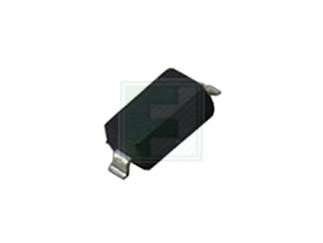

ST MICROELECTRONICS STPS140ZY Automotive power Schottky rectifier - 10 item(s)

ST MICROELECTRONICS STPS140ZY Automotive power Schottky rectifier - 10 item(s)

zoom

Brand: STMicroelectronics
PartNumber: STPS140ZY
Model: STPS140ZY
PackageQuantity: 1
Manufacturer: ST MICROELECTRONICS
Label: ST MICROELECTRONICS

Attributes

Key	Value
Alternate Part No.	511-STPS140ZY
Application	automotive industry
Base Product Number	STPS140
Brand	STMicroelectronics
Capacitance @ Vr, F	-
Case	SOD123
Category	Discrete Semiconductor .
Configuration	Single
Current - Average Recti.	1A (DC)
Current - Reverse Leaka.	40 ?A @ 400 V
Diode Type	Schottky
ECCN EU	EAR99
ECCN US	SOD-123
Forward Continuous Curr.	1 A
Forward Voltage Drop	0.45 V
Grade	Ecopack2
Kind of package	reel,
Leakage current	5mA
Load current	1A
Manufacturer	STMicroelectronics
Manufacturer Part No.	STPS140ZY
Max Surge Current	5.5 A
Max. forward impulse cu.	5.5A
Max. forward voltage	550mV
Max. off-state voltage	40V
Maximum Operating Tempe.	+ 150 C
Maximum Reverse Leakage.	0.5 A
Mfr	STMicroelectronics
Minimum Operating Tempe.	- 40 C
Mounting	SMD
Mounting Style	SMD/SMT
Mounting Type	Surface Mount
Operating Temperature -.	-40?C ~ 150?C
Package	Tape & Reel (TR)
Package / Case	SOD-123
Package Name	Automotive
Package/Case	SOD-123-2
Packing Type	NEC
Part Status	Active
Peak Reverse Voltage	40 V
Product	Schottky Rectifiers
Product Category	Schottky Diodes & Recti.
RoHs compliant	Tape And Reel
Semiconductor structure	single diode
Series	STPS140-Y, Automotive, .
Speed	Fast Recovery =< 500ns,.
Supplier Device Package	SOD-123
Technology	Silicon
Type of diode	Schottky rectifying
Voltage - DC Reverse (V.	40 V
Voltage - Forward (Vf) .	550 mV @ 1 A

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	TME	STPS140ZY	0.19	5	10		STMicroelectronics		0.19 @ 10
	Newark	30AC0912	0.218	6000	10		STMICROELECTRONICS		0.218 @ 6000
	Future Electronics	C013396458	0.2352	3000	10		STMicroelectronics		0.2352 @ 3000
	st.com	STPS140ZY	0.49	1	10		STMicroelectronics		0.49 @ 10
	Digi-Key	4250512	0.6003	1000	10		STMicroelectronics		0.6003 @ 10
	swatee.com	STPS140ZY	1.29	1	2390		STMicroelectronics		1.29 @ 10
