- mpnSTQ1NK80ZR-AP
- brandname: STMicroelectronics
- manufacturername: STMicroelectronics

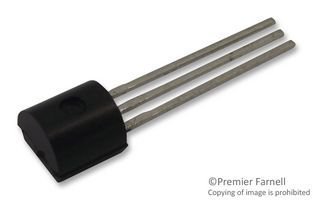

STMICROELECTRONICS STQ1NK80ZR-AP MOSFET, N-CH, 800V, 0.3A, TO-92 (10 pieces)
- PackageQuantity: 10
- Manufacturer: STMICROELECTRONICS
- Label: STMICROELECTRONICS
Attributes
| Key | Value |
|---|
| Base Product Number | STQ1NK80 |
| Category | Discrete Semiconductor . |
| Current - Continuous Dr. | 300mA (Tc) |
| Description | MOSFET N-CH 800V 300MA . |
| Detailed Description | N-Channel 800 V 300mA (. |
| Digi-Key Part Number | 497-6197-1-ND - Cut Tap. |
| Drain to Source Voltage. | 800V, 800 V |
| Drive Voltage (Max Rds . | 10V |
| Drive Voltage (Max Rds . | 10V |
| ECCN EU | EAR99 |
| ECCN US | TO-92 |
| FET Feature | - |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) . | 7.7nC @ 10V, 7.7 nC @ 1. |
| Grade | Ecopack2 |
| Input Capacitance (Ciss. | 160pF @ 25V, 160 pF @ 2. |
| Lead Free Status / RoHS. | RoHS Compliant |
| Manufacturer | STMicroelectronics |
| Manufacturer Part Number | STQ1NK80ZR-AP |
| Manufacturer Product Nu. | STQ1NK80ZR-AP |
| Manufacturer Standard L. | 8 Weeks, 50 Weeks |
| Mfr | STMicroelectronics |
| Mounting Type | Through Hole |
| Operating Temperature | -55, -55?C ~ 150?C (TJ) |
| Package | Cut Tape (CT) |
| Package / Case | TO-226-3, TO-92-3 (TO-2. |
| Package Name | Industrial |
| Packaging | Reel |
| Packing Type | NEC |
| Power Dissipation (Max) | 3W (Tc) |
| Product Status | Active |
| Rds On (Max) @ Id, Vgs | 16Ohm @ 500mA, 10V |
| RoHs compliant | Ammopack |
| Series | SuperMESH?, SuperMESH |
| Standard Package | 2,000 |
| Supplier Device Package | TO-92-3 |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | ?30V |
| Vgs(th) (Max) @ Id | 4.5V @ 50?A, 4.5V @ 50 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Hotenda | H1815102 | 0.27405 | 1 | 4000 | | STMicroelectronics | | 0.27405 @ 1000 |
| iodParts | STQ1NK80ZR-AP | 0.302 | 1000 | 8000 | | STMicroelectronics | | 0.302 @ 1000 |
| Future Electronics | 7533789 | 0.342 | 4000 | 1000 | | STMicroelectronics | | 0.342 @ 4000 |
 | Newark | 01X0057 | 0.425 | 1 | 37822 | | STMICROELECTRONICS | | 0.425 @ 1000 |
 | st.com | STQ1NK80ZR-AP | 0.44 | 1 | 1000 | | STMicroelectronics | | 0.44 @ 1000 |
 | Digi-Key | 1653994 | 0.475332 | 1 | 1000 | | STMicroelectronics | | 0.475332 @ 1000 |
