TL431ACZ-AP

mpnTL431ACZ-AP
brandname: STMICROELECTRONICS
manufacturername: STMICROELECTRONICS

Voltage References 2.5-36V Prog Adjust (100 pieces)

Voltage References 2.5-36V Prog Adjust (100 pieces)

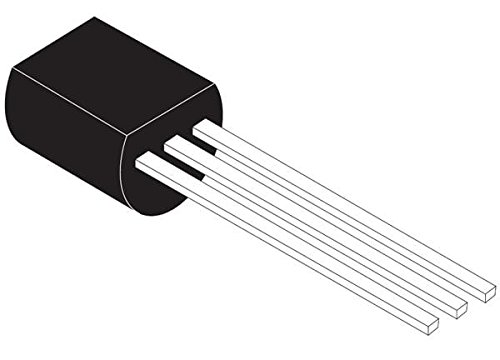

zoom

PartNumber: TL431ACZ-AP
PackageQuantity: 100
Manufacturer: STMicroelectronics
Label: STMicroelectronics

Attributes

Key	Value
Alternate Part No.	511-TL431ACZ-AP
Average Temperature Coe.	100 PPM / C
Base Product Number	TL431
Brand	STMicroelectronics
Category	Integrated Circuits (IC.
Current - Cathode	600 ?A
Current - Output	100 mA
Current - Supply	-
Description	IC VREF SHUNT ADJ 1% TO.
Detailed Description	Shunt Voltage Reference.
Digi-Key Part Number	497-12881-1-ND - Cut Ta.
ECCN EU	EAR99
ECCN US	70.0
Grade	Ecopack2
Initial Accuracy	1 %
Input Voltage	2.52 V
Manufacturer	STMicroelectronics
Manufacturer Part No.	TL431ACZ-AP
Manufacturer Product Nu.	TL431ACZ-AP
Manufacturer Standard L.	24 Weeks
Maximum Operating Tempe.	+ 70 C
Mfr	STMicroelectronics
Minimum Operating Tempe.	0 C
Mounting Style	Through Hole
Mounting Type	Through Hole
Noise - 0.1Hz to 10Hz	-
Noise - 10Hz to 10kHz	-
Operating Temp Max Cels.	0.0
Operating Temp Min Cels.	TO-92
Operating Temperature	0?C ~ 70?C (TA)
Output Type	Adjustable
Output Voltage	Adjustable
Package	Cut Tape (CT)
Package / Case	TO-226-3, TO-92-3 (TO-2.
Package Name	Industrial
Package/Case	TO-92-3
Packaging	Ammo Pack
Packing Type	NEC
Product Category	Voltage References
Product Status	Active
Reference Type	Shunt Adjustable Precis.
RoHs compliant	Ammopack
Series	TL431A, -
Series VREF - Input Vol.	37 V
Shunt Current - Max	100 mA
Shunt Current - Min	1 mA
Supplier Device Package	TO-92-3
Supply Current	100 mA
Temperature Coefficient	-
Tolerance	?1%
Voltage - Input	-
Voltage - Output (Max)	36 V
Voltage - Output (Min/F.	2.495V

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Win Source	TL431ACZ-AP	0.11	300	22000		STMicroelectronics		0.11 @ 5
	Future Electronics	6104457	0.1452	2000	6000		STMicroelectronics		0.1452 @ 2000
	Hotenda	H2725022	0.39	1	5		STMicroelectronics		0.39 @ 5
	Newark	33R1374	0.436	5	1425		STMICROELECTRONICS		0.436 @ 5
	st.com	TL431ACZ-AP	0.62	1	5		STMicroelectronics		0.62 @ 5
	Digi-Key	1039976	0.69	1	5		STMicroelectronics		0.69 @ 5
	RS Delivers	714-7816	0.6936	1	5		STMicroelectronics		0.6936 @ 5
	swatee.com	TL431ACZ-AP	0.94	1	9822		STMicroelectronics		0.94 @ 5
