SULLINS PBC04SAAN

B073RPSDVR

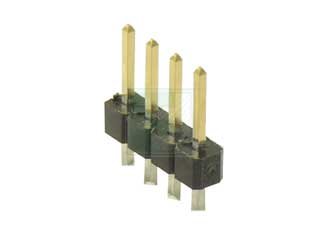

SULLINS PBC04SAAN PBC Series Single Row 4 Position 2.54 mm Pitch Straight Breakaway Header - 25 item(s)

SULLINS PBC04SAAN PBC Series Single Row 4 Position 2.54 mm Pitch Straight Breakaway Header - 25 item(s)zoom

Attributes

Key Value
Applications-
Base Product NumberPBC04
CategoryConnectors, Interconnec.
Connector TypeHeader, Breakaway
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.10.0?in (0.25?m)
Contact Finish Thicknes.100.0?in (2.54?m)
Contact Length - Mating0.230" (5.84mm), 0.230".
Contact Length - Post0.120"" (3.05mm), 0.120.
Contact MaterialPhosphor Bronze
Contact ShapeSquare
Contact TypeMale Pin
Current Rating (Amps)3A
Fastening TypePush-Pull
Features-
Ingress Protection-
Insulation ColorBlack
Insulation Height0.100"" (2.54mm), 0.100.
Insulation MaterialPolybutylene Terephthal.
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrSullins Connector Solut.
Mounting TypeThrough Hole
Number of Positions4
Number of Positions Loa.All
Number of Rows1
Operating Temperature-65?C ~ 125?C
Overall Contact Length0.450"" (11.43mm), 0.45.
PackageBulk
Part StatusActive
Pitch - Mating0.100"" (2.54mm), 0.100.
Product StatusActive
Row Spacing - Mating-
Series-
ShroudingUnshrouded
StyleBoard to Board or Cable
TerminationSolder
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Heilind ElectronicsPBC04SAAN0.1883100025SULLINS0.1883 @ 1000
Digi-Key8596250.328125Sullins Connector Solutions0.328 @ 25
HotendaH13137370.579125Sullins Connector Solutions0.579 @ 25
