| ANSI Code | 2NC-CCGA32.50.5 |
| ANSI Number | 2NCCCGA32.50.5-BNC2020 |
| Cast Iron (K) Compatibility, Chip-Breaker, Non Ferrous (N) Compatibility, Stainless (M) Compatibility, Super Alloy (S) Compatibility | No |
| Clearance Angle | 7 Degrees |
| Coating | Cermet |
| Corner Radius | 0.0079 in |
| Country of Origin (subject to change) | Multiple |
| Cutting Application | Turning |
| Cutting Direction | Neutral |
| Depth of Cut | 0.0150 in |
| Features | Excellent Wear Resistance and Breakage Resistance |
| For Use With | Toolholders, Boring Bars |
| Grade, Manufacturer Grade | BNC2020 |
| Hardened (H) Compatibility, Steel (P) Compatibility | Yes |
| Included Angle | 80 Degrees |
| Inscribed Circle | 3/8 in |
| Insert Application | Finishing |
| Insert Holding Type | Straight Hole |
| Insert Material, Material, Material - Machining | CBN |
| Insert Shape | Diamond |
| Insert Size | 32.50.5 |
| Insert Style | CCGA |
| Insert Thickness | 0.0156" |
| ISO Number | 2NC-CCGW09T302 |

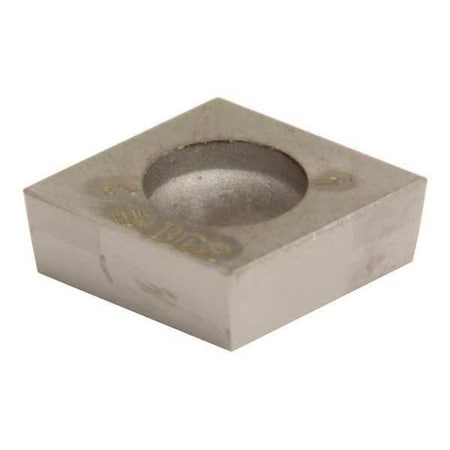

| Item | Diamond Turning Insert |
| Measurement System | Fractional Inch |
| Mounting Hole Dia. | 0.173" |
| Mounting Style | Screw-On |
| No. of Edges, Number of Cutting Edges | 2 |
| Nose Radius | 0.0078" |
| Primary Material Application | Hardened Steel |
| Primary Material Application ISO Code | H20 - H30 |
| Rake | Positive |
| Shape | Rhombic |
| Thickness | 5/32 in |
| Workpiece Compatibility | Hardened (H), Steel (P) |
