| ANSI Code | 2NU-DCGT32.52LV |
| ANSI Number | 2NUDCGT32.52LV-BN2000 |
| Cast Iron (K) Compatibility | Yes |
| Chip-Breaker | Yes |
| Chip-Breaker Code | LV |
| Chip-Breaker Style | Single |
| Clearance Angle | 7 Degrees |
| Coating | CVD |
| Corner Radius | 1/32 in |
| Country of Origin (subject to change) | Multiple |
| Cutting Application | Turning |
| Cutting Direction | Neutral |
| Depth of Cut | 0.0150 in |
| Features | Excellent Wear Resistance and Fracture Resistance |
| Finish - Machining | Bright (Uncoated) |
| For Use With | Toolholders, Boring Bars |
| Grade | BN2000 |
| Hardened (H) Compatibility | Yes |
| Included Angle | 55 Degrees |
| Inscribed Circle | 3/8 in |
| Insert Application | Finishing |
| Insert Holding Type | Countersink Hole |
| Insert Material | CBN |
| Insert Shape | Diamond |
| Insert Size | 32.52 |
| Insert Style | DCGT |
| Insert Thickness | 0.1560" |
| ISO Number | 2NU-DCGT11T308LV |

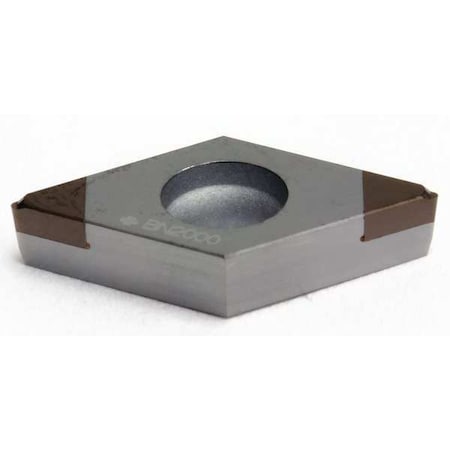

| Item | Diamond Turning Insert |
| Manufacturer Grade | BN2000 |
| Material | CBN |
| Material - Machining | CBN |
| Measurement System | Fractional Inch |
| Mounting Hole Dia. | 0.173" |
| Mounting Style | Screw-On |
| No. of Edges | 2 |
| Non Ferrous (N) Compatibility | No |
| Nose Radius | 0.0156" |
| Number of Cutting Edges | 2 |
| Primary Material Application | Hardened Steel |
| Primary Material Application ISO Code | H10 - H20 |
| Rake | Positive |
| Shape | Rhombic |
| Stainless (M) Compatibility | No |
| Steel (P) Compatibility | Yes |
| Super Alloy (S) Compatibility | Yes |
| Thickness | 5/32 in |
| Wiper Insert | Yes |
| Workpiece Compatibility | Cast Iron (K), Hardened (H), Steel (P), Super Alloy (S) |
