| ANSI Code | 4NC-DNGG432FV |
| ANSI Number | 4NCDNGG432FV-BNC2020 |
| Cast Iron (K) Compatibility | No |
| Chip-Breaker | Yes |
| Chip-Breaker Code | FV |
| Chip-Breaker Style | Double |
| Clearance Angle | 0 Degrees |
| Coating | CVD |
| Corner Radius | 1/32 in |
| Country of Origin (subject to change) | Multiple |
| Cutting Application | Turning |
| Cutting Direction | Neutral |
| Depth of Cut | 0.0150 in |
| Features | Excellent Wear Resistance and Breakage Resistance |
| For Use With | Toolholders, Boring Bars |
| Grade | BNC2020 |
| Hardened (H) Compatibility | Yes |
| Included Angle | 55 Degrees |
| Inscribed Circle | 1/2 in |
| Insert Application | Finishing |
| Insert Holding Type | Straight Hole |
| Insert Material | CBN |
| Insert Shape | Diamond |
| Insert Size | 432 |
| Insert Style | DNGG |
| Insert Thickness | 0.1875" |
| ISO Number | 4NC-DNGG150408FV |

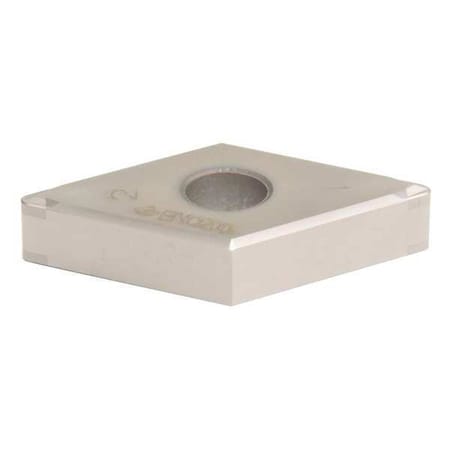

| Item | Diamond Turning Insert |
| Manufacturer Grade | BNC2020 |
| Material | CBN |
| Material - Machining | CBN |
| Measurement System | Fractional Inch |
| Mounting Hole Dia. | 0.203" |
| Mounting Style | Top and Hole Clamping |
| No. of Edges | 4 |
| Non Ferrous (N) Compatibility | No |
| Nose Radius | 0.0313" |
| Number of Cutting Edges | 4 |
| Primary Material Application | Hardened Steel |
| Primary Material Application ISO Code | H20 - H30 |
| Rake | Negative |
| Shape | Rhombic |
| Stainless (M) Compatibility | No |
| Steel (P) Compatibility | Yes |
| Super Alloy (S) Compatibility | No |
| Thickness | 3/16 in |
| Workpiece Compatibility | Hardened (H), Steel (P) |
