| ANSI Code | CNMG542EMX |
| ANSI Number | CNMG542EMX-AC8025P |
| Cast Iron (K) Compatibility, Chip-Breaker, Stainless (M) Compatibility, Steel (P) Compatibility | Yes |
| Chip-Breaker Code | EMX |
| Chip-Breaker Style | Double |
| Clearance Angle | 0 Degrees |
| Coating | Cermet |
| Coating Process | CVD |
| Corner Radius | 2 |
| Country of Origin (subject to change) | Japan |
| Cutting Application | Turning |
| Cutting Direction | Neutral |
| Features | Adhesion Resistant, Chipping Resistant |
| Finish - Machining | Absotech Platinum |
| For Use With | Toolholders, Boring Bars |
| Grade, Manufacturer Grade | AC8025P |
| Hardened (H) Compatibility, Non Ferrous (N) Compatibility, Super Alloy (S) Compatibility | No |
| Included Angle | 80 Degrees |
| Inscribed Circle | 5 |
| Insert Application | Roughing |
| Insert Code | CNMG542 |
| Insert Holding Type | Straight Hole |
| Insert Material, Material, Material - Machining | Carbide |
| Insert Shape | Diamond |
| Insert Size | 542 |
| Insert Style | CNMG |
| Insert Thickness | 0.2500" |
| ISO Number | CNMG160608N-MX |

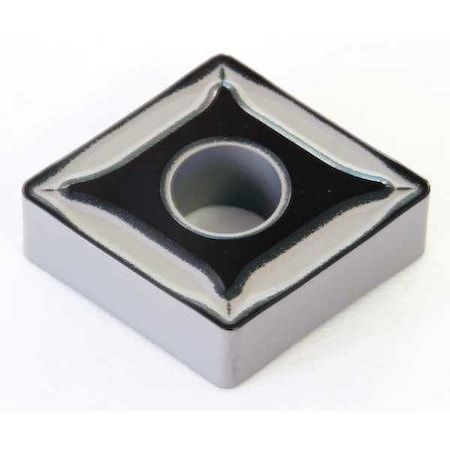

| Item | Diamond Turning Insert |
| Measurement System | Fractional Inch |
| Mounting Hole Dia. | 0.250" |
| Mounting Style | Top and Hole Clamping |
| No. of Edges, Number of Cutting Edges, Thickness | 4 |
| Nose Radius | 0.0313" |
| Primary Material Application | Steel |
| Primary Material Application ISO Code | P25 |
| Rake | Negative |
| Shape | Rhombic |
| Workpiece Compatibility | Cast Iron (K), Stainless (M), Steel (P) |
