| ANSI Code, ANSI Number, ISO Number | LNEX130604PNER-L-ACP200 |
| Cast Iron (K) Compatibility, Hardened (H) Compatibility, Non Ferrous (N) Compatibility, Steel (P) Compatibility, Super Alloy (S) Compatibility | No |
| Chip-Breaker Code | L |
| Chip-Breaker Style | 10 Degrees Rake Angle |
| Chip-Breaker, Stainless (M) Compatibility, Wiper Insert | Yes |
| Clearance Angle, Lead Angle | 0 Degrees |
| Coating, Coating Process | PVD |
| Corner Radius | 1/64 in |
| Country of Origin (subject to change) | Japan |
| Cutting Application, Insert Application | Medium |
| Cutting Direction | Right Hand |
| Cutting Edge Length | 13.00mm |
| Depth of Cut | 12.00mm |
| Features | Excellent Balance of Fracture and Wear Resistance |
| Finish - Machining | TiAlN+AlCrN |
| For Toolholder | TSX41000M12Z2, TSX41250M16Z3, TSX41500M16Z4, TSXF30750M10Z3, TSXF31000M12Z4, TSXF31250M16Z5, TSXF31500M16Z6 |
| For Use With | Shoulder Milling Cutters |
| Grade, Manufacturer Grade | ACP200 |
| Hole Type | Straight or Countersink Hole |
| Inscribed Circle | 0.180 in |
| Insert Holding Type, Mounting Style | Screw-On |
| Insert Material, Material - Machining | Carbide |
| Insert Shape | Rectangle |
| Insert Size | 130604 |
| Insert Style | LNMX |
| Insert Thickness | 0.250" |

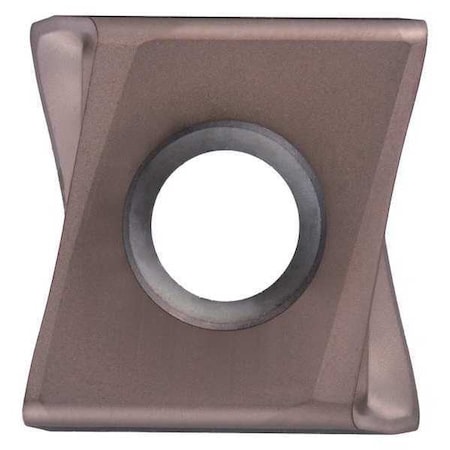

| Item | Diamond Milling Insert |
| Measurement System | Metric |
| No. of Edges, Number of Cutting Edges | 4 |
| Nose Radius | 0.010" |
| Primary Material Application | Steel |
| Primary Material Application ISO Code | P |
| Rake | -31 Degrees to -15 Degrees Radial, -6 Degrees Axial |
| Secondary Material Application | Stainless Steel |
| Secondary Material Application ISO Code | M |
| Shape | Rectangular |
| Thickness | 0.250 in |
| Width | 12.60mm |
| Workpiece Compatibility | Steel (P) |
