| ANSI Code | TNMG433EMU |
| ANSI Number | TNMG433EMU-AC700G |
| Cast Iron (K) Compatibility | Yes |
| Chip-Breaker | Yes |
| Chip-Breaker Code | EMU |
| Chip-Breaker Style | Double Sided |
| Clearance Angle | 0 Degrees |
| Coating | Super FF TiCN/Al2O3/TiN CVD |
| Coating Process | CVD |
| Corner Radius | 0.0468 in |
| Country of Origin (subject to change) | Japan |
| Cutting Application | Turning |
| Cutting Direction | Neutral |
| Features | Excellent Wear Resistance |
| Finish - Machining | Al203+TiCN |
| For Use With | MTAN, MTENN, MTGN Toolholders, A-MTFN Boring Bars |
| Grade | AC700G |
| Hardened (H) Compatibility | No |
| Included Angle | 60 Degrees |
| Inscribed Circle | 1/2 in |
| Insert Application | Roughing |
| Insert Holding Type | Straight Hole |
| Insert Material | Carbide |
| Insert Shape | Triangle |
| Insert Size | 433 |
| Insert Style | TNMG |
| Insert Thickness | 0.1875" |
| ISO Number | TNMG220412NMU |

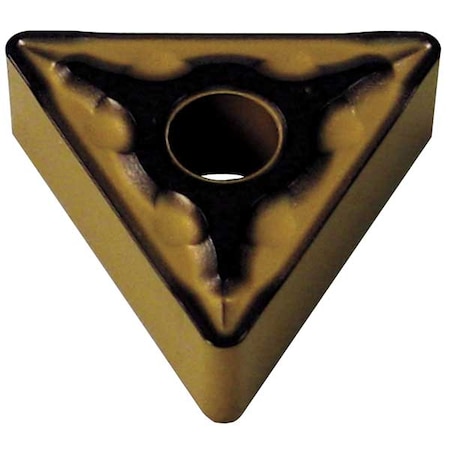

| Item | Triangle Turning Insert |
| Manufacturer Grade | AC700G |
| Material | Carbide |
| Material - Machining | Carbide |
| Measurement System | Fractional Inch |
| Mounting Hole Dia. | 0.203 |
| Mounting Style | Clamp |
| No. of Edges | 6 |
| Non Ferrous (N) Compatibility | No |
| Nose Radius | 0.0472" |
| Primary Material Application | Steel |
| Primary Material Application ISO Code | P |
| Rake | 4 Degrees |
| Relief Angle | 0 Degrees |
| Shape | Triangle |
| Stainless (M) Compatibility | No |
| Steel (P) Compatibility | No |
| Super Alloy (S) Compatibility | No |
| Thickness | 0.1875 in |
| Through Hole Inside Dia. | 0.2031 in |
| Workpiece Compatibility | Cast Iron (K) |
