| ANSI Code, Insert Code | TPG321 |
| ANSI Number | TPG321-T1500Z |
| Cast Iron (K) Compatibility, Chip-Breaker, Hardened (H) Compatibility, Non Ferrous (N) Compatibility, Super Alloy (S) Compatibility | No |
| Clearance Angle | 11 Degrees |
| Coating | Uncoated |
| Coating Process | PVD |
| Corner Radius | 0.0156 in |
| Country of Origin (subject to change) | Japan |
| Cutting Application | Turning |
| Cutting Direction | Neutral |
| Features | Excellent Wear Resistance |
| For Use With | Toolholders, Boring Bars |
| Grade, Manufacturer Grade | T1500Z |
| Included Angle | 60 Degrees |
| Inscribed Circle | 3/8 in |
| Insert Application | Roughing |
| Insert Holding Type | No Screw Hole |
| Insert Material, Material, Material - Machining | Cermet |
| Insert Shape, Shape | Triangle |
| Insert Size | 321 |
| Insert Style | TPG |
| Insert Thickness | 0.1250" |
| ISO Number | TPGN160304 |

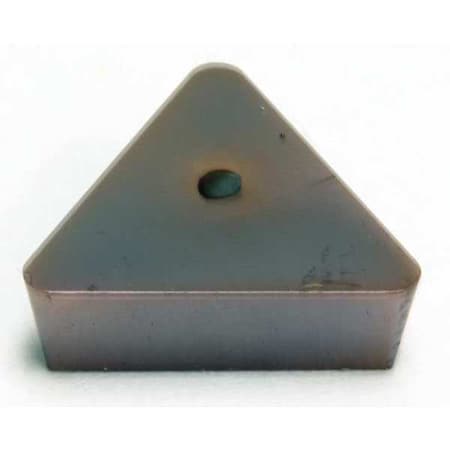

| Item | Triangle Turning Insert |
| Measurement System | Fractional Inch |
| Mounting Style | Screw-On |
| No. of Edges, Number of Cutting Edges | 3 |
| Nose Radius | 0.0156" |
| Primary Material Application | Steel |
| Primary Material Application ISO Code | P |
| Rake | Positive |
| Stainless (M) Compatibility, Steel (P) Compatibility | Yes |
| Thickness | 2 |
| Workpiece Compatibility | Stainless (M), Steel (P) |
