| ANSI Code | TPGG332L |
| ANSI Number | TPGG332L-T1500A |
| Cast Iron (K) Compatibility, Hardened (H) Compatibility, Non Ferrous (N) Compatibility, Super Alloy (S) Compatibility | No |
| Chip-Breaker Style | Double Sided |
| Chip-Breaker, Stainless (M) Compatibility, Steel (P) Compatibility | Yes |
| Clearance Angle | 11 Degrees |
| Coating | Uncoated |
| Corner Radius | 0.0312 in |
| Country of Origin (subject to change) | Japan |
| Cutting Application | Turning |
| Cutting Direction | Left Hand |
| Features | Fracture Resistant, Wear Resistant |
| For Use With | Toolholders, Boring Bars |
| Grade, Manufacturer Grade | T1500A |
| Included Angle | 60 Degrees |
| Inscribed Circle | 3/8 in |
| Insert Application | Finishing |
| Insert Holding Type | Straight Hole |
| Insert Material, Material, Material - Machining | Cermet |
| Insert Shape, Shape | Triangle |
| Insert Size | 332 |
| Insert Style | TPGG |
| Insert Thickness | 0.1875" |
| ISO Number | TPGT160408L-SD |

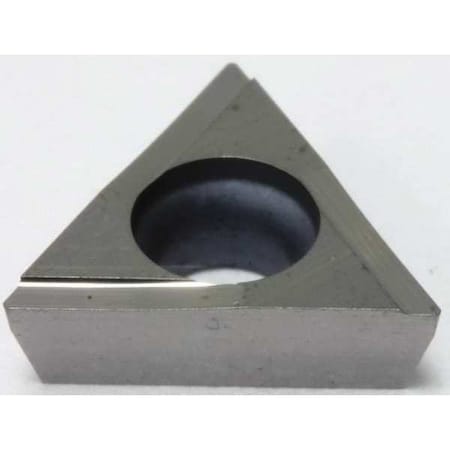

| Item | Triangle Turning Insert |
| Measurement System | Fractional Inch |
| Mounting Hole Dia. | 0.169" |
| Mounting Style | Screw-On |
| No. of Edges, Number of Cutting Edges | 3 |
| Nose Radius | 0.0313" |
| Primary Material Application | Stainless Steel, Steel |
| Primary Material Application ISO Code | M, P |
| Rake | 0 Degrees |
| Thickness | 0.1875 in |
| Through Hole Inside Dia. | 0.1693 in |
| Workpiece Compatibility | Stainless (M), Steel (P) |
