| ANSI Code, ANSI Number | TPGT630RFY |
| Cast Iron (K) Compatibility, Chip-Breaker, Non Ferrous (N) Compatibility, Stainless (M) Compatibility, Steel (P) Compatibility, Super Alloy (S) Compatibility | Yes |
| Chip-Breaker Code | FY |
| Chip-Breaker Style | On One Side |
| Clearance Angle | 11 Degrees |
| Coating, Coating Process | PVD |
| Corner Radius | 0.0039 in |
| Country of Origin (subject to change) | Japan |
| Cutting Application | Turning |
| Cutting Direction | Neutral |
| Features | Excellent Wear Resistance |
| Finish - Machining | AlTiSiN |
| For Use With | Toolholders, Boring Bars |
| Grade, Manufacturer Grade | AC5015S |
| Hardened (H) Compatibility | No |
| Included Angle | 60 Degrees |
| Inscribed Circle | 3/4 in |
| Insert Application | Finishing |
| Insert Code | TPGT63.2 |
| Insert Holding Type | Countersink Hole |
| Insert Material, Material, Material - Machining | Carbide |
| Insert Shape, Shape | Triangle |
| Insert Size | 630 |
| Insert Style | TPGT |
| Insert Thickness | 0.093" |
| ISO Number | TPGT080201R-FY |

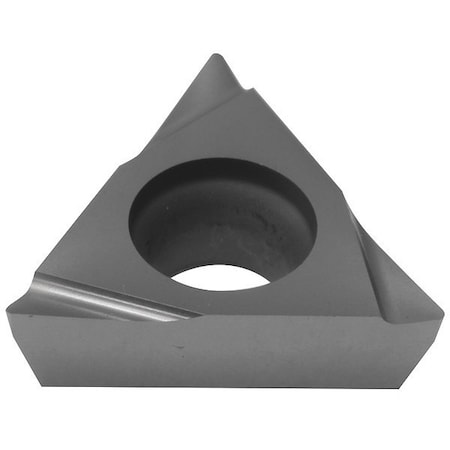

| Item | Triangle Turning Insert |
| Measurement System | Fractional Inch |
| Mounting Hole Dia. | 0.090" |
| Mounting Style | Screw |
| No. of Edges, Number of Cutting Edges, Thickness | 3 |
| Nose Radius | 0.003" |
| Primary Material Application | Nickel, Titanium |
| Primary Material Application ISO Code | S01 - S20 |
| Rake | 15 Degrees |
| Relief Angle | 11 Degrees |
| Through Hole Inside Dia. | 0.09 in |
| Workpiece Compatibility | Cast Iron (K), Nonferrous (N), Stainless (M), Steel (P), Super Alloy (S) |
