| ANSI Code | TPMT32.52ESU |
| ANSI Number | TPMT32.52ESU-AC510U |
| Cast Iron (K) Compatibility | Yes |
| Chip-Breaker | Yes |
| Chip-Breaker Code | ESU |
| Chip-Breaker Style | On One Side |
| Clearance Angle | 11 Degrees |
| Coating | CBN |
| Coating Process | PVD |
| Corner Radius | 0.0312 in |
| Country of Origin (subject to change) | Japan |
| Cutting Application | Turning |
| Cutting Direction | Neutral |
| Features | Excellent Fracture Resistance |
| Finish - Machining | TiAlN+AlCrN |
| For Use With | Toolholders, Boring Bars |
| Grade | AC510U |
| Hardened (H) Compatibility | No |
| Included Angle | 60 Degrees |
| Inscribed Circle | 3/8 in |
| Insert Application | Finishing |
| Insert Holding Type | Countersink Hole |
| Insert Material | Carbide |
| Insert Shape | Triangle |
| Insert Size | 32.52 |
| Insert Style | TPMT |
| Insert Thickness | 0.1560" |
| ISO Number | TPMT16T308N-SU |

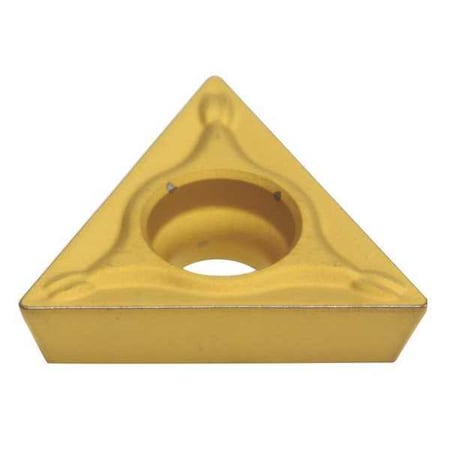

| Item | Triangle Turning Insert |
| Manufacturer Grade | AC510U |
| Material | Carbide |
| Material - Machining | Carbide |
| Measurement System | Fractional Inch |
| Mounting Hole Dia. | 0.169" |
| Mounting Style | Top and hole Clamping |
| No. of Edges | 3 |
| Non Ferrous (N) Compatibility | No |
| Nose Radius | 0.0156" |
| Number of Cutting Edges | 3 |
| Primary Material Application | Cast Iron, Nickel, Titanium |
| Primary Material Application ISO Code | K, S |
| Rake | 13 Degrees |
| Shape | Triangle |
| Stainless (M) Compatibility | Yes |
| Steel (P) Compatibility | No |
| Super Alloy (S) Compatibility | Yes |
| Thickness | 0.1562 in |
| Through Hole Inside Dia. | 0.1693 in |
| Workpiece Compatibility | Cast Iron (K), Stainless (M), Super Alloy (S) |
