| ANSI Code | VBMT332ENK |
| ANSI Number | VBMT332ENK-AC8025P |
| Cast Iron (K) Compatibility | Yes |
| Chip-Breaker | Yes |
| Chip-Breaker Code | ENK |
| Chip-Breaker Style | Single |
| Clearance Angle | 5 Degrees |
| Coating | PVD |
| Coating Process | CVD |
| Corner Radius | 1/32 in |
| Country of Origin (subject to change) | Japan |
| Cutting Application | Turning |
| Cutting Direction | Neutral |
| Features | Adhesion Resistant, Chipping Resistant |
| Finish - Machining | Absotech Platinum |
| For Use With | Toolholders, Boring Bars |
| Grade | AC8025P |
| Hardened (H) Compatibility | No |
| Included Angle | 35 Degrees |
| Inscribed Circle | 3/8 in |
| Insert Application | Finishing |
| Insert Holding Type | Countersink Hole |
| Insert Material | Carbide |
| Insert Shape | Diamond |
| Insert Size | 332 |
| Insert Style | VBMT |
| Insert Thickness | 0.1875" |
| ISO Number | VBMT160408N-SK |

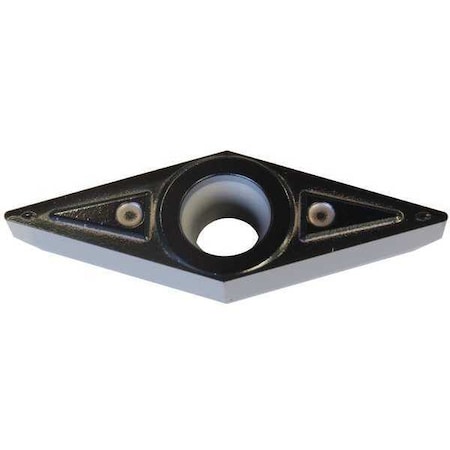

| Item | Diamond Turning Insert |
| Manufacturer Grade | AC8025P |
| Material | Carbide |
| Material - Machining | Carbide |
| Measurement System | Fractional Inch |
| Mounting Hole Dia. | 0.173" |
| Mounting Style | Top and hole Clamping |
| No. of Edges | 2 |
| Non Ferrous (N) Compatibility | No |
| Nose Radius | 0.0313" |
| Number of Cutting Edges | 2 |
| Primary Material Application | Steel |
| Primary Material Application ISO Code | P25 |
| Rake | 8 Degrees |
| Shape | Rhombic |
| Stainless (M) Compatibility | Yes |
| Steel (P) Compatibility | Yes |
| Super Alloy (S) Compatibility | No |
| Thickness | 3/16 in |
| Workpiece Compatibility | Cast Iron (K), Stainless (M), Steel (P) |
