T&S Brass B-0104-A

B007F1F20A

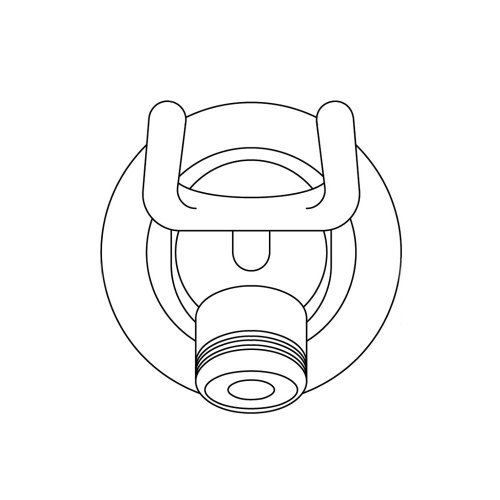

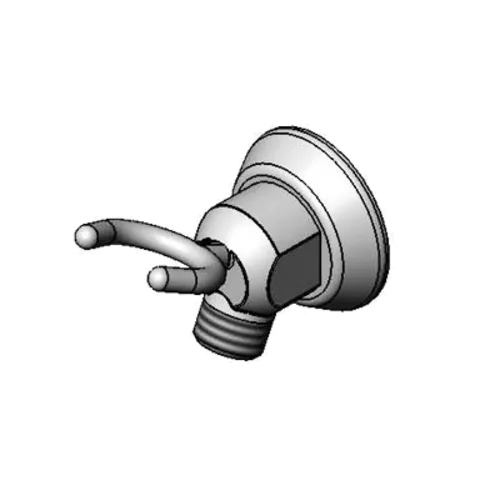

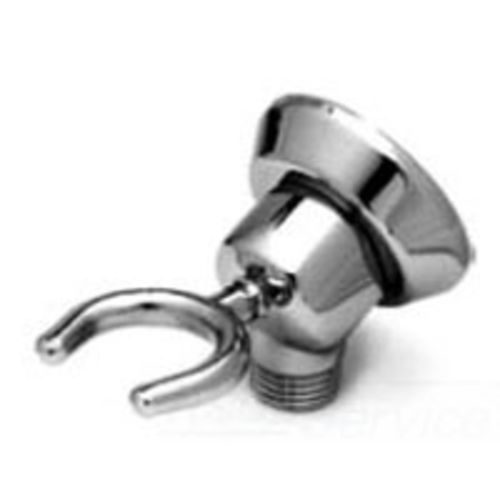

T&S Brass B-0104-A Wall Hook, 3/8" NPT Male Outlet, 3/8" NPT Female Inlet

T&S Brass B-0104-A Wall Hook, 3/8" NPT Male Outlet, 3/8" NPT Female Inletzoom

Attributes

Key Value
ADA CompliantNo
ANSIANSI 61, ANSI 372
ApplicationCommercial
ASMEASME A112.18.1
BAAYes
BAA CompliantYes
Box Dims4x3x4 1/2
BrandT&S Brass
Color Finish CategoryChromes
Color Finish NamePolished Chrome
Country of OriginUS
CSA CertifiedCSA B125.1
Depth2-15/16 in
Depth (in)00
Diameter2 in
End Connection 1FNPT
End Connection 2MNPT
End ConnectionsFNPT x MNPT
Engineering SpecPolished chrome plated .
FEATURE1Polished chrome plated .
FEATURE22 wall flange
FEATURE33/8 NPT female inlet
FEATURE43/8 NPT male outlet
FEATURE5Material: Polished chro.
FinishNo Finish Group
Fitting Size 13/8 in
Fitting Size 23/8 in
Fitting Sizes3/8 in
Flow Rate18.8 gpm
GSA ApprovedNo
Harmonizing No8481.90.7000
Height (in)00
IAPMO Listed -No
Installation TypeWall Mount
ISOISO 9001
Lead Law Compliance Lev.Lead Law Compliant and .
Lead Law CompliantYes
Length4"
Low Lead CompliantYes
Low Lead ContentYes
MA Approved -Yes
ManufacturerT&S Brass
MaterialBrass
Maximum Temperature140
NSFNSF 372, NSF 61
NSF CertifiedYes
OriginDomestic
Part #B-0104-A
Part DescriptionWall Hook: 3/8 NPT Male.
PERFORMANCE 1Pressure: 20 - 125 psi
PERFORMANCE 2Temperature: 40 F - 140.
PERFORMANCE 3Flow Rate: 18.80 GPM @ .
Pressure - Maximum125 psi
Reference ID1563356
ShippingL:4.00"x W:3.00"x H:4.5.
Side SprayNo
Temperature Range40 to 140 Deg F (4.44 t.
Trim OnlyNo
UL ListedNo
Unit of MeasureEA
Unit Of MeasureEach
UPC671262000697
WarrantyOne Year (Limited)
WaterSense LabeledNo
Weight0.83, 00, 0.83 lb, 0.83.
Width (in)00

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WebstaurantStore510B0104A58.241In StockT&S Brass and Bronze Works58.24 @ 1
thumbzoomPlumbersStock39296758.241In StockT&S Brass0.858.24 @ 1
fdsupply.comB-0104-A58.241In StockT&S BRASS58.24 @ 1
thumbzoomckitchen.comB-0104-A60.851In StockT&S Brass60.85 @ 1
ferguson.com86869594.251In StockT&S Brass0.8394.25 @ 1
PartstownTSB-0104-A105.91In StockT&S Brass105.9 @ 1
thumbzoomEdge SupplyB-0104-A105.91In StockT&S Brass0.83105.9 @ 1
