T&S Brass B-0504-03SL

mpnB-0504-03SL
brandname: T&S Brass
manufacturername: T&S Brass

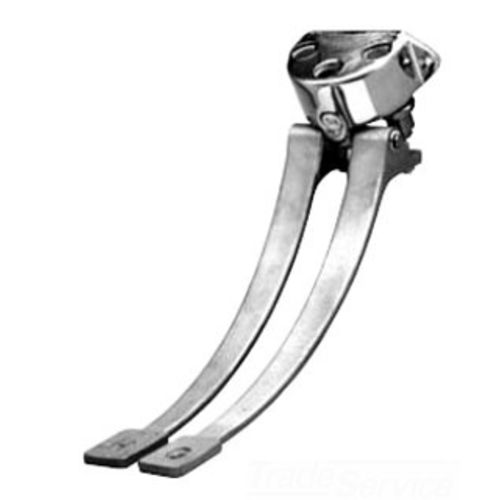

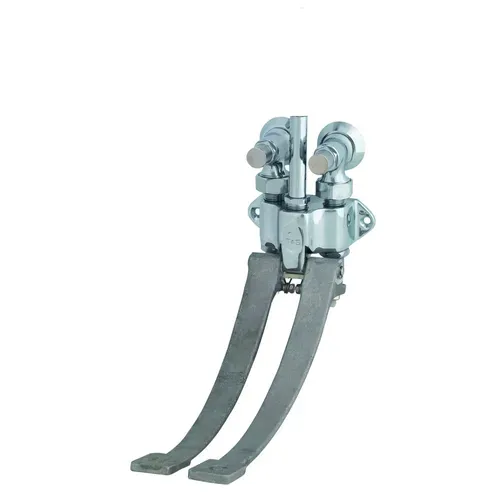

T&S Brass B-0504-03SL Double Pedal Valve, Wall Mount, Loose Key Angle Stops, Slow Close Cartridge

T&S Brass B-0504-03SL Double Pedal Valve, Wall Mount, Loose Key Angle Stops, Slow Close Cartridge

zoom

Brand: T&S Brass
PartNumber: B-0504-03SL
Model: B-0504-03SL
PackageQuantity: 1
Binding: Misc.
Manufacturer: T&S Brass
Label: T&S Brass

Attributes

Key	Value
ADA Compliant	Yes
ANSI	ANSI 61, ANSI 372
Application	Commercial
ASME	ASME A112.18.1
BAA	Yes
BAA Compliant	Yes
Box Dims	23x14x6
Brand	T&S Brass
CARB OTC LEED Compliant	No
Color Finish Category	Stainless Steel
Color Finish Name	Satin
Country of Origin	US
CSA Certified	CSA B125.1
Depth (in)	00
End Connection 1	NPT
End Connections	NPT
Engineering Spec	Wall mount double pedal.
Faucet Connection Size	1/2 in
Faucet Part Type	Pedal
FEATURE1	Wall mounted double ped.
FEATURE2	1/2 NPT female outlet
FEATURE3	Adjustable height hot a.
FEATURE4	Pedals flip up for floo.
FEATURE5	Metering cartridges
FEATURE6	1/2 NPT female loose ke.
FEATURE7	Includes mounting screws
FEATURE8	Material: Polished chro.
Fitting Size 1	1/2 in
Fitting Sizes	1/2 in
Flow Rate	6.02 gpm
GSA Approved	No
Harmonizing No	8481.90.7000
Height (in)	00
IAPMO Listed -	No
Installation Type	Wall Mount
ISO	ISO 9001
Lead Law Compliance Lev.	Lead Free and Lead Leac.
Lead Law Compliant	Yes
Low Lead Content	Yes
MA Approved -	Yes
Manufacturer	T&S Brass
Material	Brass
Maximum Temperature	140
Mount Type	Wall Mount
NSF	NSF 372, NSF 61
NSF Certified	Yes
Origin	Domestic
Part #	B-0504-03SL
Part Description	Double Pedal Valve, Wal.
PERFORMANCE 1	Pressure: 20 - 125 psi
PERFORMANCE 2	Temperature: 40 F - 140.
PERFORMANCE 3	Flow Rate: 6.02 GPM @ 6.
PERFORMANCE 4	Water Consumption: @ 10.
Pressure - High	60
Pressure - Maximum	125 psi
Side Spray	No
Temperature Range	40 to 140 Deg F
UL Listed	No
Unit of Measure	EA
UPC	671262241151
Warranty	One Year (Limited)
WaterSense Labeled	No
Weight	00, 8.66, 8.66 lb
Width (in)	00

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	WebstaurantStore	510B050403SL	649.82	1	In Stock		T&S Brass and Bronze Works		649.82 @ 1
	PlumbersStock	393890	649.82	1	In Stock		T&S Brass	8.7	649.82 @ 1
	fdsupply.com	B-0504-03SL	649.82	1	In Stock		T&S BRASS		649.82 @ 1
	JES	107316	649.83	1	In Stock		T & S Brass MAP		649.83 @ 1
	ckitchen.com	B-0504-03SL	678.84	1	In Stock		T&S Brass		678.84 @ 1
	ferguson.com	868259	994.82	1	In Stock		T&S Brass	8.66	994.82 @ 1
	Partstown	TSB-0504-03SL	1181.5	1	In Stock		T&S Brass		1181.5 @ 1
	Edge Supply	B-0504-03SL	1181.5	1	In Stock		T&S Brass		1181.5 @ 1
