TB Woods 2AK34

mpn2AK34
brandname: T.B. Woods
manufacturername: T.B. Woods

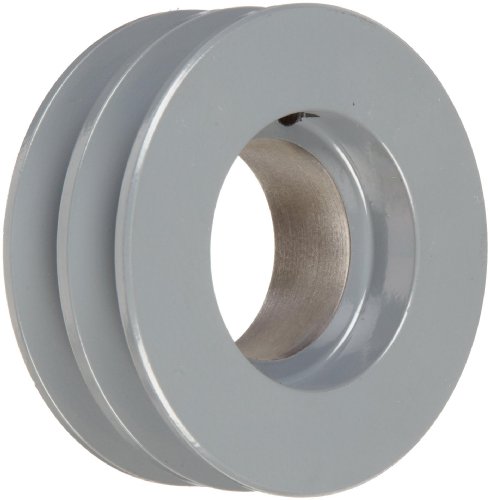

TB Woods 2AK34 FHP QT Bushed V-Belt Sheave, A Belt Section, 2 Grooves, QT Bushing required, Cast Iron, 3.45" OD, 7250 max rpm

TB Woods 2AK34 FHP QT Bushed V-Belt Sheave, A Belt Section, 2 Grooves, QT Bushing required, Cast Iron, 3.45" OD, 7250 max rpm

zoom

Brand: TB Woods
PartNumber: 2AK34
Model: 698672200622
Size: 7250 max rpm
PackageQuantity: 1
Binding: Misc.
Manufacturer: TB Woods
Label: TB Woods

Attributes

Key	Value
Belt section	A-4L-3L
Bore type	Quick disconnect bushing
Bushing	QT
Component WR2 (lbs ft2)	0.02
Datum diameter	3.2
Dimension	0.44
Face width	1.38
Face width (in)	1.38
Groove cross section se.	A
I.D.	2.06
Inertia WR?	3
Inside diameter (in)	2.06
Item	FHP Sheave,2AK34-QT
Material type	CI
Max RPM	7250
Number of grooves	2
O.D.	3.45
Outside diameter (in)	3.45
Package Quantity	1
Pitch diameter	3.45
RPM upper limit	7250

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G1535359	21.79	1	In Stock	11	Tb Woods	1.5	21.79 @ 1
	MRO Supply	347110	81.77	1	In Stock		TB Woods		81.77 @ 1
	us.rs-online.com	73931978	90.72	1	In Stock		TB Wood's (Altra)		90.72 @ 1
