TB Woods 8MPC224S21

mpn8MPC224S21
brandname: T.B. Woods
manufacturername: T.B. Woods

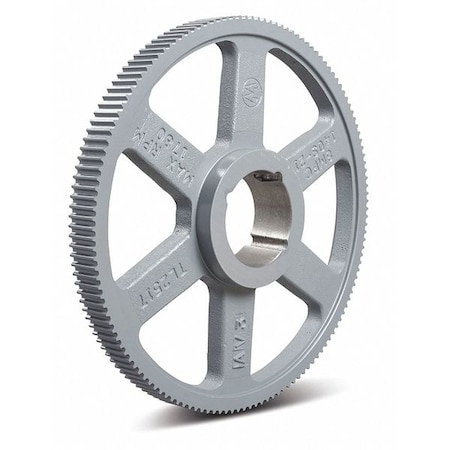

QT PowerChain II,8MPC-224S-21-3020

QT PowerChain II,8MPC-224S-21-3020

zoom

Brand: TB Woods
PartNumber: 8MPC224S21
Size: One Size
PackageQuantity: 1
Manufacturer: TB WOOD'S
Label: TB WOOD'S

Attributes

Key	Value
Belt width	21 mm
Bore type	Taper locking bushing
Bushing	3020
Bushing bore range	7/8 - 3 1/4
Dimension	2
Face width	1.2
Flanges	0
Groove profile	8M
Hub Diameter	6.25
Hub diameter	6.25
Hub length	2
I.D.	20.81
Inertia WR2 (lbs ft2)	21.4
Inertia WR?	638
Inside hub projection	0
Item	QT PowerChain II,8MPC-2.
Material type	Cast iron
Number of grooves	224
Number of hubs	2
Number of teeth	224
O.D.	22.39
O.D. (in)	22.394
Outside hub projection	0.8
Package Quantity	1
Pitch	8
Pitch diameter	22.46
Rim face	1.2
RPM upper limit	1120
Tooth pitch	8
Type	B3

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G1543722	647.99	1	In Stock		Tb Woods	47.0	647.99 @ 1
	MRO Supply	833036	673.31	1	In Stock		TB Woods		673.31 @ 1
