TB Woods BK7015/16

B003N17TUM

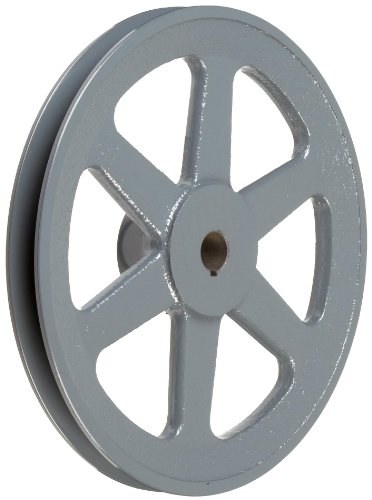

TB Woods BK7015/16 FHP Bored-to-size V-Belt Sheave, B Belt Section, 1 Groove, 0.9375" Bore, Cast Iron, 6.75" OD, 3710 max rpm

TB Woods BK7015/16 FHP Bored-to-size V-Belt Sheave, B Belt Section, 1 Groove, 0.9375" Bore, Cast Iron, 6.75" OD, 3710 max rpmzoom

Attributes

Key Value
3L Pitch DiameterNot Applicable
3V Pitch DiameterNot Applicable
3VX Pitch DiameterNot Applicable
4L Pitch Diameter6.25 in
5L Pitch Diameter6.813 in
5V Pitch DiameterNot Applicable
5VX Pitch DiameterNot Applicable
A Pitch Diameter6.25 in
AX Pitch Diameter6.25 in
B Pitch Diameter6.813 in
Belt sectionB-5L-A-4L
Belt Section Size4L ; 5L ; A ; B
Bore Diameter15/16 in
Bore typeFinished with keyway
Bore-to-size bore diame.0.94
Bore-to-size keyseat1/4 in x 1/8 in
BX Pitch Diameter6.813 in
C Pitch DiameterNot Applicable
Component WR2 (lbs ft2)0.12
CX Pitch DiameterNot Applicable
Datum diameter6.4
Dimension0.66
Face Width0.88 in
Face width0.88
Face width (in)0.88
For Belt Trade Size4L, 5L, A, AX, B, BX
For Bushing SizeNot Applicable
For Bushing TypeNot Applicable
Groove cross section se.B
Hub location-0.66
Hub location (in)-0.66
I.D.6.25
Inertia WR?13
Inside diameter (in)6.25
ItemV-Belt Pulley
Length through Bore1 5/32 in
Material typeCI
Max RPM3710
Maximum Bore Diameter1 9/16 in
Minimum Bore Diameter15/16 in
Number of Grooves1
Number of grooves1
O.D.6.75
Outer Diameter6.75 in
Outside Diameter6.75 in
Outside diameter (in)6.75
Pitch diameter6.81
Pitch Diameter6.25 in (4L, A, AX), 6..
RPM upper limit3710
SeriesFHP BK
UPC Code698672149624

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG153888319.991In StockTb Woods6.019.99 @ 1
MRO Supply34749583.091In StockTB Woods83.09 @ 1
us.rs-online.com7173449694.011In StockTB Wood's (Altra)94.01 @ 1
