TB Woods WES20

B0713MFWSD

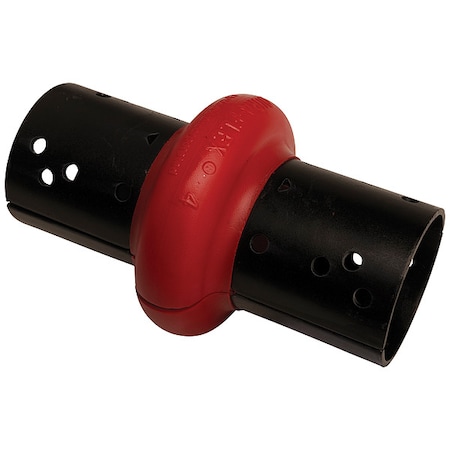

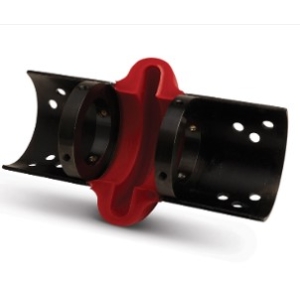

Tire Coupling Spacer Element, Wes20

Tire Coupling Spacer Element, Wes20zoom

Attributes

Key Value
ApplicationNumerous Industrial App.
BrandTb Woods
Capscrew torque require.30 (Must use TB Wood's .
Capscrews3/8 16 UNC x 5/8
ColorRed/Black
Component typeElement
coupling overall length:11.17 in
Coupling Size20
coupling size code:20
Current Stock11
Dimension (in) (D)7.36
Dimension (in) (L)9.35
distance between shafts:Minimum of 1/4 in
element material:Polyurethane
element type:Tire
Height7.36 in
horsepower @ 100 rpm:3.65 hp
HP Rating @ 100 RPM3.65 hp
HP Rating @ 1200 RPM43.79 hp
HP Rating @ 1800 RPM65.69 hp
HP Rating @ 3600 RPM125.9 hp
IncludesHardware Packet Includi.
Insert DesignSpacer
Insert MaterialPolyether Urethane/Steel
International ShippingNo
ItemTire Coupling Spacer El.
Item - Tire Coupling El.Tire Coupling Spacer El.
Length9.35 in
Length (Straight Wirewa.9.35 in
MaterialPolyether urethane
Material typePolyether urethane
Max RPM4800
Max. RPM4,800 RPM
maximum angular misalig.3
Maximum misalignment an.3?
Maximum parallel misali.3/32
maximum parallel misali.3/32 in
Maximum RPM6600
maximum rpm:4800 RPM
MpnWES20
Operating Temp.-40 Degrees to 200 Deg.
Outer Diameter7.36 in
Outside Dia.7.36 in
Product size20
Rated Torque2,300 in-lb
Rated torque (lb/in)2300
SeriesDura-Flex WE
series:Dura-Flex BTS WE
Size - Tire CouplingsWES20
SKUZO-G4271547
Stiffness (in lbs rad)27600
SubCategoryPower Transmission
Temperature rating-40F? to 200F?
torque capacity:2300 in-lbs
Torque rating (in lbs)2300
TypeTire Element
UPC698672118880
UPC Code698672118880

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply339528305.241In StockTB Woods305.24 @ 1
AmazonTPB0713MFWSD309.081In Stock3Tb Wood'S309.08 @ 1
thumbzoomZoroG4271547314.02115Tb Woods6.9314.02 @ 1
thumbzoommotionindustries.com00506535357.731In StockTB Woods (Altra)357.73 @ 1
thumbzoomsimsupply.comZO-G4271547371.67111Tb Woods371.67 @ 1
thumbzoomPurvisWES20452.61In StockTB Woods452.6 @ 1
Grainger15E630467.25180TB WOOD'S467.25 @ 1
thumbzoomsustainablesupply.comC1658387496.291In StockTB Wood's6.9496.29 @ 1
thumbzoomNational Supply Network60437852498.911In StockTB Wood's498.91 @ 1
us.rs-online.com71717249499.211In StockTB Wood's (Altra)499.21 @ 1
thumbzoomRaptor SuppliesAA6YJE708.2434711In StockTB WOODS708.243471 @ 1
thumbzoombscsource.comWES20758.891In StockTB Wood's758.89 @ 1
thumbzoomGuardian60437852908.161In StockTB Wood's908.16 @ 1
