TB Woods 943LB

mpn943LB
brandname: TB Woods
manufacturername: TB Woods

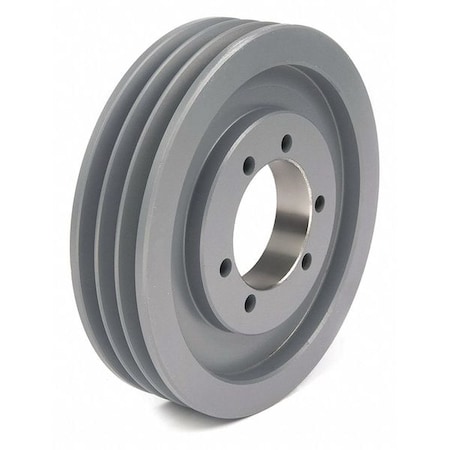

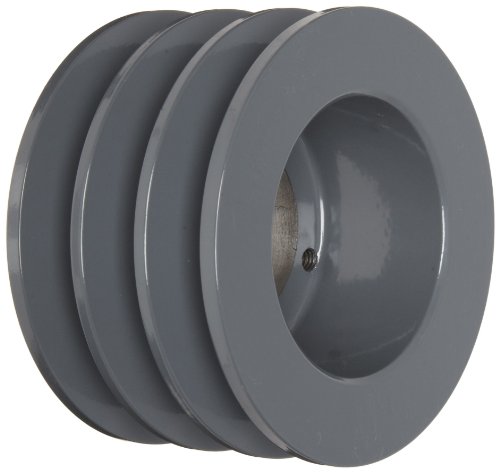

TB Woods 943LB Classical V-Belt Sheave, B Belt Section, 3 Grooves, SF Bushing required, Cast Iron, 9.75" OD

TB Woods 943LB Classical V-Belt Sheave, B Belt Section, 3 Grooves, SF Bushing required, Cast Iron, 9.75" OD

zoom

Brand: TB Woods
PartNumber: 943LB
PackageQuantity: 1
Binding: Misc.
Manufacturer: TB Woods
Label: TB Woods

Attributes

Key	Value
Balance	Standard, 1 plane
Belt section	A-B
Bore type	Quick disconnect bushing
Bushing	SF
Component WR2 (lbs ft2)	1.69
Datum diameter	9.4
Dimension	2
Dimension (E)	0.06
Dimension (L)	2.00
Dimension (M)	0.56
Face width	2.5
Face width (in)	2.50
Groove cross section se.	A-B
Hub location	0.63
Hub location (in)	0.63
I.D.	8.13
Inertia WR?	161
Inside diameter (in)	8.13
Item	V-Belt Sheave,Classical.
Material type	CI
Max RPM	2570
Number of grooves	3
O.D.	9.75
Outside diameter (in)	9.75
Package Quantity	1
Pitch diameter	9.81
RPM upper limit	2570

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G1534981	79.69	1	In Stock		Tb Woods	17.5	79.69 @ 1
	MRO Supply	346697	223.6	1	In Stock		TB Woods		223.6 @ 1
	us.rs-online.com	73931410	248.06	1	In Stock		TB Wood's (Altra)		248.06 @ 1
