TB Woods AK1712

B007ICP91I

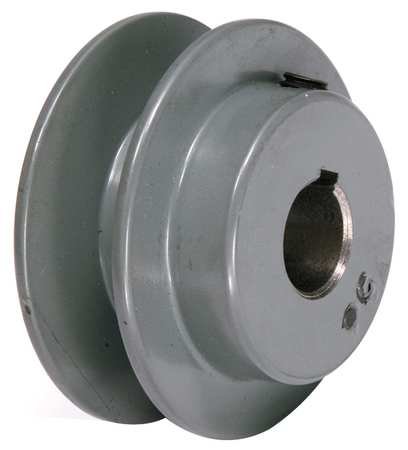

V-Belt Pulley, 1/2"Fixd Bore, 1.75"Od, Iron

V-Belt Pulley, 1/2"Fixd Bore, 1.75"Od, Ironzoom

Attributes

Key Value
3V Pitch DiameterNot Applicable
3VX Pitch DiameterNot Applicable
4L Pitch Diameter1.75 in
4L, A, or AX Belt Pitch.1.5 in
5V Pitch DiameterNot Applicable
5VX Pitch DiameterNot Applicable
A Pitch Diameter1.75 in
AX Pitch Diameter1.75 in
B Pitch DiameterNot Applicable
Belt sectionA-4L
Belt Section Size3L ; 4L ; A
Bore Diameter1/2 in
Bore Size1/2 in
Bore typeFinished with no keyway.
Bore TypeFixed
Bore-to-size bore diame.0.5
BrandTb Woods
Bushing RequiredNone
BX Pitch DiameterNot Applicable
C Pitch DiameterNot Applicable
ColorGrey
Component WR2 (lbs ft2)0.00
ConstructionSolid
Current Stock197
CX Pitch DiameterNot Applicable
Datum diameter1.5
Dimension0.44
Face width0.66
Face Width0.66 in
Face width (in)0.66
Fits Shaft Dia.1/2 in
For Belt Section (broad.4L, A, or AX
For Belt Trade Size4L, AX, A, 4L, A, AX
For V-Belt Section4L, A, AX
For V-Belt TypeClassical, Cogged
Groove cross section se.A
Hub location-0.44
Hub location (in)-0.44
Hub Projection0.44 in
Hub TypeOne Side
I.D.1.38
IncludesSet Screw
Industry NumberAK1712
Inertia WR?1
Inside diameter (in)1.38
International ShippingNo
ItemStandard V-Belt Pulley
KeywayNo
Keyway DepthNot Applicable
Keyway SizeNo Keyway
Keyway Size TypeNo Keyway
Keyway WidthNot Applicable
Lead TimeExpected to ship in 1-2.
Length through Bore15/16 in
MaterialCast Iron
Material FabricationCast
Material typeCI
Max RPM14290
Maximum Bore Diameter7/8 in
MpnAK1712
Number of grooves1
Number of Grooves1
Number of Steps1
O.D.1.75
Outer Diameter1.75 in
Outside Diameter1.75 in
Outside diameter (in)1.75
Overall Width1 1/8 in
Pitch Diameter1.75 in
Pitch diameter1.75
Pitch Diameter for V-Be.4L: 1.75 in / A: 1.75 in
Pulley Bore Dia.1/2 in
Pulley Bore TypeFixed Bore
Pulley ConstructionPlain
Pulley MaterialCast Iron
Pulley Outside Dia.1.75 in
Pulley TypeStandard V-Belt Pulley
RPM upper limit14290
SeriesFHP
Set Screw IncludedYes
SKUZO-G3110256
StandardsISO 9001:2015
SubCategoryPower Transmission
UPC698672090117
UPC Code698672090117
Weight0.4 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG31102568.551394Tb Woods0.498.55 @ 1
grainger.caWWG5RHY311.75805721In StockTB WOOD'S0.4911.7580572 @ 1
thumbzoomsimsupply.comZO-G311025616.381197Tb Woods16.38 @ 1
Grainger5RHY316.851443TB WOOD'S0.416.85 @ 1
thumbzoomsustainablesupply.comC169303318.311In StockTB Wood's0.4918.31 @ 1
thumbzoombscsource.comAK171218.391In StockTB Wood's18.39 @ 1
thumbzoomMRO Supply34574019.594In StockTB Woods19.59 @ 4
thumbzoomNational Supply Network8222206820.261In StockTB Wood's20.26 @ 1
us.rs-online.com7174314922.151In StockTB Wood's (Altra)22.15 @ 1
thumbzoomRaptor SuppliesAE6FJY23.5313911In StockTB WOODS23.531391 @ 1
thumbzoomebay.com_zoro.salesAK1712118.491In StockTB WOOD'S118.49 @ 1
thumbzoomebay.com_allgoodcosalesAK1712118.881In StockTB WOOD'S118.88 @ 1
thumbzoomebay.com_radwell_internationalAK1712126.991In StockTB WOOD'S126.99 @ 1
