TB Woods AK1758

B003N17J7A

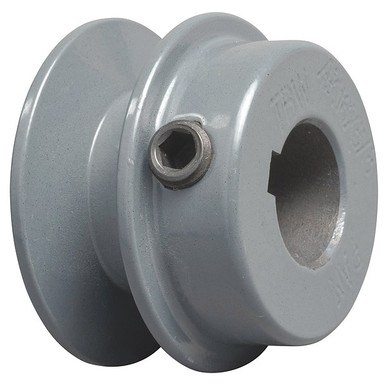

TB Woods AK1758 FHP Bored-to-size V-Belt Sheave, A Belt Section, 1 Groove, 5/8" Bore, Cast Iron, 1.75" OD, 14290 max rpm

TB Woods AK1758 FHP Bored-to-size V-Belt Sheave, A Belt Section, 1 Groove, 5/8" Bore, Cast Iron, 1.75" OD, 14290 max rpmzoom

Attributes

Key Value
3V Pitch DiameterNot Applicable
3VX Pitch DiameterNot Applicable
4L Pitch Diameter1.75 in
4L, A, or AX Belt Pitch.1.5 in
5V Pitch DiameterNot Applicable
5VX Pitch DiameterNot Applicable
A Pitch Diameter1.75 in
AX Pitch Diameter1.75 in
B Pitch DiameterNot Applicable
Belt sectionA-4L
Belt Section and Type (.4L Cogged, A Classical,.
Belt Section Size3L ; 4L ; A
Bore Diameter5/8 in
Bore Size5/8 in
Bore typeFinished with keyway
Bore TypeFixed
Bore-to-size bore diame.0.63
Bore-to-size keyseat3/16 in x 3/32 in
BrandTb Woods
Bushing RequiredNone
BX Pitch DiameterNot Applicable
C Pitch DiameterNot Applicable
ColorGrey
Component WR2 (lbs ft2)0.00
ConstructionSolid
Current Stock797
CX Pitch DiameterNot Applicable
Datum diameter1.5
Dimension0.44
Face width0.66
Face Width0.66 in
Face width (in)0.66
Fits Shaft Dia.5/8 in
For Belt Section (broad.4L, A, or AX
For Belt Trade Size4L, A, AX
For V-Belt Section4L, A, AX
For V-Belt TypeClassical, Cogged
Groove cross section se.A
Hub location-0.44
Hub location (in)-0.44
Hub Projection0.44 in
Hub TypeOne Side
I.D.1.38
IncludesSet Screw
Industry NumberAK1758
Inertia WR?1
Inside diameter (in)1.38
International ShippingNo
ItemStandard V-Belt Pulley
KeywayYes
Keyway Depth3/32 in
Keyway Size0.187" x 0.093"
Keyway Size Type0.187 in x 0.093 in
Keyway Width3/16 in
Length through Bore15/16 in
MaterialCast Iron
Material FabricationCast
Material typeCI
Max RPM14290
Maximum Bore Diameter5/8 in
MpnAK1758
Number of grooves1
Number of Grooves1
Number of Steps1
O.D.1.75
Outer Diameter1.75 in
Outside Diameter1.75 in
Outside diameter (in)1.75
Overall Width1 1/8 in
Pitch Diameter1.75 in
Pitch diameter1.75
Pitch Diameter for V-Be.4L: 1.75 in / A: 1.75 in
Prop 65Warning: This product c.
Pulley Bore Dia.5/8 in
Pulley Bore TypeFixed Bore
Pulley ConstructionPlain
Pulley MaterialCast Iron
Pulley Outside Dia.1.75 in
Pulley TypeStandard V-Belt Pulley
RPM upper limit14290
SeriesFHP
Set Screw IncludedYes
SKUZO-G1211892
StandardsISO 9001:2015
SubCategoryPower Transmission
UPC698672090124
UPC Code698672090124
Weight0.4 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG12118928.2511815Tb Woods0.358.25 @ 1
thumbzoombscsource.comAK17589.291In StockTB Wood's9.29 @ 1
grainger.caWWG5RHY49.87096161In StockTB WOOD'S0.359.8709616 @ 1
AmazonTPB003N17J7A15.611In Stock3Tb Wood'S15.61 @ 1
thumbzoomsimsupply.comZO-G121189215.741797Tb Woods15.74 @ 1
thumbzoomsustainablesupply.comC169303418.191In StockTB Wood's0.3518.19 @ 1
thumbzoomMRO Supply34571618.254In StockTB Woods18.25 @ 4
thumbzoomNational Supply Network8222205020.191In StockTB Wood's20.19 @ 1
us.rs-online.com7174315021.9114TB Wood's (Altra)21.91 @ 1
thumbzoomRaptor SuppliesAE6FJZ23.5313911In StockTB WOOD'S23.531391 @ 1
motionindustries.com0073341924.651In StockTB Woods (Altra)24.65 @ 1
