- mpnAK2212
- brandname: TB Woods
- manufacturername: TB Woods

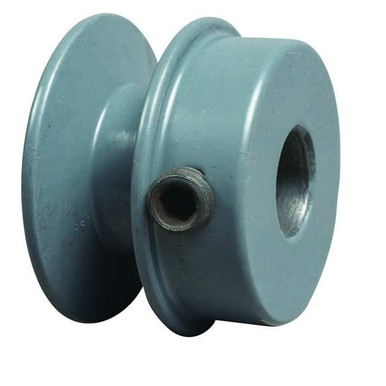

TB Woods AK2212 FHP Bored-to-size V-Belt Sheave, A Belt Section, 1 Groove, 1/2" Bore, Cast Iron, 2.25" OD, 11120 max rpm
- Brand: TB Woods
- PartNumber: AK2212
- Model: AK2212
- Size: 11120 max rpm
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: TB Woods
- Label: TB Woods
Attributes
| Key | Value |
|---|
| 3L Belt Pitch Dia. | 1.66 in |
| 3L Pitch Diameter | 1.91 in |
| 3V Pitch Diameter | Not Applicable |
| 3VX Pitch Diameter | Not Applicable |
| 4L Pitch Diameter | 2.25 in |
| 4L, A, or AX Belt Pitch. | 2 in |
| 5V Pitch Diameter | Not Applicable |
| 5VX Pitch Diameter | Not Applicable |
| A Pitch Diameter | 2.25 in |
| AX Pitch Diameter | 2.25 in |
| B Pitch Diameter | Not Applicable |
| Belt section | A-4L-3L |
| Belt Section and Type (. | 3L Cogged, 4L Classical. |
| Belt Section Size | 3L ; 4L ; A |
| Bore Diameter | 1/2 in |
| Bore type | Finished with no keyway. |
| Bore Type | Fixed |
| Bore-to-size bore diame. | 0.5 |
| Brand | Tb Woods |
| Bushing Required | None |
| BX Pitch Diameter | Not Applicable |
| C Pitch Diameter | Not Applicable |
| Color | Grey |
| Component WR2 (lbs ft2) | 0.00 |
| Construction | Solid |
| Current Stock | 57 |
| CX Pitch Diameter | Not Applicable |
| Datum diameter | 2 |
| Dimension | 0.44 |
| Face width | 0.66 |
| Face Width | 0.66 in |
| Face width (in) | 0.66 |
| Fits Shaft Dia. | 1/2 in |
| For Belt Family | Classical, Classical Co. |
| For Belt Section (broad. | 3L, 4L, A, or AX |
| For Belt Trade Size | 3L, 4L, A, AX |
| For V-Belt Section | 3L, 4L, A, AX |
| For V-Belt Type | Classical, Cogged |
| Groove cross section se. | A |
| Hub location | -0.44 |
| Hub location (in) | -0.44 |
| Hub Projection | 0.44 in |
| Hub Type | One Side |
| I.D. | 1.88 |
| Includes | Set Screw |
| Industry Number | AK2212 |
| Inertia WR? | 1 |
| Inside diameter (in) | 1.88 |
| International Shipping | No |
| Item | Standard V-Belt Pulley |
| Keyway | No |
| Keyway Depth | Not Applicable |
| Keyway Size | No Keyway |
| Keyway Size Type | No Keyway |
| Keyway Width | Not Applicable |
| Length through Bore | 15/16 in |
| Material | Cast Iron |
| Material Fabrication | Cast |
| Material type | CI |
| Max RPM | 11120 |
| Maximum Bore Diameter | 1 in |
| Mpn | AK2212 |
| Number of grooves | 1 |
| Number of Grooves | 1 |
| O.D. | 2.25 |
| Outer Diameter | 2.15 in |
| Outside Diameter | 2.25 in |
| Outside diameter (in) | 2.25 |
| Overall Width | 1 1/8 in |
| Pitch Diameter | 2.25 in |
| Pitch diameter | 2.25 |
| Pitch Diameter for V-Be. | 3L: 1.91 in / 4L: 2.25 . |
| Pulley Bore Dia. | 1/2 in |
| Pulley Bore Type | Fixed Bore |
| Pulley Construction | Plain |
| Pulley Material | Cast Iron |
| Pulley Outside Dia. | 2.25 in |
| Pulley Type | Standard V-Belt Pulley |
| RPM upper limit | 11120 |
| Series | FHP AK Series |
| Set Screw Included | Yes |
| SKU | ZO-G2317506 |
| Standards | ISO 9001:2015 |
| SubCategory | Power Transmission |
| UPC | 698672090513 |
| UPC Code | 698672090513 |
| Weight | 0.6 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G2317506 | 8.45 | 1 | 144 | | Tb Woods | 0.53 | 8.45 @ 1 |
 | bscsource.com | AK2212 | 10.09 | 1 | In Stock | | TB Wood's | | 10.09 @ 1 |
| grainger.ca | WWG5RHY8 | 11.19918658 | 1 | In Stock | | TB WOOD'S | 0.53 | 11.19918658 @ 1 |
 | Guardian | 82223132 | 11.49 | 1 | In Stock | | TB Wood's | | 11.49 @ 1 |
 | simsupply.com | ZO-G2317506 | 15.97 | 1 | 57 | | Tb Woods | | 15.97 @ 1 |
| AmazonTP | B003N17JKC | 16.92 | 1 | In Stock | 2 | TB Woods | | 16.92 @ 1 |
 | sustainablesupply.com | C1693038 | 18.31 | 1 | In Stock | | TB Wood's | 0.53 | 18.31 @ 1 |
 | MRO Supply | 345650 | 19.55 | 4 | In Stock | | TB Woods | | 19.55 @ 4 |
 | National Supply Network | 82223132 | 20.64 | 1 | In Stock | | TB Wood's | | 20.64 @ 1 |
| us.rs-online.com | 71670356 | 22.11 | 1 | In Stock | | TB Wood's (Altra) | | 22.11 @ 1 |
 | Raptor Supplies | AE6FKD | 24.3917505 | 1 | In Stock | | TB WOOD'S | | 24.3917505 @ 1 |
