TB Woods AK2258

B01BGWWHZG

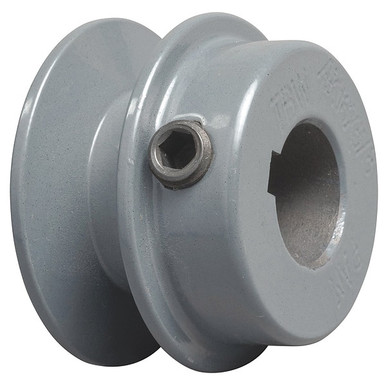

Tb Woods V-Belt Pulley,Finished,0.63in,0.66in AK2258 - 1 Each

Tb Woods V-Belt Pulley,Finished,0.63in,0.66in AK2258 - 1 Eachzoom

Attributes

Key Value
3L Belt Pitch Dia.1.66 in
3L Pitch Diameter1.91 in
3V Pitch DiameterNot Applicable
3VX Pitch DiameterNot Applicable
4L Pitch Diameter2.25 in
4L, A, or AX Belt Pitch.2 in
5V Pitch DiameterNot Applicable
5VX Pitch DiameterNot Applicable
A Pitch Diameter2.25 in
ASINB003N17JM0
AX Pitch Diameter2.25 in
B Pitch DiameterNot Applicable
Belt sectionA-4L-3L
Belt Section Size3L ; 4L ; A
Bore Diameter5/8 in
Bore typeFinished with keyway
Bore TypeFixed
Bore-to-size bore diame.0.63
Bore-to-size keyseat3/16 in x 3/32 in
BrandTb Woods
Bushing RequiredNone
BX Pitch DiameterNot Applicable
C Pitch DiameterNot Applicable
ColorGrey
Component WR2 (lbs ft2)0.00
ConstructionSolid
Current Stock397
CX Pitch DiameterNot Applicable
Datum diameter2
Dimension0.44
Face width0.66
Face Width0.66 in
Face width (in)0.66
Fits Shaft Dia.5/8 in
For Belt Trade Size3L, 4L, A, AX
For V-Belt Section3L, 4L, A, AX
For V-Belt TypeClassical, Cogged
Groove cross section se.A
Hub location-0.44
Hub location (in)-0.44
Hub Projection0.44 in
Hub TypeOne Side
I.D.1.88
IncludesSet Screw
Industry NumberAK2258
Inertia WR?1
Inside diameter (in)1.88
International ShippingNo
ItemStandard V-Belt Pulley
Item model numberAK2258
KeywayYes
Keyway Depth3/32 in
Keyway Size0.187" x 0.093"
Keyway Size Type0.187 in x 0.093 in
Keyway Width3/16 in
Length through Bore15/16 in
MaterialCast Iron
Material FabricationCast
Material typeCI
Max RPM11120
Maximum Bore Diameter1 in
MpnAK2258
Number of grooves1
Number of Grooves1
Number of Steps1
O.D.2.25
Outer Diameter2.25 in
Outside Diameter2.25 in
Outside diameter (in)2.25
Overall Width1 1/8 in
Pitch Diameter2.25 in
Pitch diameter2.25
Pitch Diameter for V-Be.3L: 1.91 in / 4L: 2.25 .
Prop 65Warning: This product c.
Pulley Bore Dia.5/8 in
Pulley Bore TypeFixed Bore
Pulley ConstructionPlain
Pulley MaterialCast Iron
Pulley Outside Dia.2.25 in
Pulley TypeStandard V-Belt Pulley
RPM upper limit11120
SeriesFHP AK Series
Set Screw IncludedYes
SKUZO-G1793696
StandardsISO 9001:2015
SubCategoryPower Transmission
UPC698672090520
UPC Code698672090520
Weight0.6 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG17936968.491489Tb Woods0.58.49 @ 1
grainger.caWWG5RHZ010.212090421In StockTB WOOD'S0.510.21209042 @ 1
thumbzoomsimsupply.comZO-G179369616.021397Tb Woods16.02 @ 1
thumbzoomAmazonB003N17JM017.641In StockTB Woods0.1517.64 @ 1
thumbzoomsustainablesupply.comC169304018.881In StockTB Wood's0.518.88 @ 1
thumbzoomMRO Supply34565119.054In StockTB Woods19.05 @ 4
thumbzoombscsource.comAK225819.091In StockTB Wood's19.09 @ 1
thumbzoomNational Supply Network8222316520.641In StockTB Wood's20.64 @ 1
us.rs-online.com7167035821.551In StockTB Wood's (Altra)21.55 @ 1
thumbzoomRaptor SuppliesAE6FKF24.39175051In StockTB WOODS24.3917505 @ 1
