TB Woods AK2358

mpnAK2358
brandname: TB Woods
manufacturername: TB Woods

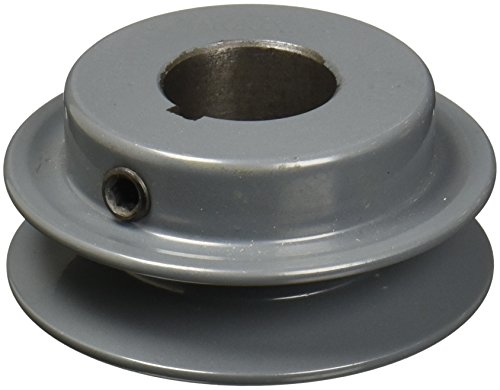

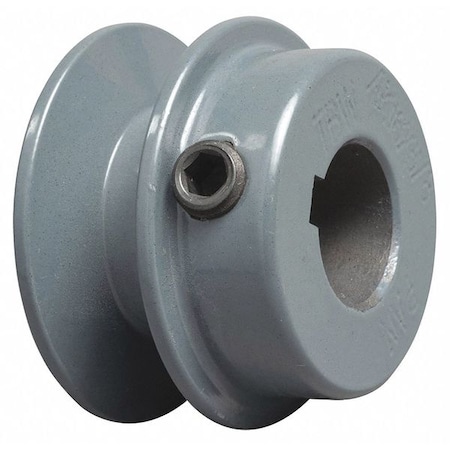

TB Woods AK2358 FHP Bored-to-size V-Belt Sheave, A Belt Section, 1 Groove, 5/8" Bore, Cast Iron, 2.35" OD, 10640 max rpm

TB Woods AK2358 FHP Bored-to-size V-Belt Sheave, A Belt Section, 1 Groove, 5/8" Bore, Cast Iron, 2.35" OD, 10640 max rpm

zoom

Brand: TB Woods
PartNumber: AK2358
Model: 698672090629
Size: 10640 max rpm
PackageQuantity: 1
Binding: Misc.
Manufacturer: TB Woods
Label: TB Woods

Attributes

Key	Value
Belt section	A-4L-3L
Belt Section Size	3L ; 4L ; A
Bore Diameter	5/8 in
Bore type	Finished with keyway
Bore-to-size bore diame.	0.63
Bore-to-size keyseat	3/16 in x 3/32 in
Component WR2 (lbs ft2)	0.00
Country of Origin (subj.	Multiple
Datum diameter	2.1
Dimension	0.44
Face width	0.66
Face width (in)	0.66
Groove cross section se.	A
Hub location	-0.44
Hub location (in)	-0.44
I.D.	1.98
Inertia WR?	1
Inside diameter (in)	1.98
Item	FHP Sheave,AK23 x 5/8
Material type	CI
Max RPM	10640
Number of Grooves	1
Number of grooves	1
O.D.	2.35
Outer Diameter	2.35 in
Outside diameter (in)	2.35
Pitch diameter	2.35
RPM upper limit	10640
Series	FHP AK Series
UPC Code	698672090629

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G1536731	4.98	2	In Stock	11	Tb Woods	0.8	4.98 @ 2
	MRO Supply	347232	21.21	4	In Stock		TB Woods		21.21 @ 4
	us.rs-online.com	71670362	24.0	1	In Stock		TB Wood's (Altra)		24.0 @ 1
