TB Woods AK2512

B003N17JT8

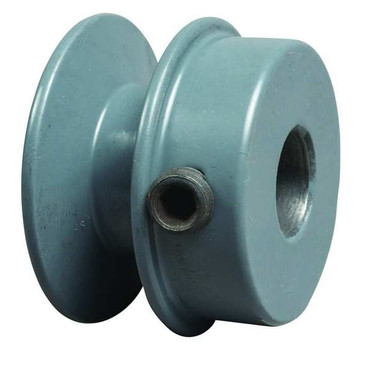

TB Woods AK2512 FHP Bored-to-size V-Belt Sheave, A Belt Section, 1 Groove, 1/2" Bore, Cast Iron, 2.55" OD, 9810 max rpm

TB Woods AK2512 FHP Bored-to-size V-Belt Sheave, A Belt Section, 1 Groove, 1/2" Bore, Cast Iron, 2.55" OD, 9810 max rpmzoom

Attributes

Key Value
3L Belt Pitch Dia.1.96 in
3L Pitch Diameter2.21 in
3V Pitch DiameterNot Applicable
3VX Pitch DiameterNot Applicable
4L Pitch Diameter2.55 in
4L, A, or AX Belt Pitch.2.3 in
5V Pitch DiameterNot Applicable
5VX Pitch DiameterNot Applicable
A Pitch Diameter2.55 in
AX Pitch Diameter2.55 in
B Pitch DiameterNot Applicable
Belt sectionA-4L-3L
belt section size:3L, 4L, A
Bore Diameter1/2 in
bore diameter:0.5000 in
Bore typeFinished with no keyway.
Bore TypeFixed
bore type:Finished w/ No Keyway
Bore-to-size bore diame.0.5
BrandTb Woods
Bushing RequiredNone
BX Pitch DiameterNot Applicable
C Pitch DiameterNot Applicable
ColorGrey
Component WR2 (lbs ft2)0.00
Constructionweb
Current Stock197
CX Pitch DiameterNot Applicable
Datum diameter2.3
Dimension0.44
Face width0.66
Face Width0.66 in
Face width (in)0.66
Fits Shaft Dia.1/2 in
For Belt FamilyClassical, Classical Co.
For Belt Trade Size3L, 4L, A, AX
For V-Belt Section3L, 4L, A, AX
For V-Belt TypeClassical, Cogged
Groove cross section se.A
Hub location-0.44
Hub location (in)-0.44
Hub Projection0.44 in
Hub TypeOne Side
I.D.2.18
IncludesSet Screw
Industry NumberAK2512
Inertia WR?1
Inside diameter (in)2.18
International ShippingNo
ItemStandard V-Belt Pulley
KeywayNo
Keyway DepthNot Applicable
Keyway SizeNo Keyway
Keyway Size TypeNo Keyway
keyway size:None
Keyway WidthNot Applicable
Length through Bore15/16 in
MaterialCast Iron
Material FabricationCast
Material typeCI
material:Cast Iron
Max RPM9810
Maximum Bore Diameter1 in
MpnAK2512
Number of grooves1
Number of Grooves1
O.D.2.55
Outside Diameter2.55 in
Outside diameter (in)2.55
Overall Width1 1/8 in
overall width:1-3/32 in
Pitch Diameter2.55 in
Pitch diameter2.55
Pitch Diameter for V-Be.3L: 2.21 in / 4L: 2.55 .
pitch diameter:2.21 (3L) in, 2.55 (A/4.
Prop 65Warning: This product c.
Pulley Bore Dia.1/2 in
Pulley Bore TypeFixed Bore
Pulley ConstructionWebbed
pulley construction:Plain
Pulley MaterialCast Iron
Pulley Outside Dia.2.55 in
Pulley TypeStandard V-Belt Pulley
RPM upper limit9810
Set Screw IncludedYes
SKUZO-G2283802
StandardsISO 9001:2015
SubCategoryPower Transmission
UPC698672090810
Weight0.7 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG22838029.491276Tb Woods0.629.49 @ 1
thumbzoombscsource.comAK251211.191In StockTB Wood's11.19 @ 1
grainger.caWWG5RHZ113.4274111In StockTB WOOD'S0.6213.427411 @ 1
thumbzoomsimsupply.comZO-G228380217.21197Tb Woods17.2 @ 1
thumbzoomsustainablesupply.comC169304120.151In StockTB Wood's0.6220.15 @ 1
thumbzoomNational Supply Network8222317321.771In StockTB Wood's21.77 @ 1
thumbzoomMRO Supply34565622.593In StockTB Woods22.59 @ 3
thumbzoommotionindustries.com0073348324.891In StockTB Woods (Altra)24.89 @ 1
thumbzoomRaptor SuppliesAE6FKG25.19624251In StockTB WOODS25.1962425 @ 1
