- mpnAK2534
- brandname: TB Woods
- manufacturername: TB Woods

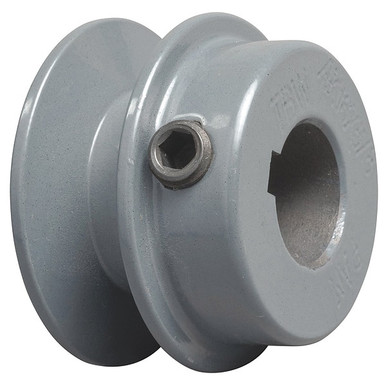

TB Woods AK2534 FHP Bored-to-size V-Belt Sheave, A Belt Section, 1 Groove, 3/4" Bore, Cast Iron, 2.55" OD, 9810 max rpm
- Brand: TB Woods
- PartNumber: AK2534
- Model: 698672090834
- Color: Grey
- Size: 9810 max rpm
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: TB Woods
- Label: TB Woods
Attributes
| Key | Value |
|---|
| 3L Belt Pitch Dia. | 1.96 in |
| 3L Pitch Diameter | 2.21 in |
| 3V Pitch Diameter | Not Applicable |
| 3VX Pitch Diameter | Not Applicable |
| 4L Pitch Diameter | 2.55 in |
| 4L, A, or AX Belt Pitch. | 2.3 in |
| 5V Pitch Diameter | Not Applicable |
| 5VX Pitch Diameter | Not Applicable |
| A Pitch Diameter | 2.55 in |
| AX Pitch Diameter | 2.55 in |
| B Pitch Diameter | Not Applicable |
| Belt section | A-4L-3L |
| Belt Section Size | 3L ; 4L ; A |
| Bore Diameter | 3/4 in |
| Bore type | Finished with keyway |
| Bore-to-size bore diame. | 0.75 |
| Bore-to-size keyseat | 3/16 in x 3/32 in |
| Brand | Tb Woods |
| Bushing Required | None |
| BX Pitch Diameter | Not Applicable |
| C Pitch Diameter | Not Applicable |
| Color | Grey |
| Component WR2 (lbs ft2) | 0.00 |
| Construction | web |
| Current Stock | 97 |
| CX Pitch Diameter | Not Applicable |
| Datum diameter | 2.3 |
| Dimension | 0.44 |
| Face Width | 0.66 in |
| Face width | 0.66 |
| Face width (in) | 0.66 |
| Fits Shaft Dia. | 3/4 in |
| For Belt Section (broad. | 3L, 4L, A, or AX |
| For Belt Trade Size | 3L, 4L, A, AX |
| For V-Belt Section | 3L, 4L, A, AX |
| Groove cross section se. | A |
| Hub location | -0.44 |
| Hub location (in) | -0.44 |
| Hub Projection | 0.44 in |
| Hub Type | One Side |
| I.D. | 2.18 |
| Industry Number | AK2534 |
| Inertia WR? | 1 |
| Inside diameter (in) | 2.18 |
| International Shipping | No |
| Item | Standard V-Belt Pulley |
| Keyway Depth | 3/32 in |
| Keyway Size | 0.187" x 0.093" |
| Keyway Size Type | 0.187 in x 0.093 in |
| Keyway Width | 3/16 in |
| Length through Bore | 15/16 in |
| Material | Cast Iron |
| Material Fabrication | Cast |
| Material type | CI |
| Max RPM | 9810 |
| Maximum Bore Diameter | 1 in |
| Mpn | AK2534 |
| Number of Grooves | 1 |
| Number of grooves | 1 |
| Number of Steps | 1 |
| O.D. | 2.55 |
| Outer Diameter | 2.55 in |
| Outside Diameter | 2.55 in |
| Outside diameter (in) | 2.55 |
| Overall Width | 1 1/8 in |
| Pitch diameter | 2.55 |
| Pitch Diameter | 2.55 in |
| Pitch Diameter for V-Be. | 3L: 2.21 in / 4L: 2.55 . |
| Pulley Bore Dia. | 3/4 in |
| Pulley Bore Type | Fixed Bore |
| Pulley Construction | Webbed |
| Pulley Material | Cast Iron |
| Pulley Outside Dia. | 2.55 in |
| Pulley Type | Standard V-Belt Pulley |
| RPM upper limit | 9810 |
| Series | FHP AK Series |
| Set Screw Included | Yes |
| SKU | ZO-G2648536 |
| SubCategory | Power Transmission |
| UPC | 698672090834 |
| UPC Code | 698672090834 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | bscsource.com | AK2534 | 11.19 | 1 | In Stock | | TB Wood's | | 11.19 @ 1 |
 | Zoro | G2648536 | 12.59 | 1 | 188 | | Tb Woods | 0.55 | 12.59 @ 1 |
 | simsupply.com | ZO-G2648536 | 20.87 | 1 | 97 | | Tb Woods | | 20.87 @ 1 |
 | sustainablesupply.com | C1693042 | 20.96 | 1 | In Stock | | TB Wood's | 0.55 | 20.96 @ 1 |
 | MRO Supply | 345636 | 21.6 | 4 | In Stock | | TB Woods | | 21.6 @ 4 |
 | National Supply Network | 82223181 | 21.77 | 1 | In Stock | | TB Wood's | | 21.77 @ 1 |
| us.rs-online.com | 71670369 | 24.44 | 1 | In Stock | | TB Wood's (Altra) | | 24.44 @ 1 |
 | Raptor Supplies | AE6FKH | 25.1962425 | 1 | In Stock | | TB WOODS | | 25.1962425 @ 1 |
