TB Woods AK2578

B003N17JUW

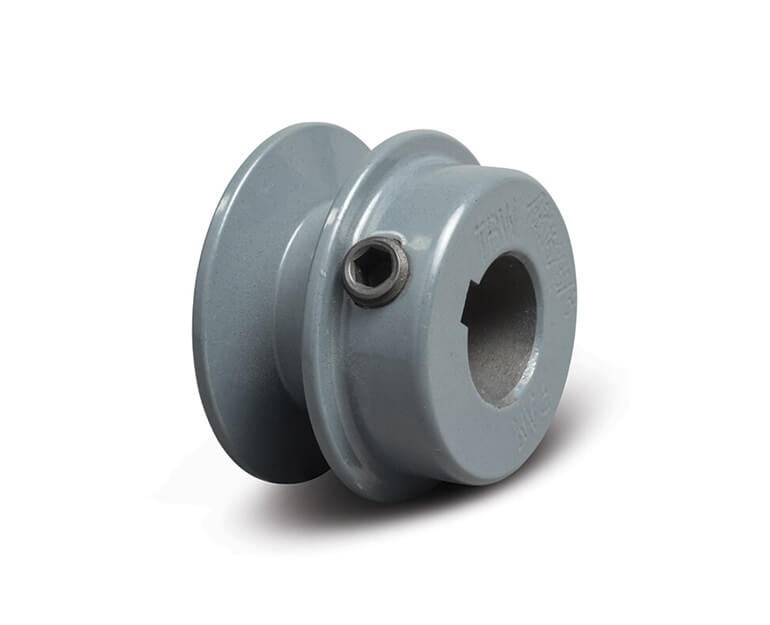

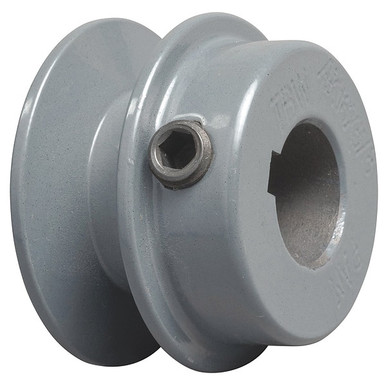

TB Woods AK2578 FHP Bored-to-size V-Belt Sheave, A Belt Section, 1 Groove, 7/8" Bore, Cast Iron, 2.55" OD, 9810 max rpm

TB Woods AK2578 FHP Bored-to-size V-Belt Sheave, A Belt Section, 1 Groove, 7/8" Bore, Cast Iron, 2.55" OD, 9810 max rpmzoom

Attributes

Key Value
3L Belt Pitch Dia.1.96 in
3L Pitch Diameter2.21 in
3V Pitch DiameterNot Applicable
3VX Pitch DiameterNot Applicable
4L Pitch Diameter2.55 in
4L, A, or AX Belt Pitch.2.3 in
5V Pitch DiameterNot Applicable
5VX Pitch DiameterNot Applicable
A Pitch Diameter2.55 in
AX Pitch Diameter2.55 in
B Pitch DiameterNot Applicable
Belt sectionA-4L-3L
Belt Section Size3L ; 4L ; A
Bore Diameter7/8 in
Bore typeFinished with keyway
Bore TypeFixed
Bore-to-size bore diame.0.88
Bore-to-size keyseat3/16 in x 3/32 in
BrandTb Woods
Bushing RequiredNone
BX Pitch DiameterNot Applicable
C Pitch DiameterNot Applicable
ColorGrey
Component WR2 (lbs ft2)0.00
Constructionweb
Current Stock197
CX Pitch DiameterNot Applicable
Datum diameter2.3
Dimension0.44
Face width0.66
Face Width0.66 in
Face width (in)0.66
Fits Shaft Dia.7/8 in
For Belt FamilyClassical, Classical Co.
For Belt Trade Size3L, 4L, A, AX, 3L, 4L, .
For V-Belt Section3L, 4L, A, AX
For V-Belt TypeClassical, Cogged
Groove cross section se.A
Hub location-0.44
Hub location (in)-0.44
Hub Projection0.44 in
Hub TypeOne Side
I.D.2.18
IncludesSet Screw
Industry NumberAK2578
Inertia WR?1
Inside diameter (in)2.18
International ShippingNo
ItemStandard V-Belt Pulley
KeywayYes
Keyway Depth3/32 in
Keyway Size0.187" x 0.093"
Keyway Size Type0.187 in x 0.093 in
Keyway Width3/16 in
Lead TimeExpected to ship in 1-2.
Length through Bore15/16 in
MaterialCast Iron
Material FabricationCast
Material typeCI
Max RPM9810
Maximum Bore Diameter1 in
MpnAK2578
Number of grooves1
Number of Grooves1
O.D.2.55
Outer Diameter2.55 in
Outside Diameter2.55 in
Outside diameter (in)2.55
Overall Width1 1/8 in
Pitch Diameter2.55 in
Pitch diameter2.55
Pitch Diameter for V-Be.3L: 2.21 in / 4L: 2.55 .
Prop 65Warning: This product c.
Pulley Bore Dia.7/8 in
Pulley Bore TypeFixed Bore
Pulley ConstructionWebbed
Pulley MaterialCast Iron
Pulley Outside Dia.2.55 in
Pulley TypeStandard V-Belt Pulley
RPM upper limit9810
SeriesFHP AK Series
Set Screw IncludedYes
SKUZO-G1410534
StandardsISO 9001:2015
SubCategoryPower Transmission
UPC698672090841
UPC Code698672090841
Weight0.7 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG14105349.351292Tb Woods0.629.35 @ 1
grainger.caWWG5RHZ413.4274111In StockTB WOOD'S0.6213.427411 @ 1
thumbzoomsimsupply.comZO-G141053417.391197Tb Woods17.39 @ 1
Grainger5RHZ418.041371TB WOOD'S0.718.04 @ 1
thumbzoomsustainablesupply.comC268267120.861In StockTB Wood's0.6220.86 @ 1
thumbzoombscsource.comAK257820.991In StockTB Wood's20.99 @ 1
motionindustries.com0070799721.191In StockTB Woods (Altra)21.19 @ 1
thumbzoomNational Supply Network8222287821.771In StockTB Wood's21.77 @ 1
thumbzoomMRO Supply34563822.593In StockTB Woods22.59 @ 3
thumbzoomRaptor SuppliesAE6FKK25.19624251In StockTB WOOD'S25.1962425 @ 1
us.rs-online.com7167037125.5414TB Wood's (Altra)25.54 @ 1
