TB Woods AK2712

mpnAK2712
brandname: TB Woods
manufacturername: TB Woods

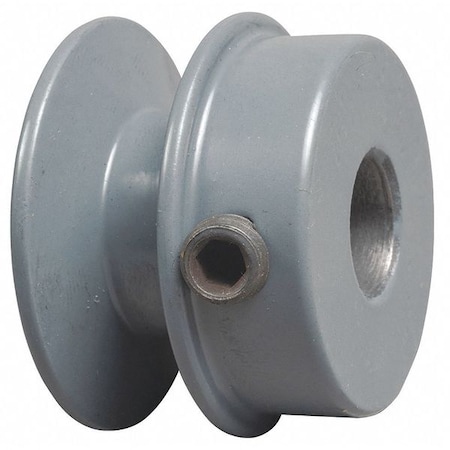

TB Woods AK2712 FHP Bored-to-size V-Belt Sheave, A Belt Section, 1 Groove, 1/2" Bore, Cast Iron, 2.75" OD, 9100 max rpm

TB Woods AK2712 FHP Bored-to-size V-Belt Sheave, A Belt Section, 1 Groove, 1/2" Bore, Cast Iron, 2.75" OD, 9100 max rpm

zoom

Brand: TB Woods
PartNumber: AK2712
Model: AK2712
Size: 9100 max rpm
PackageQuantity: 1
Binding: Misc.
Manufacturer: TB Woods
Label: TB Woods

Attributes

Key	Value
Belt section	A-4L-3L
Belt Section Size	3L ; 4L ; A
Bore Diameter	1/2 in
Bore type	Finished with no keyway.
Bore-to-size bore diame.	0.5
Component WR2 (lbs ft2)	0.00
Country of Origin (subj.	Multiple
Datum diameter	2.5
Dimension	0.44
Face width	0.66
Face width (in)	0.66
Groove cross section se.	A
Hub location	-0.44
Hub location (in)	-0.44
I.D.	2.38
Inertia WR?	1
Inside diameter (in)	2.38
Item	FHP Sheave,AK27 x 1/2
Material type	CI
Max RPM	9100
Number of Grooves	1
Number of grooves	1
O.D.	2.75
Outer Diameter	2.75 in
Outside diameter (in)	2.75
Pitch diameter	2.75
RPM upper limit	9100
Series	FHP AK Series
UPC Code	698672091015

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G1568231	11.19	2	In Stock	11	Tb Woods	1.0	11.19 @ 2
	MRO Supply	345643	24.37	3	In Stock		TB Woods		24.37 @ 3
	us.rs-online.com	71670376	27.56	1	In Stock		TB Wood's (Altra)		27.56 @ 1
