TB Woods AK2812

B003N17K06

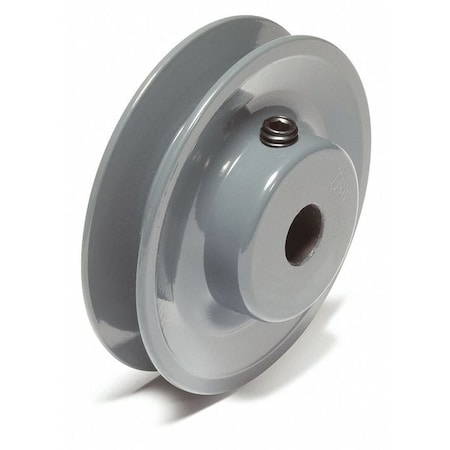

TB Woods AK2812 FHP Bored-to-size V-Belt Sheave, A Belt Section, 1 Groove, 1/2" Bore, Cast Iron, 2.85" OD, 8780 max rpm

TB Woods AK2812 FHP Bored-to-size V-Belt Sheave, A Belt Section, 1 Groove, 1/2" Bore, Cast Iron, 2.85" OD, 8780 max rpmzoom

Attributes

Key Value
3L Belt Pitch Dia.2.26 in
3L Pitch Diameter2.51 in
3V Pitch DiameterNot Applicable
3VX Pitch DiameterNot Applicable
4L Pitch Diameter2.85 in
4L, A, or AX Belt Pitch.2.6 in
5V Pitch DiameterNot Applicable
5VX Pitch DiameterNot Applicable
A Pitch Diameter2.85 in
AX Pitch Diameter2.85 in
B Pitch DiameterNot Applicable
Belt sectionA-4L-3L
Belt Section Size3L ; 4L ; A
Bore Diameter1/2 in
Bore TypeFixed
Bore typeFinished with no keyway.
Bore-to-size bore diame.0.5
BrandTb Woods
Bushing RequiredNone
BX Pitch DiameterNot Applicable
C Pitch DiameterNot Applicable
ColorGrey
Component WR2 (lbs ft2)0.00
Constructionweb
Current Stock197
CX Pitch DiameterNot Applicable
Datum diameter2.6
Dimension0.44
Face Width0.66 in
Face width0.66
Face width (in)0.66
Fits Shaft Dia.1/2 in
For Belt Trade Size3L, 4L, A, AX
For V-Belt Section3L, 4L, A, AX
Groove cross section se.A
Hub location-0.44
Hub location (in)-0.44
Hub Projection0.44 in
Hub TypeOne Side
I.D.2.48
Industry NumberAK2812
Inertia WR?1
Inside diameter (in)2.48
International ShippingNo
ItemStandard V-Belt Pulley
Keyway DepthNot Applicable
Keyway SizeNo Keyway
Keyway Size TypeNo Keyway
Keyway WidthNot Applicable
Length through Bore15/16 in
Material FabricationCast
Material typeCI
Max RPM8780
Maximum Bore Diameter1 in
MpnAK2812
Number of Grooves1
Number of grooves1
Number of Steps1
O.D.2.85
Outer Diameter2.85 in
Outside Diameter2.85 in
Outside diameter (in)2.85
Overall Width1 1/8 in
Pitch diameter2.85
Pitch Diameter2.85 in
Pitch Diameter for V-Be.3L: 2.51 in / 4L: 2.85 .
Pulley Bore Dia.1/2 in
Pulley Bore TypeFixed Bore
Pulley MaterialCast Iron
Pulley Outside Dia.2.85 in
Pulley TypeStandard V-Belt Pulley
RPM upper limit8780
SeriesFHP AK Series
Set Screw IncludedYes
SKUZO-G1353466
StandardsISO 9001:2015
SubCategoryPower Transmission
UPC698672091114
UPC Code698672091114
Weight0.9 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG135346611.991243Tb Woods0.711.99 @ 1
thumbzoombscsource.comAK281212.391In StockTB Wood's12.39 @ 1
Grainger5RHZ517.6511670TB WOOD'S17.65 @ 1

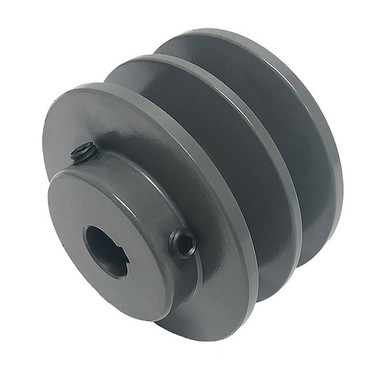

thumbzoomsimsupply.comZO-G135346620.161197Tb Woods20.16 @ 1
thumbzoomsustainablesupply.comC169304422.411In StockTB Wood's0.722.41 @ 1
thumbzoomNational Supply Network8222320723.491In StockTB Wood's23.49 @ 1
thumbzoomMRO Supply34567824.763In StockTB Woods24.76 @ 3
us.rs-online.com7167037928.031In StockTB Wood's (Altra)28.03 @ 1
thumbzoomRaptor SuppliesAE6FKL28.4477311In StockTB WOOD'S28.447731 @ 1
motionindustries.com0073352333.411In StockTB Woods (Altra)33.41 @ 1
