- mpnAK2834
- brandname: TB Woods
- manufacturername: TB Woods

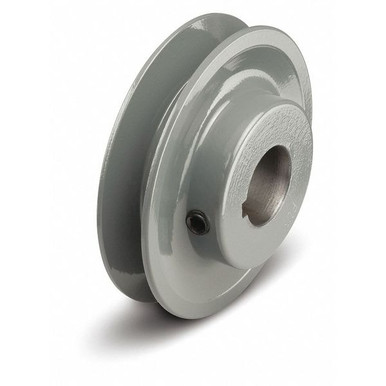

TB Woods AK2834 FHP Bored-to-size V-Belt Sheave, A Belt Section, 1 Groove, 3/4" Bore, Cast Iron, 2.85" OD, 8780 max rpm
- Brand: TB Woods
- PartNumber: AK2834
- Model: 698672091138
- Color: Grey
- Size: 8780 max rpm
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: TB Woods
- Label: TB Woods
Attributes
| Key | Value |
|---|
| 3L Belt Pitch Dia. | 2.26 in |
| 3L Pitch Diameter | 2.51 in |
| 3V Pitch Diameter | Not Applicable |
| 3VX Pitch Diameter | Not Applicable |
| 4L Pitch Diameter | 2.85 in |
| 4L, A, or AX Belt Pitch. | 2.6 in |
| 5V Pitch Diameter | Not Applicable |
| 5VX Pitch Diameter | Not Applicable |
| A Pitch Diameter | 2.85 in |
| AX Pitch Diameter | 2.85 in |
| B Pitch Diameter | Not Applicable |
| Belt section | A-4L-3L |
| Belt Section Size | 3L ; 4L ; A |
| Bore Diameter | 3/4 in |
| Bore type | Finished with keyway |
| Bore Type | Fixed |
| Bore-to-size bore diame. | 0.75 |
| Bore-to-size keyseat | 3/16 in x 3/32 in |
| Brand | Tb Woods |
| Bushing Required | None |
| BX Pitch Diameter | Not Applicable |
| C Pitch Diameter | Not Applicable |
| Color | Grey |
| Component WR2 (lbs ft2) | 0.00 |
| Construction | web |
| Current Stock | 197 |
| CX Pitch Diameter | Not Applicable |
| Datum diameter | 2.6 |
| Dimension | 0.44 |
| Face width | 0.66 |
| Face Width | 0.66 in |
| Face width (in) | 0.66 |
| Fits Shaft Dia. | 3/4 in |
| For Belt Section (broad. | 3L, 4L, A, or AX |
| For Belt Trade Size | 3L, 4L, A, AX |
| For V-Belt Section | 3L, 4L, A, AX |
| For V-Belt Type | Classical, Cogged |
| Groove cross section se. | A |
| Hub location | -0.44 |
| Hub location (in) | -0.44 |
| Hub Projection | 0.44 in |
| Hub Type | One Side |
| I.D. | 2.48 |
| Includes | Set Screw |
| Industry Number | AK2834 |
| Inertia WR? | 1 |
| Inside diameter (in) | 2.48 |
| International Shipping | No |
| Item | Standard V-Belt Pulley |
| Keyway | Yes |
| Keyway Depth | 3/32 in |
| Keyway Size | 0.187" x 0.093" |
| Keyway Size Type | 0.187 in x 0.093 in |
| Keyway Width | 3/16 in |
| Length through Bore | 15/16 in |
| Material | Cast Iron |
| Material Fabrication | Cast |
| Material type | CI |
| Max RPM | 8780 |
| Maximum Bore Diameter | 1 in |
| Mpn | AK2834 |
| Number of grooves | 1 |
| Number of Grooves | 1 |
| Number of Steps | 1 |
| O.D. | 2.85 |
| Outer Diameter | 2.85 in |
| Outside Diameter | 2.85 in |
| Outside diameter (in) | 2.85 |
| Overall Width | 1 1/8 in |
| Pitch Diameter | 2.85 in |
| Pitch diameter | 2.85 |
| Pitch Diameter for V-Be. | 3L: 2.51 in / 4L: 2.85 . |
| Pulley Bore Dia. | 3/4 in |
| Pulley Bore Type | Fixed Bore |
| Pulley Construction | Webbed |
| Pulley Material | Cast Iron |
| Pulley Outside Dia. | 2.85 in |
| Pulley Type | Standard V-Belt Pulley |
| RPM upper limit | 8780 |
| Series | FHP AK Series |
| Set Screw Included | Yes |
| SKU | ZO-G2078727 |
| Standards | ISO 9001:2015 |
| SubCategory | Power Transmission |
| UPC | 698672091138 |
| UPC Code | 698672091138 |
| Weight | 0.9 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G2078727 | 12.55 | 1 | 257 | | Tb Woods | 0.64 | 12.55 @ 1 |
 | bscsource.com | AK2834 | 12.89 | 1 | In Stock | | TB Wood's | | 12.89 @ 1 |
| grainger.ca | WWG5RHZ6 | 12.94112098 | 1 | In Stock | | TB WOOD'S | 0.64 | 12.94112098 @ 1 |
 | simsupply.com | ZO-G2078727 | 20.82 | 1 | 197 | | Tb Woods | | 20.82 @ 1 |
 | sustainablesupply.com | C1693045 | 23.46 | 1 | In Stock | | TB Wood's | 0.64 | 23.46 @ 1 |
 | National Supply Network | 82223215 | 23.55 | 1 | In Stock | | TB Wood's | | 23.55 @ 1 |
| AmazonSC | B01BGWX9QC | 24.13 | 1 | In Stock | | TB Woods | | 24.13 @ 1 |
 | MRO Supply | 345680 | 25.89 | 3 | In Stock | | TB Woods | | 25.89 @ 3 |
 | Raptor Supplies | AE6FKM | 28.447731 | 1 | In Stock | | TB WOOD'S | | 28.447731 @ 1 |
| us.rs-online.com | 71670380 | 29.31 | 1 | In Stock | | TB Wood's (Altra) | | 29.31 @ 1 |
